Description
Features of AIMPOINT Duty RDS 2 MOA Red Dot Sight 200759
- 2 MOA red dot for precision and fast target acquisition
- Advanced optical lenses for enhanced light transmission and ultimate dot clarity
- Windage and elevation adjustments are flush mounted and waterproof - eliminating the need for protective caps
- 10 brightness settings: 1 off position, 4 night vision compatible settings, and 6 daylight settings
- Hard anodized non-reflective surface
- One-piece Torsion Nut Mount

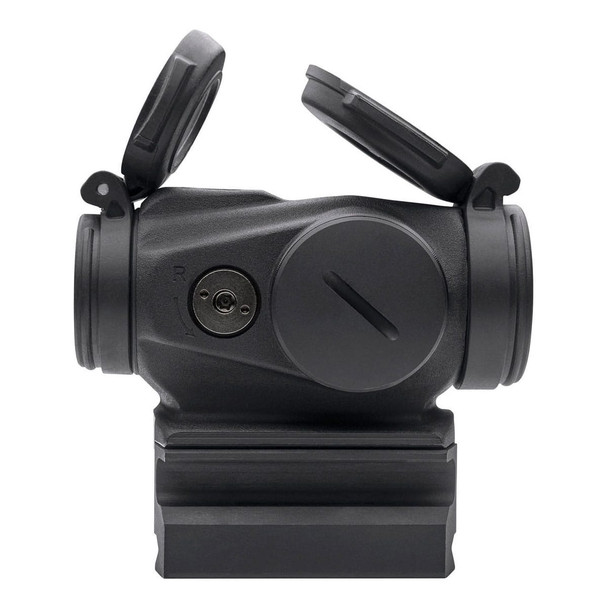

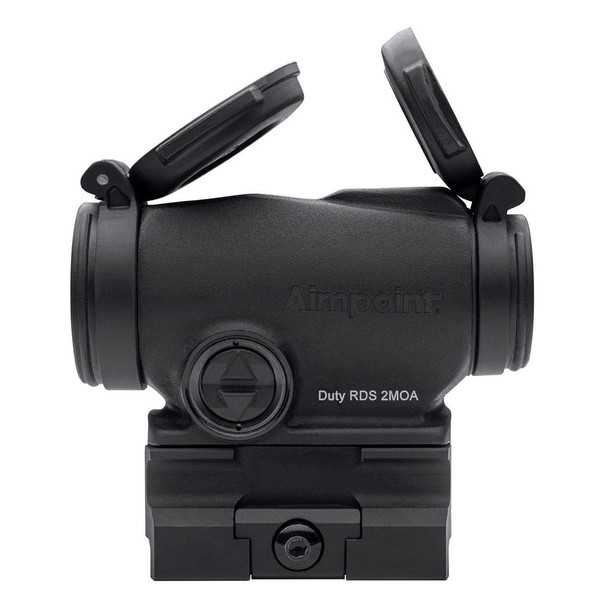

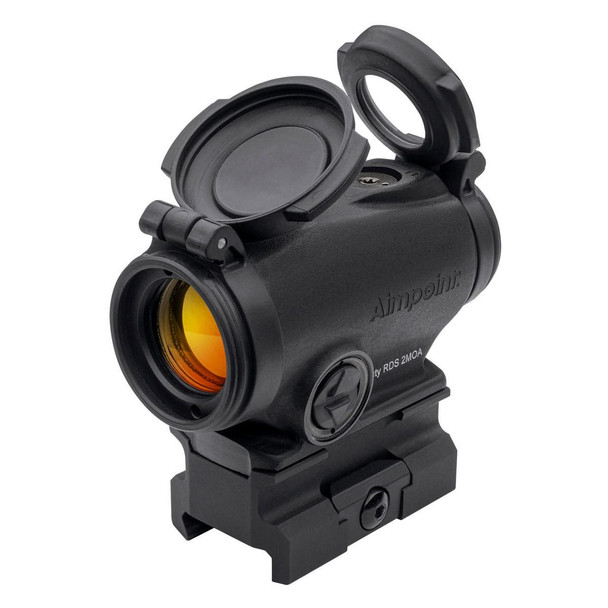

Product Info for AIMPOINT Duty RDS 2 MOA Red Dot Sight 200759
The AIMPOINT Duty RDS 2 MOA Red Dot Sight is the red dot sight solution the world has been waiting for - offering Aimpoint quality at a more accessible price point. This compact, high-grade reflex optic was designed to meet the demanding needs of the modern law enforcement officer.

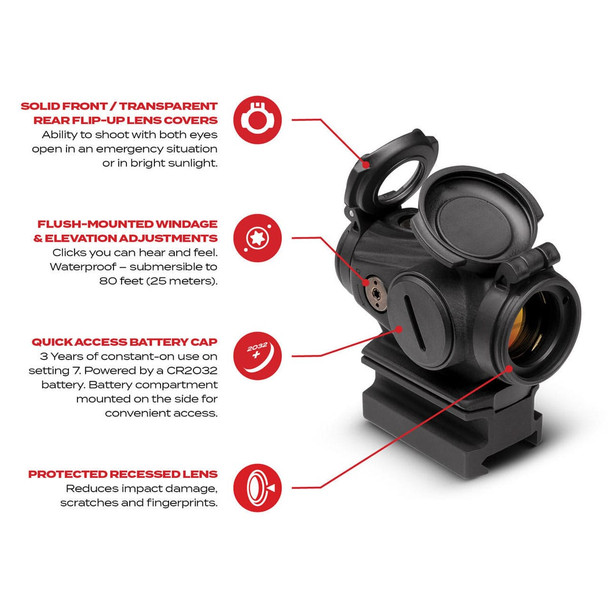

The Duty RDS (Red Dot Sight) offers a bright, crisp 2 MOA dot that's ideal for short to medium range target engagements. All new windage and elevation adjustments are flush mounted and waterproof, eliminating the need for protective caps. The turrets provide audible "clicks" when zeroing the optic. The dot brightness intensity switch is a digital keypad with intuitive buttons that can easily be manipulated while wearing gloves.

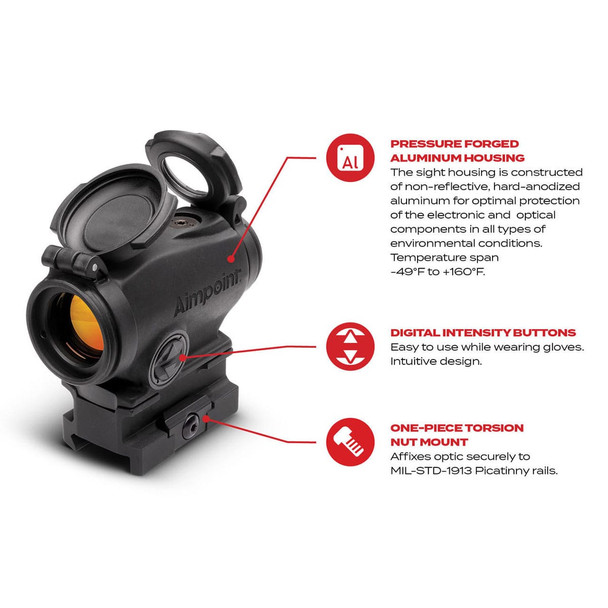

The pressure forged aluminum alloy housing provides durability against extreme abuse and drastic temperature changes. The sight is vibration and shock resistant and submersible up to 80 feet. It is powered by a single CR2032 battery and ACET technology provides over 3 years of constant-on use at daylight position 7 and even longer on the night vision settings.
The Duty RDS comes with a one-piece torsion nut mount and the optic features flip-up lens covers - the front is solid and the rear transparent. The sight is fully compatible with all generations of night vision devices.
GritrOutdoors is an authorized Aimpoint dealer
Details
Model: |
RDS |
Color: |
Black |
Finish: |
Anodized |
Activity: |
Shooting |
Base Fit: |
Picatinny |
Firearm Fit: |
Rifles |
Product Type: |
Red Dot Sights |
Reticle Size: |
2 MOA Dot |
Magnification: |
1x |
Specification
| Optical Specifications | |
| Operating Principle | Reflex Collimator sight with LED |
| Optical Magnification | 1x |
| Aiming Dot Size | 2 MOA |
| Optical Signature | No optical signature is visible at 10 meter distance, Front side, on appropriate settings with NVD |
| Dot Color | Peak Wavelength: 655 +/- 15 nm |
| NVD Compatible | Yes |
| Optical Coating | Anti-reflex, all surfaces and multi-layer NVD Compatible |
| Clear Aperture | 18 mm (.71 in) |
| Power Source Specifications | |
| Battery Type | 3V lithium battery, type CR2032 |
| Battery Life | Day time use: 3 years (30,000 h) of continuous use at pos. 7 |
| Power Intensity | 4 NVD and 6 Daylight |
| Physical Specifications | |
| Size (L x W x H) Sight Only, mm | 68 x 37 x 43 |
| Size (L x W x H) Sight Only, in | 27" x 1.5" x 1.7" |
| Size (L x W x H) Conf, mm | 80 x 37 x 67 |
| Size (L x W x H) Conf, in | 3.1" x 1.5" x 2.6" |
| Weight (Sight Only) | 108 g / 3.8 oz |
| Weight (Conf): | 160 g / 5.6 oz (lens covers, mount, & battery) |
| Housing Material | High Strength EN AW 6082 Aluminum |
| Housing Anodized | Yes |
| Material Mount & Spacer (Standard Conf) | High strength aluminum |
| Material Lens Cover | Thermoplastic Elastomer (TPE) |
| Height of Optical Axis | Sight and mount – 39 mm (1.2") Measured from top surface of Picatinny/Weaver rail |
| Adjustment | Range +/-1 m at 100 meters (+/-1 yds at 100 yds) in windage and elevation, 1 click = 15 mm at 100 meters = .5 in at 100 yds |
| Environmental Specifications | |
| Submersible | 25 m / 80 ft |
| Temperature Range Operation | -45°C to +71°C (-49°F to +160°F) |
| Temperature Range Storage | -51°C to +71°C (-60°F to +160°F) |
| Temperature Shock | Operable after a temperature shock between -45°C and +71°C (-49°F and +160°F) |
| Humidity | Operable during and after humidity Limits: RH: 95%, Temp: +20°C to +50°C (+68°F to +122°F), cyclic |
| Shock | Withstands shock. Limits: X axis: 500 g, 0.7 – 1.1 ms (3 shocks), Y-axis: 40g +/-4g, 11 +/-1ms (2 shocks) in each direction, Z-axis: 40g +/-4g, 11 +/-1ms, 2 shocks in each direction |
| Vibration | Withstands Vibration. Limits: Vibration, sinusoidal in a frequency range of 10-150 Hz Frequency: 10-30 Hz, +/-1.587 mm, Frequency: 30-150 Hz 5.75 g, 1 octave/min. Direction: X, Y and Z, Time: 30 min/direction |
| Chemical Resistance | Withstands occasional contamination by weapons cleaners, lubricants, fuels and insect repellents |
| Mounting Specifications | |
| Keyed Surface Mount | One-Piece Torsion Nut 39 mm Mount |
