Description
Features of BLACKMAGIC DESIGN ATEM 2 ME Switcher SWATEMSCN21ME2HD
- Supports 3G/HD-SDI at 10-Bit
- Up to 16-Multiview Monitoring Windows
- Frame Rate/Format Converter per Input
- 8 x Upstream, 2 x Downstream Keyer
- Color/Pattern Generators
- 20 x 3G-SDI Inputs, 12 x 3G-SDI Outputs
- Webcam Output via USB Type-C
- 48-Channel Audio Mixer
- Chroma/Luma Keyers
- Hardware or Software Mac/Windows Control
Product Info for BLACKMAGIC DESIGN ATEM 2 ME Switcher SWATEMSCN21ME2HD

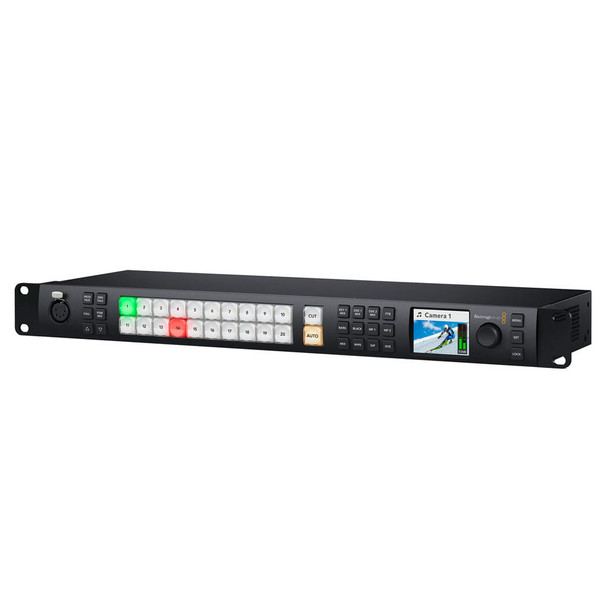

Powerful live event HD switching, supporting up to 20 individual 3G/HD-SDI inputs built into a 1 RU chassis, is at hand with the BLACKMAGIC DESIGN ATEM 2 M/E Constellation HD Switcher. Supporting 3G-SDI and HD-SDI signals, the switcher connects to a wide range of cameras and sources, delivering program output via 12 3G-SDI BNC outputs or a webcam output via USB Type-C.
In addition, the switcher has two multiview outputs with up to 16 routable windows that can display inputs, keyed video, graphics, and stills from the media pool, as well as the program output. Each input connects to a built-in Fairlight audio mixer supporting up to 48 channels of audio.
The switcher features a reference video input, and each input features a frame synchronizer, frame rate converter, and format converter. This allows you to mix and match cameras, formats, cameras that do not feature genlock, and video input from computer sources. Upstream and downstream keyers and effects are supported. All this is done live and in real time with no rendering required. You can control the switcher using the integrated front panel, optional Blackmagic ATEM panels, or via the downloadable control software.
GritrOutdoors is an authorized Blackmagic Design dealer
Details
Activity: |
Video Recording |
Color: |
Black |
Model: |
ATEM |
Product Type: |
Video Production & Editing Tools |
SALE: |
On Sale |
On Sale: |
On Sale Up to 10% off |
Specification
| Connections | |
| Total Video Inputs | 20 |
| Total Video Outputs | 12 |
| SDI Rates | 1.5G, 3G |
| Total Audio Inputs | 2 x balanced 1/4 inch Jack, 1 x 5 pin XLR Talkback |
| Total Audio Outputs | 1 x 5 pin XLR Talkback |
| SDI Audio Inputs | 2 Ch embedded audio on all SDI inputs |
| SDI Audio Outputs | 2 Ch embedded audio on all SDI outputs |
| Timecode Connections | None |
| Reference Input | Tri-Sync or Black Burst |
| Video Input Re-Sync | On all 20 inputs |
| Frame Rate and Format Converters | On all 20 inputs |
| SDI Aux Outputs | Any of the 12 SDI outputs |
| SDI Preview Outputs | Any of the 12 SDI outputs |
| SDI Program Outputs | Any of the 12 SDI outputs |
| Down Converted SDI Program Output | None |
| Webcam Output | 1 x USB-C supporting 720p or 1080p at PGM frame rate |
| Total Multi Views | 2 x 3G-SDI |
| Control Panel Connection | Ethernet. Direct connection between panel and chassis, or via network |
| Internal Timecode Generator | Yes |
| Talkback | RJ45 for 3rd party talkback systems |
| Tally Output | Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included) |
| Ethernet | Supports 10/100/1000 BASE-T |
| Computer Interface | 1 x USB-C supports USB 2.0 |
| Standards | |
| SD Video Standards | None |
| HD Video Standards | 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
| SDI Compliance | SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B |
| Video Sampling | 4:2:2 |
| Color Precision | 10-bit |
| Color Space | REC 709 |
| SDI Auto Switching | Automatically detects between 1.5G-SDI and level A or level B 3G-SDI |
| Product Specifics | |
| Upstream Keyers | 8 |
| Downstream Keyers | 2 |
| Advanced Chroma Keyers | 8 |
| SuperSource | 1 |
| Talkback Support | Yes |
| Mix Minus Support | Yes |
| Linear/Luma Keyers | 11 |
| Total Number of Layers | 15 |
| Pattern Generators | 11 |
| Color Generators | 2 |
| Control Panel | Front fascia emergency switching, software or optional hardware panel |
| Routable Windows | 32 |
| Tally | Red for program and green for preview indication |
| Windows Source Labels | Yes |
| Multi View Monitoring | |
| Multi View Monitoring | 2 x multi view configurable to 16, 13, 10, 7 or 4 up view. Includes monitoring of Program, Preview, Inputs, Media Players, DSK, Clean Feed with optional labels and audio meters |
| Multi View Video Standard | HD |
| Display Minimum Resolution | 1366 x 768 |
| Media Player | |
| Media Players | 2 |
| Channels | Fill and key for each Media Player |
| Media Pool Still Image Capacity | 40 |
| Media Pool Clip Capacity | 2 x up to 1080p60 |
| Media Player Clip Length in 720 HD | 800 frame |
| Media Player Clip Length in 1080 HD | 400 frames |
| Media Pool Still Image Format | PNG, TGA, BMP, GIF, JPEG and TIFF |
| Media Pool Video File Format | TGA Sequence |
| Media Pool Audio File Format | WAV, MP3 and AIFF |
| Display | |
| Front panel | Built in 2.2 inch LCD monitor for video, 10 LED buttons for setup and emergency switching, 4 source buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button |
| Processing | |
| Audio Mixer | 48 Channel mixer Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter |
| Down Conversion | None |
| Software | |
| Control Panel Included | ATEM Software Control Panel included free for Mac 11.11 Big Sur, Mac 12 Monterey or later and Windows 10 or 11 |
| Software Updates | Using USB or Ethernet connection directly connected to Mac OS or Windows computers. Includes ATEM Setup Utility |
| Configuration | Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB to chassis |
| Power Requirements | |
| Power Supply | 1 x Internal 100 - 240 AC |
| Power Usage | 52W |
| Environmental Specifications | |
| Operating temperature | 0° to 40° C (32° to 104° F) |
| Storage temperature | -20° to 60° C (-4° to 140° F) |
| Relative Humidity | 0% to 90% non-condensing |
| Dimensions, in | 19" x 7.16" x 1.74" |
| Weight, lb | 6.57 |
| What's Included | |
| Include | ATEM 2 M/E Constellation HD Welcome wallet with QR code for software download |
