Description
Features of BLACKMAGIC DESIGN ATEM SDI Switcher SWATEMMXEP
- 4-Channel Live Stream 3G-SDI Switcher
- 2-Channel Digital Audio Mixer
- Media Player, Computer Input Support
- DVE Transition, Chroma/Luma Keyers
- USB Type-C Streaming/Webcam Output
- Input/Output up to 1080p60 10-Bit 4:2:2
- 2 x 3G-SDI Output, Ethernet ATEM Control
- Upstream and Downstream Keyers
- Color and Pattern Generators
Product Info for BLACKMAGIC DESIGN ATEM SDI Switcher SWATEMMXEP
Designed for multicamera live streaming to the internet or broadcast applications, the BLACKMAGIC DESIGN ATEM SDI Switcher provides gaming consoles, corporate computer streams, or HD cameras a four-input live-production switcher with an integrated control panel.

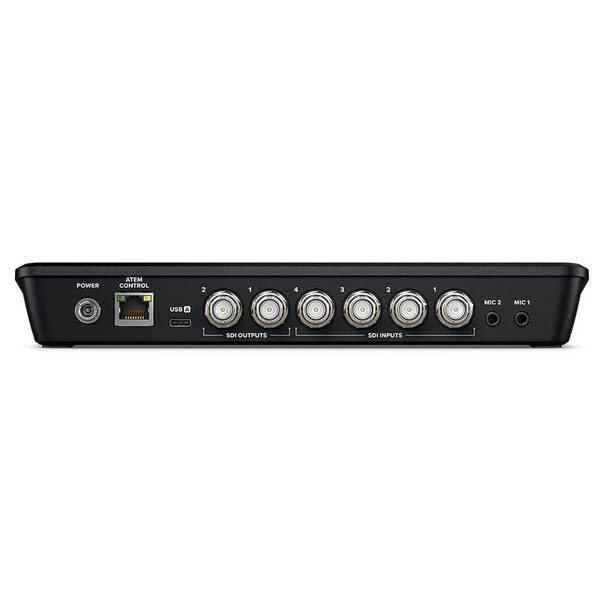

The four SDI inputs are available on the rear of the chassis and they input up to 1080p60 video. Two 3G-SDI outputs are useful for a projector or external monitor, a USB Type-C output for streaming up to 1080p60 video to a computer, and an RJ45, 10/100 Ethernet port for system management, remote control, and upgrades.

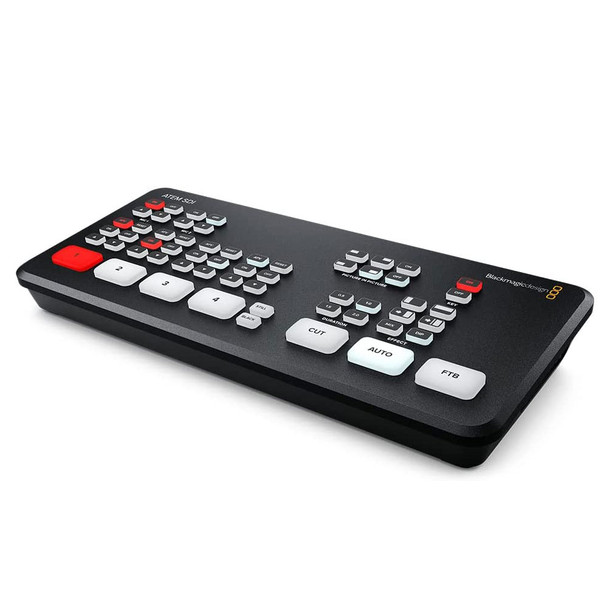

The control surface features easy-to-view, backlit control buttons to enable selecting camera inputs, controlling transitions, keyers, settings, and the DVE. The ATEM Mini features upstream and downstream keyers, an advanced chroma keyer, two linear/luma keyers, a DVE transition keyer, a pattern generator, and two color generators.
There is also media player support for fill and key images, which supports up to 20 stills in PNG, TGA, BMP, JPEG, and TIFF formats. The SDI output supports a minimum of 1366 x 768 resolution for monitoring your stream. It also supports the ATEM Software Control Panel via Ethernet, and it supports control and configuration using the ATEM SDI.
GritrOutdoors is an authorized Blackmagic Design dealer
Details
Activity: |
Video Recording |
Color: |
Black |
Model: |
ATEM |
Product Type: |
Video Production & Editing Tools |
SALE: |
On Sale |
On Sale: |
On Sale Up to 10% off |
Specification
| Connections | |
| Total Video Inputs | 4 |
| Total Outputs | 3 |
| Total Aux Outputs | 2 |
| Total Audio Inputs | 2 x 3.5mm stereo mini jack |
| Total Audio Outputs | None, embedded audio only |
| Timecode Connection | None |
| SDI Video Inputs | 4 x 3G-SDI, 10-bit HD switchable. 2 channel embedded audio |
| Video Input Re-Sync | On all 4 SDI inputs |
| Frame Rate and Format Converters | On all 4 SDI inputs |
| SDI Program Outputs | 2 |
| Ethernet | Ethernet supports 10/100/1000 BaseT software control, software updates and direct or network panel connection |
| Computer Interface | 1 x USB Type-C 2.0 for webcam out, software control, software updates and panel connection |
| Standards | |
| HD Video Input Standards | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 |
| HD Video Output Standards | 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
| Video Streaming Standards | 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
| Ultra HD Video Standards | None |
| Video Sampling | 4:2:2 YUV |
| Color Precision | 10-bit |
| Color Space | Rec 709 |
| Colorspace Conversion | Hardware based real time |
| Product Specifics | |
| Upstream Keyers | 1 |
| Downstream Keyers | 1 |
| Advanced Chroma Keyers | 1 |
| Linear/Luma Keyers | 2 |
| Transition Keyer | DVE only |
| Total Number of Layers | 5 |
| Pattern Generators | 1 |
| Color Generators | 2 |
| DVE With Borders and Drop Shadow | 1 |
| Interface | Minimum monitor resolution of 1366 x 768 |
| Audio | |
| Audio Mixer | 6 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control |
| Analog Input | Unbalanced stereo |
| Analog Input Delay | Up to 8 frames |
| Input Impedance | 1.8k |
| Max Input Level | +6dBV |
| Mic Plug In Power | Available on both 3.5mm mini jack connections |
| Media Player | |
| Media Players | 1 |
| Channels | Fill and key for each Media Player |
| Media Pool Still Image Capacity | 20 with fill and key |
| Media Pool Still Image Format | PNG, TGA, BMP, GIF, JPEG and TIFF |
| Control | |
| Control Panel | Built in control panel. Software control panel included. Supports optional hardware panel |
| Control Panel Connection | Ethernet supports 10/100 BaseT. Allows direct connection between panel and chassis, or via network. Also used for updating the software. ATEM SDI supports direct USB-C connection |
| Control Panel Compatibility | Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel and ATEM 2 M/E Broadcast Panel |
| Control Panel Included | ATEM Software Control Panel included free for Mac 11.0 Big Sur, Mac 12.0 Monterey or later and Windows 10 or 11 |
| Software | |
| Software Updates | Using USB or Ethernet connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility |
| Configuration | Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis |
| Power Requirements | |
| Power Supply | 1 x External 12V power supply |
| Power Usage | 18W |
| Environmental Specifications | |
| Operating temperature | 5° to 40° C (41° to 104° F) |
| Storage temperature | -10° to 60° C (14° to 140° F) |
| Relative Humidity | 0% to 90% non-condensing |
| Dimensions, in | 9.35" x 4.67" x 1.38" |
| Weight, oz | 23.9 |
| What's Included | |
| Include | ATEM SDI External 12V DC power supply with international socket adapters |
