Description
Features of BLACKMAGIC DESIGN Converter SDI to Audio CONVMCSAUD
- Auto SD/HD Switching
- With Power Supply
- 3GB/s Technology
Product Info for BLACKMAGIC DESIGN Converter SDI to Audio CONVMCSAUD

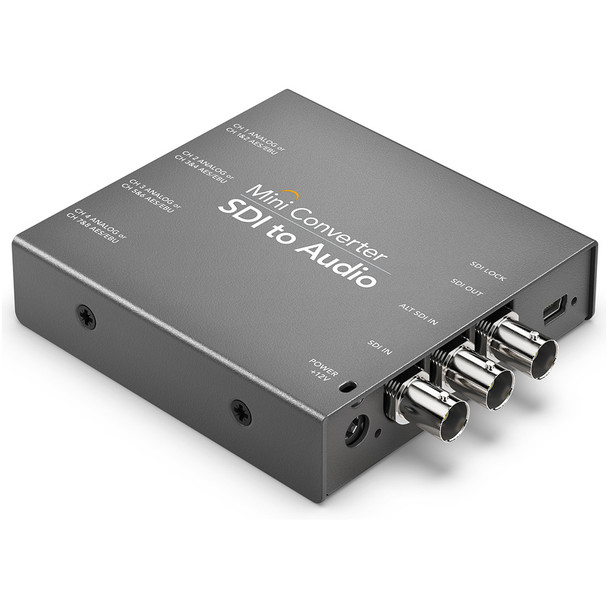

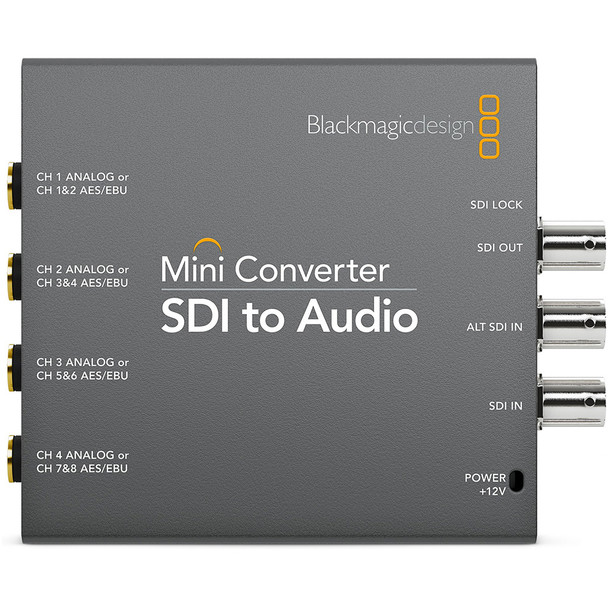

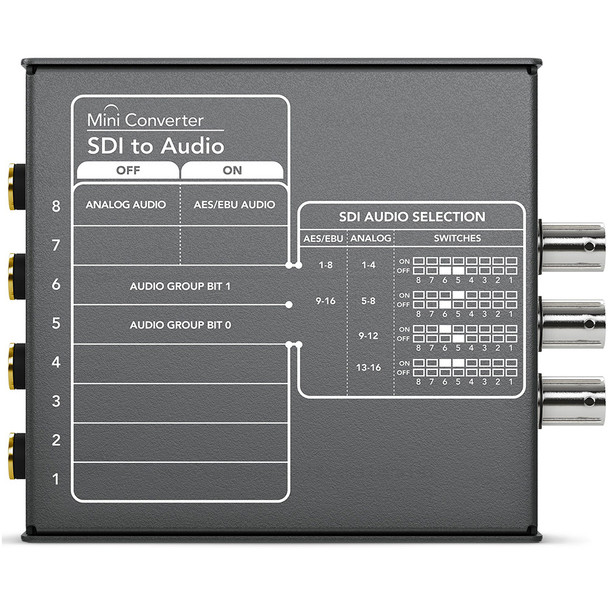

The Blackmagic Design CONVMCSAUD includes everything you need to de-embed 4 channels of analog audio or 8 channels of AES/EBU digital audio from any SDI video connection. Now you can easily access the audio in any SDI video connection for output to audio equipment such as audio mixers, analog broadcast decks, audio monitors and more!
Mini Converters instantly switch between standard definition and high definition video formats and changeover is automatic when the video input changes. A huge range of video standards are supported including, NTSC, PAL, 1080i/59.94, 1080i/50, 1080psf/23.98, 1080psf/24, 720p/59.94 and 720p/50 formats, plus new formats can be added via USB.
Only Mini Converters include the 3 Gb/s SDI technology and upgrades can be loaded via the built in USB connection for future video format compatibility. 3 Gb/s SDI is also fully compatible with all your standard definition and high definition SDI equipment.
Unlike other converters, a universal power supply is included with international socket adapters for all countries. This lets you take Mini Converters with you to any location worldwide, and plug directly into the local power sockets. To stop power accidentally being disconnected, a cable tie point is included to lock down the power connection tight!
GritrOutdoors is an authorized Blackmagic Design dealer
Details
Activity: |
Video Recording |
Color: |
Black |
Model: |
Mini |
Product Type: |
Video Production & Editing Tools |
Specification
| SDI Input | SDI: Switchable between SD, HD and 3 Gb/s SDI SDI Redundant: Automatically switches over if main SDI input is lost |
| Analog Audio | 4 channels of professional balanced analog audio with standard 1/4 inch jack connections |
| AES/EBU | 8 channels of professional balanced digital with standard 1/4 inch jack connections |
| Format | 625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60 |
| Sampling | 4:2:2 |
| Power Requirements | 12VDC (includes power supply) |
