Description
Features of BLACKMAGIC DESIGN Television Studio SWATEMTVSTC-HD08ISO
- 8-Input 3G-SDI 1080p60 Live Switcher
- Record Each Input to Separate Files
- Streaming Support, USB & M.2 Recording
- Up to 16 Multiview Output Sources
- Customizable Electronic LCDs
- Redesigned Buttons and Layout
- Supports Remote Internet Cameras
- Blackmagic Cloud Integration
- Audio Mixing, Transitions, T-Bar, AUX
- Camera Control, Timecode, Talkback
Product Info for BLACKMAGIC DESIGN Television Studio SWATEMTVSTC-HD08ISO

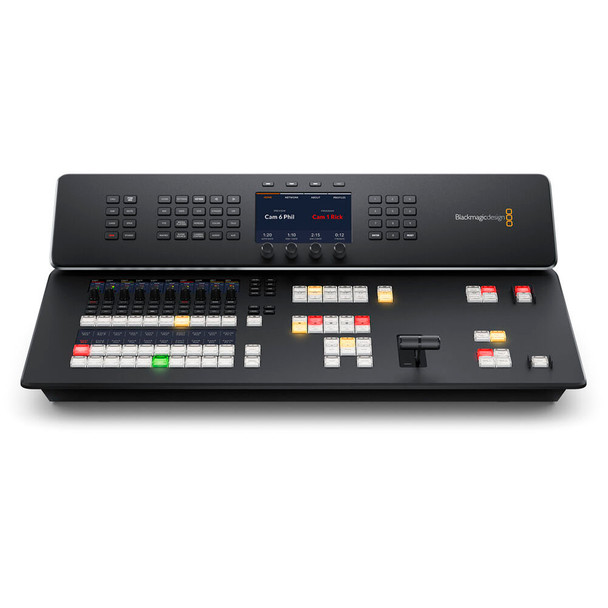

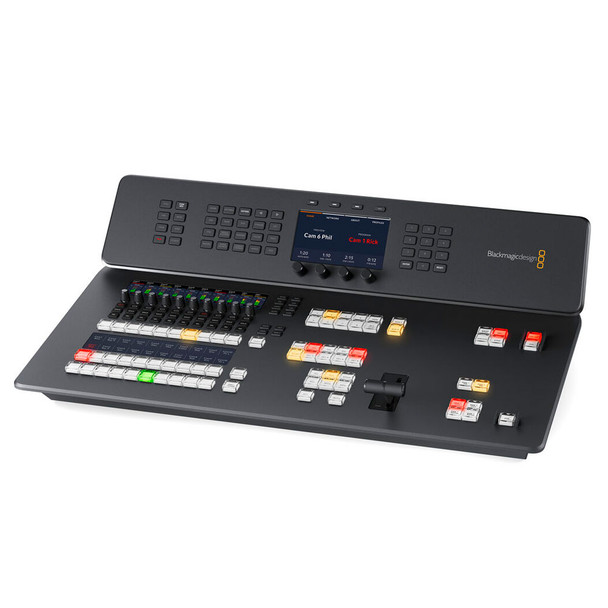

The BLACKMAGIC DESIGN ATEM Television Studio HD8 ISO Production Switcher includes all the features of ATEM Television Studio HD8 plus adds ISO recording of all 8 inputs to separate video files. Also supports up to 8 remote cameras via local Ethernet or globally via the internet. Remote cameras even support tally and camera control!
GritrOutdoors is an authorized Blackmagic Design dealer
Details
Activity: |
Video Recording |
Color: |
Black |
Model: |
ATEM |
Product Type: |
Video Production & Editing Tools |
SALE: |
On Sale |
On Sale: |
On Sale Up to 10% off |
Specification
| Connections | |
| SDI Video Inputs | 8 |
| SDI Video Outputs | 12 |
| SDI Rates | 1.5G, 3G |
| HDMI Video Outputs | 1 |
| Total Audio Inputs | 2 x XLR balanced analog audio, 1 x BNC 32 Ch MADI digital audio, 2 x RCA stereo analog audio, 1 x 5 pin XLR Talkback |
| Total Audio Outputs | 4 x 1/4 inch Jack analog audio, 1 x BNC 64 Ch MADI digital audio, up to 50 active, 1 x 5 pin XLR Talkback |
| SDI Audio Inputs | 4 Ch embedded audio on all SDI inputs |
| SDI Audio Outputs | 2 Ch embedded audio on all SDI outputs |
| Timecode Connections | 1 x BNC In, 1 x BNC Out |
| Reference Input | 1 x BNC In, 1 x BNC Out. Tri-Sync or Black Burst |
| Video Input Re-Sync | On all 8 inputs |
| Frame Rate and Format Converters | On all 8 inputs |
| SDI Aux Outputs | 2 |
| SDI Program Outputs | 1 |
| Webcam Output | 2 x USB-C supporting 720p or 1080p at PGM frame rate |
| Total Multi Views | 1 x 3G-SDI 1 x HDMI |
| Remote | RJ12 supports RS-422 |
| Control Panel Connection | Ethernet. Direct connection between panel and chassis, or via network |
| Internal Timecode Generator | Yes |
| Talkback | RJ45 for 3rd party talkback systems |
| Tally Output | Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included) |
| Ethernet | 4 x RJ45 with internet network switch. Supports 10/100/1000 BASE-T |
| Computer Interface | 2 x USB-C supports USB 2.0 for external drive recording, webcam out, software control, software updates and switcher connection |
| Standards | |
| SD Video Standards | None |
| HD Video Input Standards | 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
| SDI Compliance | SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B |
| Video Sampling | 4:2:2 |
| Color Precision | 10-bit |
| Color Space | REC 709 |
| SDI Auto Switching | Automatically detects between 1.5G-SDI and level A or level B 3G-SDI |
| Product Specifics | |
| Upstream Keyers | 4 |
| Downstream Keyers | 2 |
| Advanced Chroma Keyers | 4 |
| SuperSource | 1 |
| Linear/Luma Keyers | 7 |
| Transition Keyer (Stinger/DVE) | 1 Stinger, 1 DVE |
| Total Number of Layers | 8 |
| Pattern Generators | 7 |
| Color Generators | 2 |
| Control Panel | Integrated panel with full control of switching and settings |
| Routable Windows | 16 |
| Windows Source Labels | Yes |
| Tally | Red for program and green for preview indication |
| Talkback Support | Yes |
| Mix Minus Support | Yes |
| Streaming Sources | |
| Total Streaming Sources | Up to 8 |
| Streaming Source Format | RTMP video with audio over a local network or internet connection from compatible Blackmagic Design cameras outputting HyperDeck High, HyperDeck Medium, HyperDeck Low, Streaming High, Streaming Medium or Streaming Low quality setting |
| Streaming Source Setup | Mapped to inputs in ATEM Software Control Settings |
| Streaming | |
| Direct Streaming | Supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared internet connection over USB‑C |
| Recording | |
| Direct Recording Video and Audio | USB-C expansion port can record directly to external media |
| Video Recording | Program recorded as a H.264 .mp4 file at the streaming quality setting and at the ATEM video standard with AAC audio. SDI inputs recorded as separate H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio |
| Audio Recording | Audio inputs recorded as separate 24‑bit 48KHz .wav files. Includes 8 x SDI 2 channel embedded audio inputs, 4 x analog audio inputs and up to 32 channels of MADI digital audio |
| Switching | Program switching recorded as a DaVinci Resolve project .drp file |
| Media | All media pool stills and clips saved to a separate media folder |
| Media Format | Supports media formatted ExFAT (Windows/Mac). APFS or HFS+ (Mac) |
| Multi View Monitoring | |
| Multi View Monitoring | 1 x multi view via SDI and HDMI configurable to 16, 13, 10, 7 or 4 up views. Includes monitoring of Program, Preview, Inputs, Media Players, DSKs, SuperSource, Clean Feed with optional labels and audio meters |
| Multi View Video Standard | HD |
| Display Minimum Resolution | 1366 x 768 |
| Media Player | |
| Media Players | 2 |
| Channels | Fill and key for each media player |
| Media Pool Still Image Capacity | 20 |
| Media Pool Still Image Format | PNG, TGA, BMP, GIF, JPEG and TIFF |
| Media Pool Clip Capacity | 2 x up to 1080p60 |
| Media Player Clip Length in 720 HD | 400 frames |
| Media Player Clip Length in 1080 HD | 200 frames |
| Media Pool Video File Format | TGA sequence |
| Media Pool Audio File Format | WAV, MP3 and AIFF |
| Processing | |
| Audio Mixer | 58 Channel mixer. Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter |
| Camera Control | When used with most Blackmagic Design cameras, ATEM can control focus, iris and zoom of compatible lenses and camera settings including gain, white balance, tint, shutter, ND filter, color corrector, tally and record start/stop |
| Down Conversion | None |
| Software | |
| Control Panel Included | ATEM Software Control Panel included free for Mac 12.0 Monterey, Mac 13.0 Ventura or later, and Windows 10 or 11 |
| Software Updates | Using USB or Ethernet connection directly connected to Mac OS or Windows computers. Includes ATEM Setup Utility |
| Power Requirements | |
| Power Supply | 1 x Internal 100 - 240 AC 50/60Hz with IEC C14 socket. 1 x 4 pin XLR 12V DC In for external power supply or battery use |
| Power Usage | 100 W max |
| Environmental Specifications | |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 60° C (-4° to 140° F) |
| Relative Humidity | 0% to 90% non-condensing |
| Physical Specifications | |
| Dimensions, in | 23" x 14.8" x 6.35" |
| Weight, lb | 14.9 |
| What's Included | |
| Includes | ATEM Television Studio HD8 ISO Welcome wallet with QR code for software download |
