Description
Features of BLACKMAGIC DESIGN Teranex Converter CONVNTRMCBAUSDI
- Advanced High-Data Rate Embedder
- Embed via XLR, AES/EBU, RCA, or S/PDIF
- Supports up to Full 4K DCI 4096x2160p
- Ethernet Port for Remote Control or PoE
- Intelligent Thermal Heat Dissipation
- Embed Audio into up to 4K SDI Signals
- 12G-SDI Input and Output
- XLR Connections Switchable to AES/EBU
- Supports Optional LCD Smart Front Panel
- 3 Units 1U Rack-Mountable in 19" Rack
Product Info for BLACKMAGIC DESIGN Teranex Converter CONVNTRMCBAUSDI

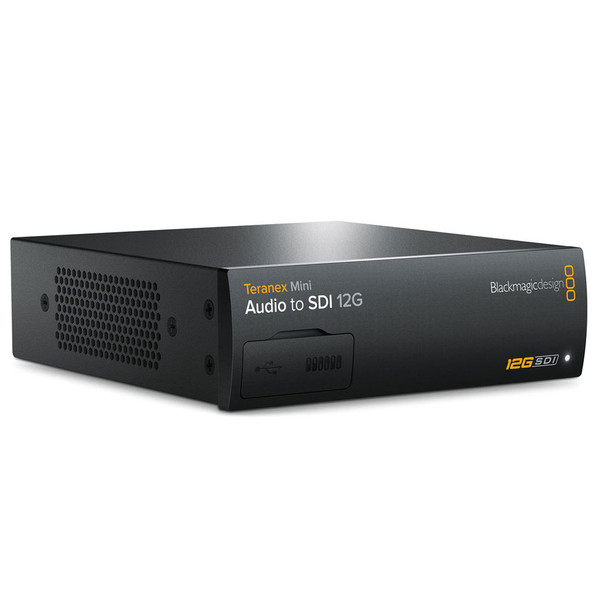

With the BLACKMAGIC DESIGN Teranex Mini Audio to SDI 12G Converter you can embed up to 2 channels of audio from balanced analog, optical or HiFi RCA, or embed up to or 4 channels of AES/EBU digital audio into any SD, HD, Ultra HD or DCI 4K SDI video connection! Take audio from devices such as audio mixers, Smartphones, Tablets, and analog decks and embed it into SDI video connections for use with SDI routers and decks.
GritrOutdoors is an authorized Blackmagic Design dealer
Details
Activity: |
Video Recording |
Color: |
Black |
Model: |
Teranex Mini |
Product Type: |
Video Production & Editing Tools |
Specification
| Connections | |
| SDI Video Input | 1 x 12G-SDI SD/HD/2K/4K auto switching |
| SDI Video Outputs | 1 x 12G-SDI loop output |
| HDMI Video Outputs | 1 x HDMI 2.0 type A connector with support for 2160p60 |
| Analog Audio Inputs | 2 channels professional balanced analog audio via XLR connectors, or 2 channel unbalanced analog line level via RCA connectors. Right XLR can be configured for timecode input |
| Digital Audio Inputs | 4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for timecode input |
| Embedded Audio Support | 16 channels |
| Optical Audio Input | S/PDIF Signal with TOSLINK Connector |
| Multi Rate Support | Automatic switching between SD/HD/2K and 4K |
| Updates and Configuration | USB or Ethernet |
| Reclocking | Yes |
| Standards | |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 |
| 2K Video Standards | 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 |
| 4K Video Standards | 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10 |
| SDI Video Rates | SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI |
| SDI Video Sampling | 4:2:2 and 4:4:4 |
| SDI Audio Sampling | Television standard sample rate of 48 kHz and 24-bit |
| SDI Auto Switching | Automatically selects between SD, HD, 3G, 6G and 12G‑SDI |
| SDI Color Precision | YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K |
| SDI Color Space | REC 601, REC 709 |
| Software | |
| Software Control | Mac and Windows software upgrade via USB or Ethernet |
| Internal Software Upgrade | Via included updater application |
| Settings Control | |
| Basic Settings Control | Mini Switches, USB and Ethernet via free software utility |
| Optional Front Panel Control | Front mounted Smart Panel with LCD, rotary knob and six settings buttons |
| Power Requirements | |
| Power Supply | 1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input |
| Power Over Ethernet | Can be powered via 48V DC using PoE+ (power over ethernet) |
| Power Consumption | 16 Watts |
| Operational Voltage Range | 100 - 240V AC |
| Environmental Specifications | |
| Operating Temperature | 0° to 40°C (32° to 104°F) |
| Storage Temperature | -20° to 60°C (-4° to 140°F) |
| Relative Humidity | 0% to 90% non‑condensing |
| Dimensions | 5.51" x 1.75" x 6.69" |
| Weight, lbs | 1.32 |
| What's Included | |
| Includes | Teranex Mini Audio to SDI 12G Welcome wallet with QR code for software download |
