Description
Features of BLACKMAGIC DESIGN Teranex Converter CONVNTRMDAQDSDI
- Quad-Link 12G-SDI Input
- Supports SD, HD, UHD 4K & DCI 4K Signals
- 24-bit, 48 kHz Audio
- USB 2.0 Port for Firmware Updates
- 2 Single-Link 12G-SDI Outputs
- Automatic Input Signal Detection
- Control via DIP Switches or Software
- Requires IEC C14 Power Cable
Product Info for BLACKMAGIC DESIGN Teranex Converter CONVNTRMDAQDSDI

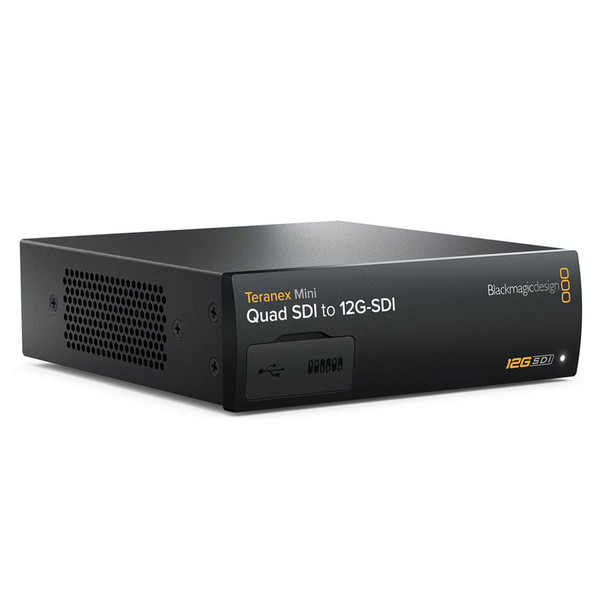

Connect Quad-Link SDI sources to 12G-SDI equipment with the BLACKMAGIC DESIGN Teranex Mini Quad SDI to 12G-SDI Converter. Housed in a low-profile sleek black enclosure, this Teranex Mini Converter fits in studio and post-production workflows without disrupting the decor.
While the functionality of this unit may be obvious, connecting the unit via Ethernet enables you to use the included control software to complete control and make adjustments to fit your needs. As an additional option, a front panel controller with a built-in confidence monitor can be purchased separately. DIP switch controls are also available behind the front panel flap.
GritrOutdoors is an authorized Blackmagic Design dealer
Details
Activity: |
Video Recording |
Color: |
Black |
Model: |
Teranex Mini |
Product Type: |
Video Production & Editing Tools |
SALE: |
On Sale |
On Sale: |
On Sale 20-30% off |
Specification
| Connections | |
| SDI Video Input | 4 x 12G-SDI SD/HD/2K/4K auto switching |
| SDI Video Outputs | 2 x 12G‑SDI |
| Multi Rate Support | Automatic switching between SD/HD/2K and 4K |
| Embedded Audio Support | 16 channels |
| Updates and Configuration | USB or Ethernet |
| Reclocking | Yes | Standards |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 |
| 2K Video Standards | 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 |
| 4K Video Standards | 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10 |
| SDI Video Rates | SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI |
| SDI Video Sampling | 4:2:2 and 4:4:4 |
| SDI Audio Sampling | Television standard sample rate of 48 kHz and 24-bit |
| SDI Color Space | YUV & RGB |
| Software | |
| Software Control | Mac and Windows software upgrade via USB or Ethernet |
| Internal Software Upgrade | Via included updater application |
| Settings Control | |
| Basic Settings Control | Mini Switches, USB and Ethernet via free software utility |
| Optional Front Panel Control | Front mounted Smart Panel with LCD, rotary knob and six settings buttons |
| Power Requirements | |
| Power Supply | 1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input |
| Power Over Ethernet | Can be powered via 48V DC using PoE+ (power over ethernet) |
| Power Consumption | 16 Watts |
| Operational Voltage Range | 100 - 240V AC |
| Environmental Specifications | |
| Operating Temperature | 0° to 40°C (32° to 104°F) |
| Storage Temperature | -20° to 60°C (-4° to 140°F) |
| Relative Humidity | 0% to 90% non‑condensing |
| Dimensions | 5.51" x 1.75" x 6.69" |
| Weight, lbs | 1.28 |
| What's Included | |
| Includes | Teranex Mini Quad SDI to 12G‑SDI Welcome wallet with QR code for software download |
