Description
Features of INFRATECH Duplex Stack Switch
- Compatible with all Infratech Dual Element Heaters
- Use this switch to control CD/WD-Series heaters
- In-Wall Installation
- For Exposed Outdoor Areas
- (2) Two Single Pole Single Throw (DPST) Switches, total of 4
- 20 Amps Max per Pole
- Made in the USA
Product Info for INFRATECH Duplex Stack Switch

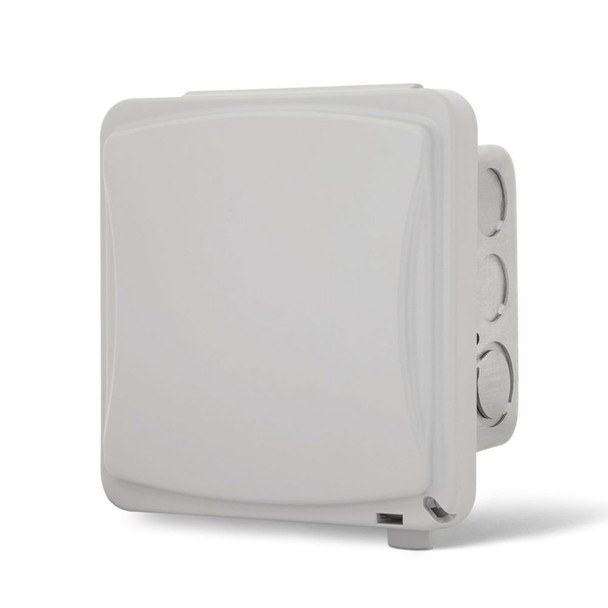

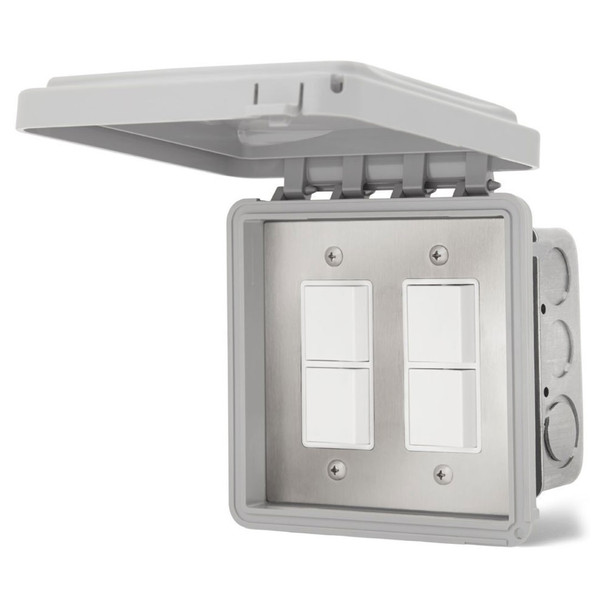

The INFRATECH Duplex Stack Switch Flush Mount Controller with Weatherproof Cover can be used to control your CD Series or WD Series heater by simple controlling on/off each element independently, giving you a High/Low and ON/OFF setting. Use this switch to control dual element heaters.

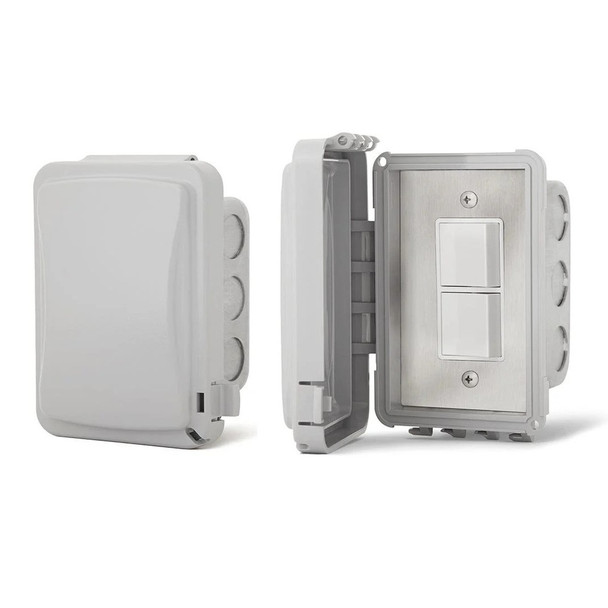

This switch comes with a weatherproof cover, stainless steel faceplate and gang box for in-wall exposed exterior locations.
GritrOutdoors is an authorized Infratech dealer
Details
Activity: |
Gardening |
Product Type: |
Switches |
Specification
| SKU | 14-4315 | 14-4310 |
| Gang Box (H x W x D), in | 4 3/4" x 4 3/4" x 2 1/4" | 4" x 2 1/8" x 1 7/8" |
| SS Plate (H x W), in | 4 3/8" x 4 3/8" | 4 3/8" x 2 5/8" |
| Weatherproof Cover (H x W x D), in | 5 1/2" x 5 1/2" x 1 1/4" (Tab on covers extends 1/4") | 5 1/2" h x 3 3/4" w x 1 1/4" d (Tab on covers extends 1/4") |
| Range | 120/277 VAC | 120/277 VAC |
| Recommended not to exceed | 208/220 VAC = 3000 Watts Max per Switch 240/277 VAC = 4000 Watt Max per Switch |
208/220 VAC = 3000 Watts Max per Switch 240/277 VAC = 4000 Watt Max per Switch |
