Description
Features of MAGPUL MBUS Rear Sight MAG248-BLK
- Impact resistant polymer construction provides light weight and resists operational abuse
- Spring-loaded flip up sight easily activated from either side or by pressing the top
- Detent and spring pressure keeps sight erect but allows for unobstructed folding under impact, etc.
- Clamps to MIL-STD-1913 Picatinny/STANAG 4694 receiver rail and provides the same height-over-bore as standard A2 irons
- Protective wings shield the dual, same plane flip apertures
- Sight can still be folded with either large or small aperture in position
- Detent knob easily and positively adjusts windage
Product Info for MAGPUL MBUS Rear Sight MAG248-BLK

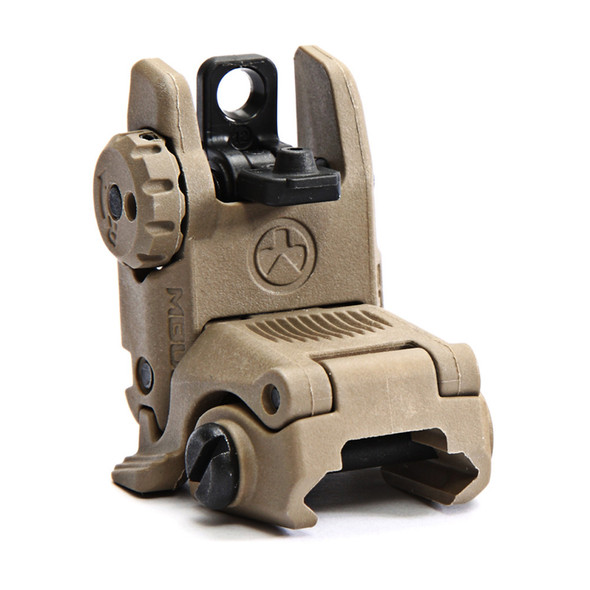

The Magpul MBUS (Magpul Back-Up Sight) is a low-cost, color injection molded, folding back-up sight. The dual aperture MBUS Rear Sight is adjustable for windage and fits most 1913 Picatinny rail equipped weapons, but is specifically tailored to the AR15 / M16 platform.
Made in the USA.
GritrOutdoors is an authorized Magpul dealer
Details
Activity: |
Shooting |
Color: |
Black |
Firearm Fit: |
Rifles |
Model: |
MBUS |
Product Type: |
Folding Sights |
Department: |
Optics |
Specification
| Sight | Folding Back-Up |
| Position | Rear |
| Windage Adjustment | approx 0.7 MOA (0.754"/100m) per click with a 14.5" sight radius, approx 0.5 MOA (0.547"/100m) per click with a 20" sight radius |
| Height Above Rail, Stowed, in | approx 0.51" |
| Length, Deployed, in | 1.5" |
| Length, Stowed, in | 2.6" |
| Center of aperture to top of rail, in | 1.42" |
| Weight (w/ hardware), oz | 1.3 |
