Description
Damaged package
Features of BLACKMAGIC DESIGN ATEM 2 M/E Production Studio 4K (SWATEMPSW2ME4K)
- Supports NTSC/PAL/HD/UltraHD 4K @ 10-bit
- 20 x 6G-SDI & 1 x HDMI Inputs
- 10 x Built-In Frame Synchronizers
- Program Outputs in SD/HD/4K HD
- 22-Input Audio Mixer
- Supports 4K Resolution Over SDI or HDMI
- Tri-Sync/Blackburst Ref. Sync Input
- Two Independent Multi-View Outputs
- 4 Upstream & 2 Downstream Keyers
- Hardware or Software Mac/PC Control
Product Info for BLACKMAGIC DESIGN ATEM 2 M/E Production Studio 4K (SWATEMPSW2ME4K)
The BLACKMAGIC DESIGN ATEM 2 M/E Production Studio 4K is advanced technology high frame rate Ultra HD live production switcher. It includes 20 x 12G-SDI re-synchronized inputs for all formats from 720p, 1080i, 1080p up to 2160p60. It has a large media memory, 4 media players, 2 Ultra HD resolution multi viewers, DVE, SuperSource, 6 keyers, audio mixer, 6 aux outputs, built in camera control and included software control panel. Supports optional Blackmagic hardware control panels. The ATEM 2 M/E Broadcast Studio 4K is perfect for fast action live sports coverage because it can handle high frame rates in both HD and Ultra HD and all connections support 12G-SDI for advanced SDI but with the full compatibility to plug into all your HD-SDI, 3G-SDI and 6G-SDI equipment.

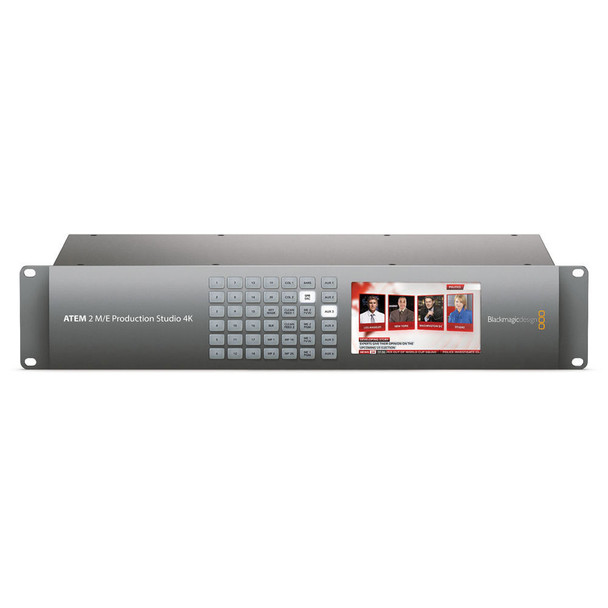

ATEM Production Studio 4K switchers feature an machined aluminum front panel with dedicated buttons to let you switch auxiliary outputs. You can use the built in video screen to monitor auxiliary outputs or as technical monitoring to help during set up. You get the highest quality video and audio connections that switch virtually all SD, 720p HD, 1080i HD, 1080p HD and Ultra HD formats, plus built in multi voltage power supplies.
ATEM live production switchers feature full switcher control from any laptop or desktop computer with the included ATEM software control panel for both Mac and Windows. You can add a hardware based ATEM 1 M/E or 2 M/E Broadcast Panel featuring the highest quality buttons, knobs and faders for even faster switching. You also get an SDK for custom control. Develop your own custom control with the included SDK for Mac and Windows.
GritrOutdoors.com is an authorized Blackmagic Design dealer
Details
Activity: |
Video Recording |
Color: |
Gray |
Model: |
ATEM |
Product Type: |
Video Production & Editing Tools |
Specification
| Connections | |
| Total Video Inputs | 21 with 20 active |
| Total Video Outputs | 16 |
| Total Aux Outputs | 6 |
| SDI Rates | 270Mb, 1.5G, 3G, 6G |
| Total Audio Inputs | 2 x XLR. 2 x RCA |
| Total Audio Outputs | 2 x XLR Program 2 x XLR Monitor |
| Timecode Connections | 1 x XLR in and 1 x XLR out |
| Reference Input | Tri-Sync or Black Burst |
| Video Input Re-Sync | On all 20 inputs |
| SDI Video Inputs | 20 x 10-bit SD/HD/Ultra HD 4K switchable. 2 channel embedded audio |
| HDMI Video Input | 1 x HDMI type A. 10-bit SD/HD/Ultra HD 4K switchable. 2 channel embedded audio |
| SDI Audio Outputs | 2 Ch embedded into SDI output on all outputs |
| SDI Program Outputs | 3 x 10-bit SD/HD/Ultra HD 4K switchable |
| HDMI Program Outputs | 1 x HDMI type A, 10-bit SD/HD/Ultra HD 4K switchable |
| Down Converted SDI Program Outputs | 1 x 10-bit (Ultra HD 4K to HD) |
| SDI Preview Outputs | 1 x 10-bit SD/HD/Ultra HD 4K switchable |
| Total Multi Views | 2 |
| SDI Multi View Outputs | 2 |
| HDMI Multi View Outputs | 2 |
| Control Panel Connection | Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network |
| Tally Output | Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included.) |
| Computer Interface | 1 x USB 2.0 port |
| Standards | |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p50, 1080p59.94 1080i50, 1080i59.94 |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97 |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 424M |
| Video Sampling | 4:2:2 |
| Color Precision | 10-bit |
| Color Space | REC 601, REC 709, REC 2020 |
| HDMI Input Resolutions for Computers | 720 x 480i 59.94Hz, 720 x 576i 50Hz, 1280 x 720 59.94Hz, 1280 x 720 50Hz, 1920 x 1080 50Hz, 1920 x 1080 59.94Hz, 3840 x 2160 23.98Hz, 3840 x 2160 24Hz, 3840 x 2160 25Hz, 3840 x 2160 29.97Hz |
| Product Specifics | |
| Upstream Keyers | 4 with Chroma/Linear/Luma key |
| Downstream Keyers | 2 |
| Chroma Keyers | 4 |
| Talkback Support | None |
| Mix Minus Support | None |
| Linear/Luma Keyers | 7 |
| Transition Keyer (Stinger/DVE) | 1 Stinger, 1 DVE |
| Total Number of Layers | 13 |
| Pattern Generators | 8 |
| Color Generators | 2 |
| DVE with 3D Borders & Drop Shadow | 1 |
| Control Panel | Software or optional hardware panel |
| Media Player | |
| Media Players | 2 |
| Channels | Fill and key for each Media Player |
| Media Pool Still Image Capacity | 32 with fill and key |
| Media Pool Clip Capacity | 2 with fill and key |
| Media Player Clip Length in NTSC/PAL | 3600 frame |
| Media Player Clip Length in 720p | 1600 frames |
| Media Player Clip Length in 1080 | 720 frames |
| Media Player Clip Length in Ultra HD 4K | 180 frames |
| Media Pool Still Image Format | PNG, TGA, BMP, GIF, JPEG and TIFF |
| Media Pool Video File Format | TGA Sequence |
| Media Pool Audio File Format | WAV, MP3 and AIFF |
| Multi View Monitoring | |
| Multi View Monitoring | 2 x 10 Views for 20 total views |
| Multi View Video Standard | HD |
| Routable Windows | 16 |
| Tally | Red for program and green for preview indication |
| Windows Source Labels | Yes |
| Display | |
| Interface | Minimum monitor resolution of 1366 x 768 |
| Front Panel | Built in LCD monitor for video and 42 LED buttons for Aux switching |
| Processing | |
| Colorspace Conversion | Hardware based real time |
| 4K to HD Down Conversion | Yes, program x 1 |
| Audio Mixer | 22 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. Dedicated analog outputs for monitoring |
| Software | |
| Control Panel Included | ATEM Software Control Panel included free for Mac 10.12 Sierra, Mac 10.13 High Sierra or later and Windows 8.1 64-bit or Windows 10 64‑bit |
| Software Updates | Using USB 2.0 connection directly connected to Mac OS or Windows computers. Includes ATEM Setup Utility |
| Configuration | Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB to chassis |
| Power Requirements | |
| Power Supply | 2 x Internal 100 - 240V AC |
| Power Usage | 150 W |
| Environmental Specifications | |
| Operating temperature | 0° to 40° C (32° to 104° F) |
| Storage temperature | -20° to 60° C (-4° to 140° F) |
| Relative Humidity | 0% to 90% non-condensing |
| Dimensions, in | 19" x 9.25" x 3.54" |
| Weight, lb | 9 |
| What's Included | |
| Include | ATEM 2 M/E Production Studio 4K Welcome wallet with QR code for software download |
