Description
Features of SCALARWORKS LDM Magnifier Absolute Mount SW0600
- Ultra-rigid and low-profile 30mm ring
- Short-throw flip-to-side action
- Symmetrical profile for right or left flip orientation
- Co-witnesses perfectly with every Scalarworks Low Drag Mount
- Repeatable zero with each installation via precision telescoping clamp
- Lightest Quick-Detach Aimpoint Magnifier mount in existence
- CNC Machined from ultra high strength 7075-T6 Aluminum
- Proprietary recoil-proof thumbscrew with ball-detent attachment system
- Tool-free self-adjusting to any size rail
- Streamlined profile free of protruding levers or knobs
Product Info for SCALARWORKS LDM Magnifier Absolute Mount SW0600

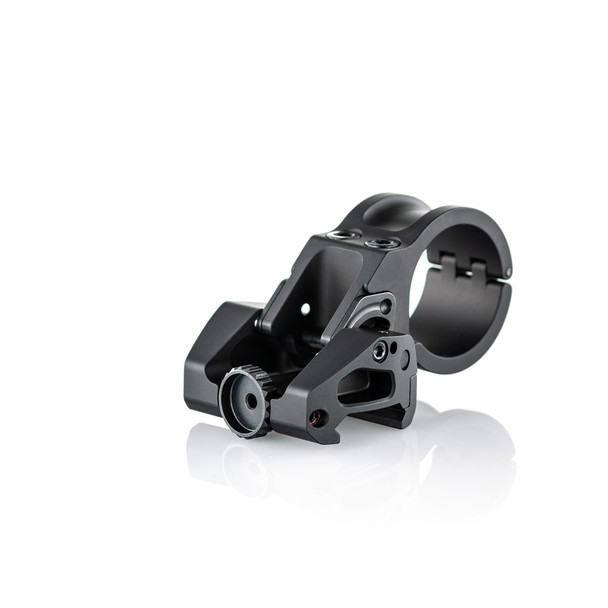

The SCALARWORKS LDM/Magnifier Absolute Co-Witness Mount (SW0600) is a state of the art flip-to-side magnifier mount. It is designed for shooters who want the lightest, strongest, and most compact quick-detach magnifier mount possible.
The Leap Mount is CNC milled from 7075-T6 billet, which has vastly superior mechanical properties to 6061-T6, and is used where ultimate strength and durability outweigh cost considerations. The Leap has no protruding levers, bolts, or knobs to rap your knuckles, or get caught on clothing, gear, and surroundings.
GritrOutdoors is an authorized Scalarworks dealer
Details
Activity: |
Shooting |
Base Fit: |
AR-15, AR-10, SCAR, MCX, MPX, Tavor, and similar with MIL-STD-1913 Picatinny Rail |
Color: |
Black |
Model: |
LDM |
Product Type: |
Scope Mounts |
Submodel: |
Magnifier |
Department: |
Optics |
Specification
Materials | 7075-T6 Aluminum Alloy / 4140H Steel Alloy |
Finishes | Mil-A-8625 Type III Hard Coat Anodizing / Black Nitride |
Compatible Optics | Aimpoint 3X-C, Aimpoint 3x Mag, Aimpoint 3x Mag-1, Aimpoint 6x Mag-1, most other 30mm tube Magnifiers |
Height Over Rail, mm | 36 |
Weight, oz | 2.70 |
In Box | Scalarworks Low Drag Mount Proprietary #10-32 Nylok treated ring screws Scalarworks Packaging |
