Description

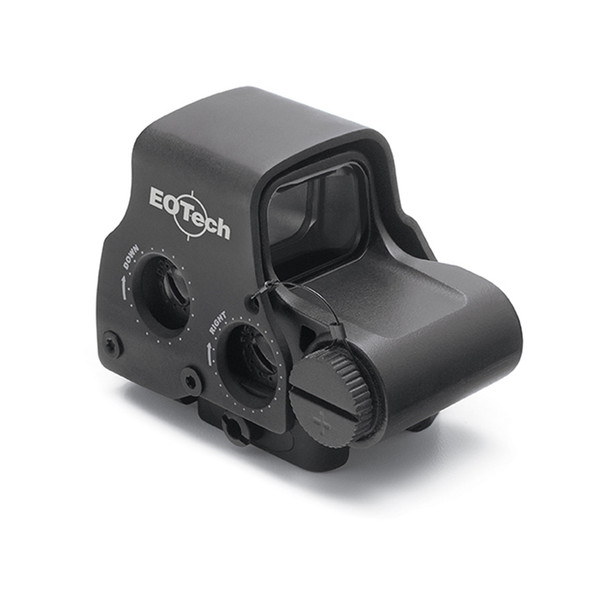

Features of Eotech EXP S2 Holographic Sight EXPS2-0
- Average battery life at brightness level 12 is roughly 600 hours
- Reticle is a 65MOA circle with 1 MOA aiming dot
- Single transverse 123 battery to reduce sight length
- Shortened base only requires at most 2 3/4 inch of rail space
- Side buttons with a single quick detach throw lever
Product Info for Eotech EXP S2 Holographic Sight EXPS2-0
Offering true 2 eyes open shooting, a transversly mounted lithium 123 battery, and 7 mm raised base offering iron sight access, the EOTech EXPS2-0 Holographic Weapon Sight, 65 MOA ring and 1 MOA dot Reticle (EXPS2-0) features easy to adjust side buttons and a single, quick release throw lever for easy attachment and removal.
The illuminated reticle is configured with a 65 MOA circle and a single 1 MOA dot - the illumination system provides the operator with 20 brightness levels to choose from.
This sight is smaller than the former N-cell battery Eotech sight and runs on single 123 battery. It also has a longer battery life than the N-cell style sights. Smaller, lighter and always fast. With the single battery configuration, the Eotech EXPS2-0 allows more rail space than ever, leaving more room for rear iron sights.
WARNING: The HWS Model EXPS is controlled under the Export Administration Regulations (EAR) ECCN 0A987, and may not be exported to a Foreign Person, either in the U.S. or abroad, without a license or exception from the U.S. Department of Commerce.
GritrOutdoors is an authorized Eotech dealer
Details
Activity: |
Shooting |
Base Fit: |
Picatinny |
Color: |
Black |
Model: |
EXP S2 |
Product Type: |
Reflex Sights |
Reticle Size: |
1 MOA Dot with 68 MOA Ring |
Specification
| Operation | |
| Optics | Transmission holography |
| Magnification | 1x |
| Eye Relief | Unlimited |
| Size (L x W x H), in | 3.8" x 2.3" x 2.9" |
| Weight, | 11.2 |
| Water Resistant | Submersible to 33 ft (10m) |
| Sealing | Fog resistant internal optics |
| Color/Finish | Non-reflective black |
| Adjustment (per Click), in @ 100yds | 1/2" (0.5 MOA) |
| Adjustment Range | +/- 40 MOA travel |
| Mount | 1" Weaver or MIL-STD 1913 rail |
| Display Window | |
| Optical Surfaces | Anti-Reflection coating on external surfaces |
| Window Dimensions, in. | 1.20" x 0.85" |
| Front Window Material | Glass 1/8" (3.17mm) thick |
| Rear Window Material | Laminate 3/16" (4.76mm) thick |
| Field of View 100 yds | 30 yds (28m) at a 3" eye relief |
| Reticle Options | 68MOA circle with quadrant ticks with 1 MOA aiming dot |
| Electrical | |
| Power Source | One (1) 123 lithium battery |
| Battery Life | 600 hrs |
| Brightness Settings | 20 settings with scrolling feature |
| Auto Battery Check Indicator | Flashing reticle upon start-up |
| Auto Shut-down | At 8 hrs- programmable to 4 hrs |
