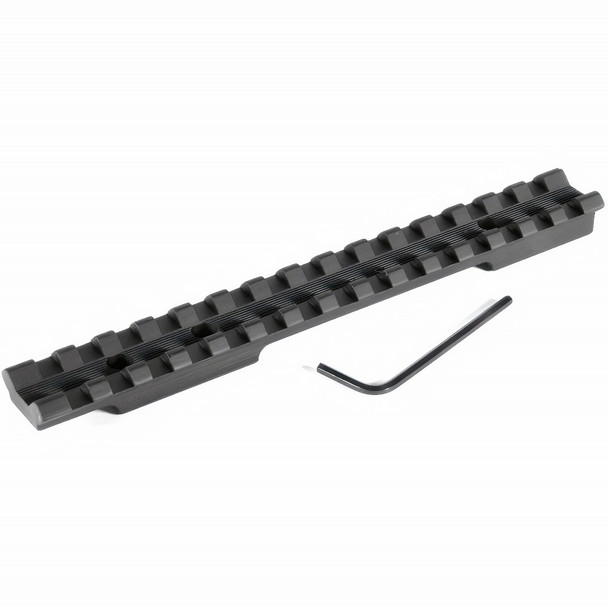

EVOLUTION GUN WORKS Remington 788 Long Action 20 MOA Picatinny Rail Scope Mount (40442)
Features of EVOLUTION GUN WORKS Remington 788 Scope Mount 40442
- Matte black anodized finish
- Picatinny cross slots fit Weaver scope rings, Picatinny scope rings
- Solid 6061 T6 Extruded Aluminum
- Mounting hardware included
- Compatible with Picatinny or Weaver scope rings
Product Info for EVOLUTION GUN WORKS Remington 788 Scope Mount 40442
These Remington 788 Standard Action and Long Action mounts are made specific to the guns.

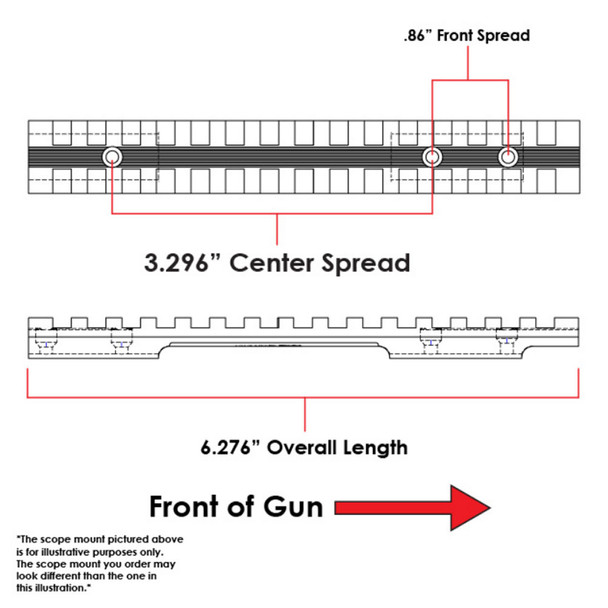

The middle spread is the distance between the two middle holes, center to center, on your receiver.
The middle spread on EGW's standard action mount is 3.00". The middle spread on EGW's long action mount is 3.29".
Please review the below caliber chart to assure that you order the correct mount:
Standard Actions Calibers:
Long Actions Cailbers:
This mount comes standard with a bevel on both sides making it ambidextrous.
We recommend measuring the hole spacing in your receiver to confirm it matches with the dimensions we have published.
Picatinny cross slots run the full length of the rail, which gives the shooter flexibility when mounting scope rings and other accessories. The channel in the center reduces the overall mass of the mount. Also, in many cases, it will not obstruct usage of factory iron sights. These one-piece scope mounts are the obvious choice for hunters and tactical shooters alike.
After machining, the mounts are tumbled, sand blasted, and Type II anodized for long lasting durability.
Installation: We recommend 20 inch lbs of torque and a drip of blue loctite.
0 MOA - if shooting 0-500 yards
20 MOA - if shooting 500-1000 yards
GritrOutdoors.com is an authorized Evolution Gun Works dealer
|Machined From||Domestic 6061 T6 Extruded Aluminum|
|Finish||Matte Black Anodizing|
|Center Spread, in||3.296"|
|Overall Length, in||6.276"|
|Height, in||.4" (Top of Receiver to Top of Picatinny)|
|Quick Disconnect Ring Compatible||No|
|Torque Specs||20 in/lbs|
|Mounting Hardware||#8-40 X 1/4 Screws and T-10 Bit Included|
