Description
Features of HAWKE Airmax 30 FFP SF 4-16x50 AMX IR Riflescope 13350
- Capped Target Turrets
- First Focal Plane
- 30mm Mono-Tube Chassis
- Wide Angle
- Side Focus
- Side Wheel (Removable)
- Illumination
- 16 Layer Fully Multi-Coated Lenses
- High Torque Zoom Ring
- Fast Focus Eyebell
Product Info for HAWKE Airmax 30 FFP SF 4-16x50 AMX IR Riflescope 13350

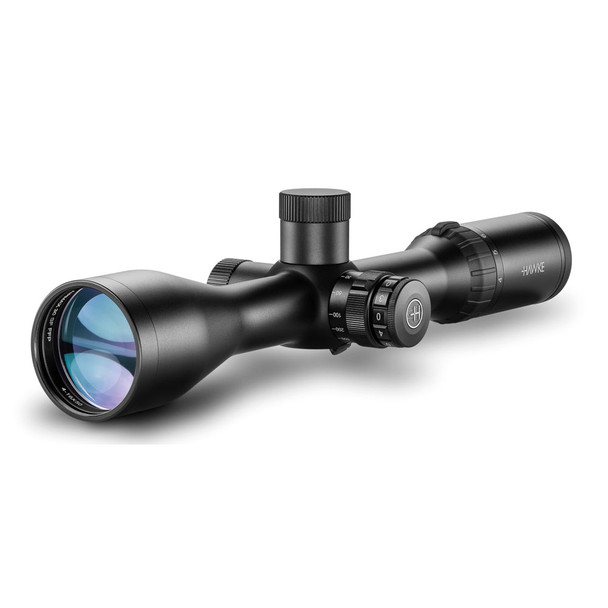

The HAWKE Airmax 30 FFP SF 4-16x50 AMX IR Reticle Riflescope yields a bright, sharp sight picture thanks to the large 50mm objective lens and 16-layer fully multi-coated optics. The etched-on-glass illuminated AMX reticle sits in the first focal plane and is fitted with multiple aim points, including 1/2 MRAD spacing on the lower post for long-shot holdovers.
A side focus turret with a 4" sidewheel is used to correct parallax error from 10 yards to infinity. Impact point correction adjusts at 1/10 MRAD per click, with a total elevation and windage adjustment range of 21 MRAD.
The lightweight and durable aluminum housing features a 30mm single-piece maintube, filled with nitrogen for fogproof and waterproof performance. To prevent recoil-related zoom shift, the fast-focus eyepiece is outfitted with a high-torque zoom ring. The Airmax 30 FFP SF 4-16x50 riflescope comes with a 4in sunshade and flip-up metal lens covers.
GritrOutdoors is an authorized Hawke dealer
Details
Activity: |
Hunting |
Color: |
Black |
Finish: |
Matte |
Firearm Fit: |
Rifles |
Magnification: |
4-16x |
Model: |
Airmax 30 |
Product Type: |
Riflescopes |
Submodel: |
FFP |
Tube Size: |
30mm |
Specification
| Magnification | 4-16x |
| Objective Diameter, mm | 50 |
| Field of View, ft @ 100yds | 32.5-8.1 |
| Angular Field of View, deg | 6.2-1.5° |
| Eye Relief, in | 3.5" |
| Exit Pupil, in | 0.49-0.12" |
| Parallax | Side Focus |
| Optical System | System H2 |
| Scope Tube, mm | 30 |
| PX/Focus (Error free from) | 10 yds to infinity |
| Turret Caps | Yes |
| Click Value | 1/10 MRAD |
| Elevation Turret Clicks (max) | 21 MRAD |
| Windage Turret Clicks (max) | 21 MRAD |
| Reticle | AMX IR |
| Illumination | 6 Levels with Off Positions In-between - Red |
| Ocular Type | Fast Focus |
| Power Selector | Rubber Coated Posi-Grip |
| Lens Coating | Fully Multi-Coated - 16 Layers |
| Focal Plane | FFP (First Focal Plane) |

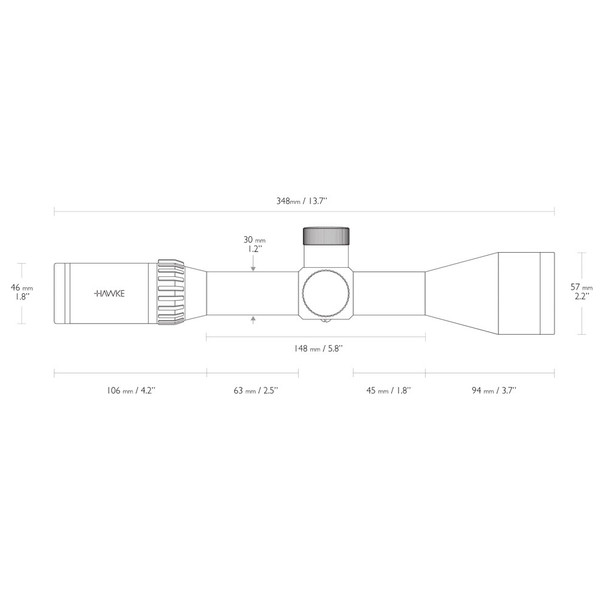

| Length, in | 13.7" |
| Weight, oz | 26.6 |
