Description
Features of HAWKE Airmax 30 SF 6-24x50 AMX IR Riflescope 13220
- Capped Target Turrets
- Side Focus
- High Torque Zoom Ring
- 30mm Mono-Tube Chassis
- Illumination
- Fast Focus Eyebell
- Wide Angle
- 16 Layer Fully Multi-Coated Lenses
- AMX Reticle Designed For Airguns

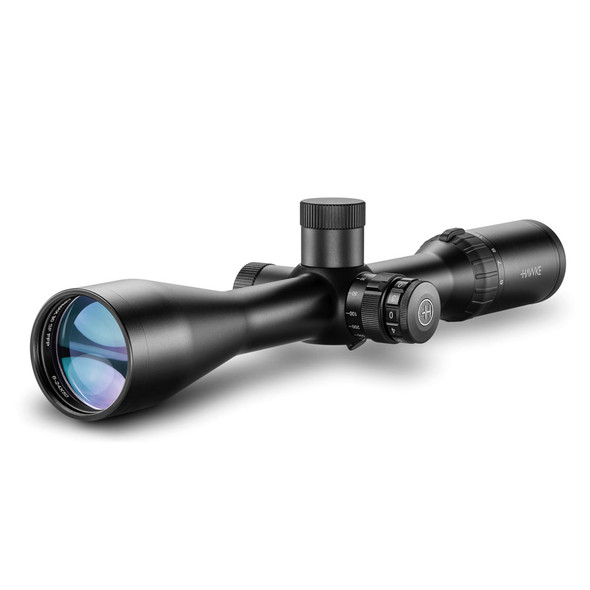

Product Info for HAWKE Airmax 30 SF 6-24x50 AMX IR Riflescope 13220
Designed for use on airguns, the HAWKE Airmax 30 SF Compact 6-24x50 AMX IR Reticle Riflescope employs a wide-angle optical system, broad magnification range, a generous objective, fully multi-coated optics, and a partially illuminated reticle. The AMX IR reticle is based on a mil-dot system and provides multiple aiming points on all axes, which allows you to compensate for loopy trajectories quickly without having to manipulate the windage and elevation turrets. The reticle's center crosshairs, mil dots, and stadia have six brightness levels, with off positions in between.
The scope's large 50mm objective lens and 16-layer anti-reflection optical coatings increase light transmission to enhance its low-light performance, such as at dawn, dusk, or in heavily canopied woods. Capped, resettable target turrets adjust at 1/10 MRAD per click, with a total elevation and windage adjustment range of 16 MRAD, allow for precise impact point correction, and a side parallax adjustment with removable wheel allows correction of parallax errors from 10 yards to infinity.
Complementing the performance of the scope is a lightweight and durable anodized aluminum housing with a robust 30mm one-piece maintube that is nitrogen filled and O-ring sealed to be water and fogproof.
GritrOutdoors is an authorized Hawke dealer
Details
Activity: |
Hunting |
Color: |
Black |
Finish: |
Matte |
Firearm Fit: |
Rifles |
Magnification: |
6-24x |
Model: |
Airmax |
Product Type: |
Riflescopes |
Tube Size: |
30mm |
Objective Size: |
50mm |
Specification
Magnification | 6-24x |
Objective Lens Diameter, mm | 50 |
Field of View (FOV) @ 100yds, ft / FOV @ 100m, m | 21.9-5.5 / 7.3-1.8 |
Eye Relief, in | 3" |
Exit Pupil, in | 0.33-0.08" |
Focus/Parallax - Side Focus | 10yds to infinity |
Elevation Increment | 1/10 MRAD |
Elevation Adjustment Range | 16 MRAD |
Windage Increment | 1/10 MRAD |
Windage Adjustment Range | 16 MRAD |
Chassis | 30mm Mono-tube |
Reticle | AMX IR |
Illumination | Red |
Focal Plane | Second Focal Plane (SFP) |
Material | Aluminium |
Ocular Type | Fast Focus |
Lens Coating | Fully Multi-Coated - 16 Layers |
Power Selector Style | RKnurled Posi-Grip |
Turret Caps | Yes |
Turret Type | Capped Target Turrets |
Length, in | 13" |
Weight, oz | 23.6 |
