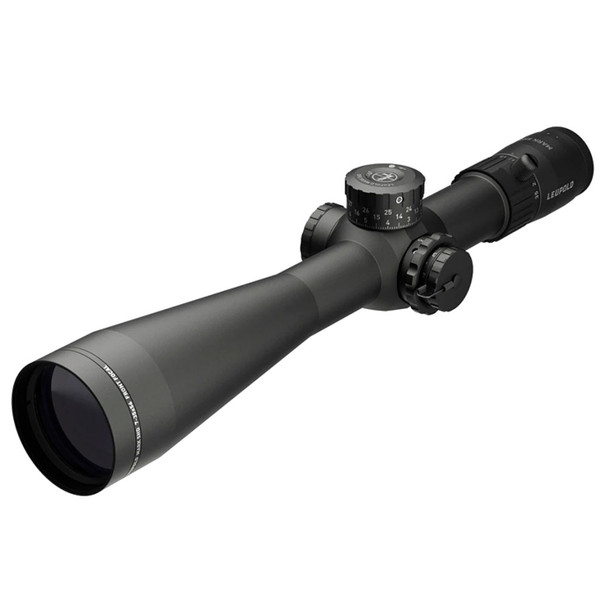

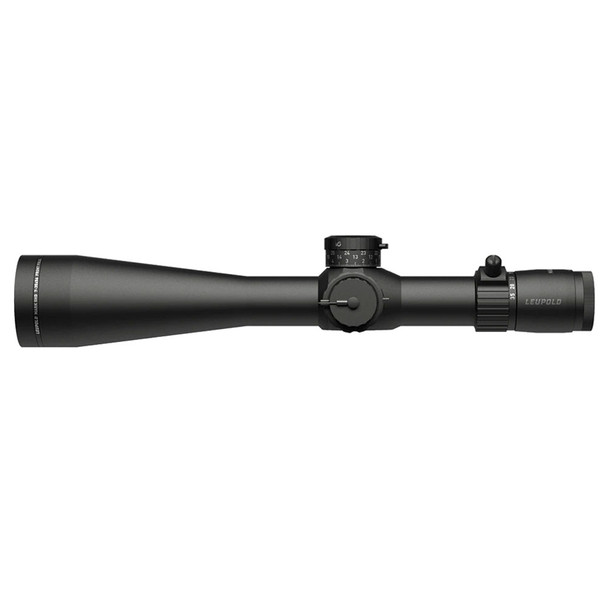

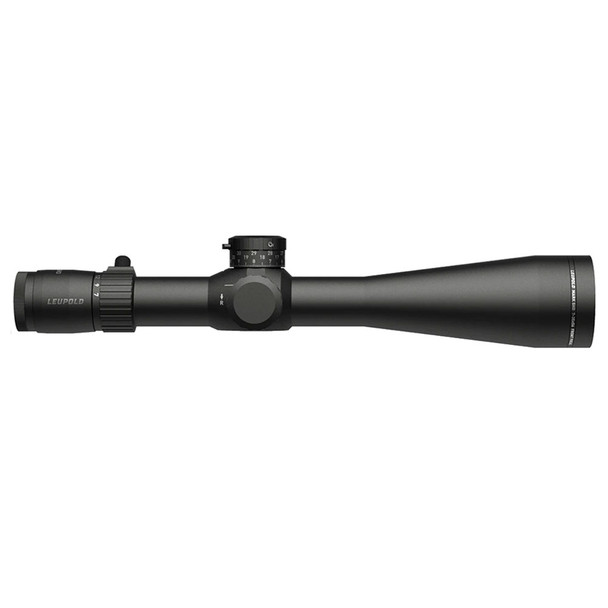

LEUPOLD Mark 5HD 7-35x56 35mm M5C3 Riflescope 176124


LEUPOLD Mark 5HD 7-35x56 35mm M5C3 FFP Illum TMR Reticle Matte Riflescope (176124)

(No reviews yet) Write a Review
  • LEUPOLD Mark 5HD 7-35x56 35mm M5C3 FFP Illum TMR Reticle Matte Riflescope (176124)
  • LEUPOLD Mark 5HD 7-35x56 35mm M5C3 FFP Illum TMR Reticle Matte Riflescope (176124)
  • LEUPOLD Mark 5HD 7-35x56 35mm M5C3 FFP Illum TMR Reticle Matte Riflescope (176124)
  • LEUPOLD Mark 5HD 7-35x56 35mm M5C3 FFP Illum TMR Reticle Matte Riflescope (176124)
  • LEUPOLD Mark 5HD 7-35x56 35mm M5C3 FFP Illum TMR Reticle Matte Riflescope (176124)
Free Standard Delivery
FREE Standard Delivery
30-Day Easy Returns
30-Day Easy Returns
Secure Ordering
Secure Ordering
Size Chart


Features of LEUPOLD Mark 5HD 7-35x56 35mm M5C3 Riflescope 176124

  • Versatile 5:1 zoom ratio gives you 5 times more magnification at high power than at low power
  • Leupold's Professional-Grade Optical System offers unmatched light transmission
  • Side focus adjusts the scope's parallax, making the reticle clearer and have less perceived movement when you're shooting at different distances
  • M5C3 ZeroLock feature prevents inadvertent adjustments and ensures accurate return to zero
  • In First Focal Plane scopes, the reticle grows and shrinks at the same rate as the target when you adjust the magnification
  • ZeroLock System eliminates accidental dial movement by locking it in place
  • ZeroStop System creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction
  • Comes with an illuminated reticle, which can help you get on target faster in low-light situations
  • Motion Sensor Technology extends battery life by automatically deactivating illum. reticles after five minutes of inactivity and then reactivates instantly as soon as movement is detected
  • Micro-adjustable illumination brightness settings support modern night vision devices and can be fine-tuned to your equipment's sensitivity

Product Info for LEUPOLD Mark 5HD 7-35x56 35mm M5C3 Riflescope 176124

The Mark 5HD 7-35x56mm Riflescope gives you the extra magnification you need to take advantage of the distances that modern precision rifles can shoot. With the right glass, no target is out of reach. And with the same dimensions and only 3 more ounces than its 5-25x56mm counterpart, you don't have to pay a weight penalty for the extra magnification.

Built around Leupold's Professional-Grade Optical System, the Mark 5HD 7-35x offers unmatched light transmission that's designed to outperform in the most challenging lighting conditions. Its industry leading glare reduction provides a clear image in harsh, direct light, while the resolution and clarity will meet the demands of any professional guide or shooter in the field.

Get behind the Mark 5HD and you'll see the difference. From the superior edge-to-edge clarity and extreme low-light performance to the versatility of its multiple reticle options, this rugged scope will give you an advantage at the range or in the field. With three revolutions of elevation adjustment, the Mark 5HD was built to max out the performance of the latest long-range rifles and ammo. It's ergonomically designed with more tactile, audible click adjustments, larger numbers, and a high-speed throw lever, so you can put accurate fire downrange faster.

Its unique combination of features, durability, and professional-grade optical performance guarantees that the Mark 5HD can handle any challenge you throw at it. It's 100% waterproof and fogproof, and like all Leupold riflescopes, it's designed, machined, and assembled in the USA and guaranteed to perform for life.

GritrOutdoors is an authorized Leupold dealer

View AllClose

Size Chart/Specs

Magnification 7-35x
Objective Lens Diameter, mm 56
Field of View (FOV) @ 100yds, ft 14.7-3
Field of View, deg 2.8°-0.6°
Eye Relief, in 3.6"-3.8"
Exit Pupil, mm 8-1.6
Minimum Parallax-Free Distance, yds 50
Adjustable Parallax Side Focus
Adjustable Objective No
Elevation Adjustment Type M5C3
Locking Dial Yes
Revolution Indicator Yes
Rezero Type Set Screw
Windage Adjustment Type Capped
Custom Dial System (CDS) No
Custom Dial Compatible Yes
BDC Dial Included No
Reticle Type Illuminated

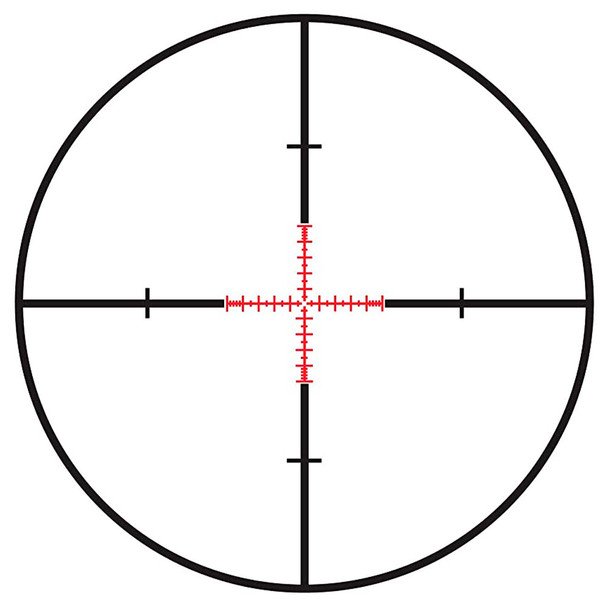

Reticle Illum. FFP TMR (Mk)
Battery Type CR2032
Battery Life (Low Intensity), hrs 1800
Battery Life (High Intensity), hrs 96
Number of Illum. Settings 7
Switch Type Dial
Daylight Bright Illumination No
Electronic Reticle Level No
Guard-ion Lens Coating No
Elevation Adjustment Value per Click 0.1 Mil
Elevation Adjustment Range (MOA) 100
Elevation Adjustment Range (MIL) 29
Elevation Adjustment Range (cm @ 100m) 291
Elevation Adjustment Per Revolution 10.5 MIL
Elevation Dial Travel Limit 30 MIL
Windage Adjustment Value per Click 0.1 MIL
Windage Adjustment Range (MOA) 50
Windage Adjustment Range (MIL) 15
Windage Adjustment Range (cm @ 100m) 145
Windage Adjustment Per Revolution 10 MIL
Waterproof Yes
Fogproof Yes
Shockproof Yes
Maintube Diameter, mm 35
Length, in 15.7"
Weight, oz 33
