Description

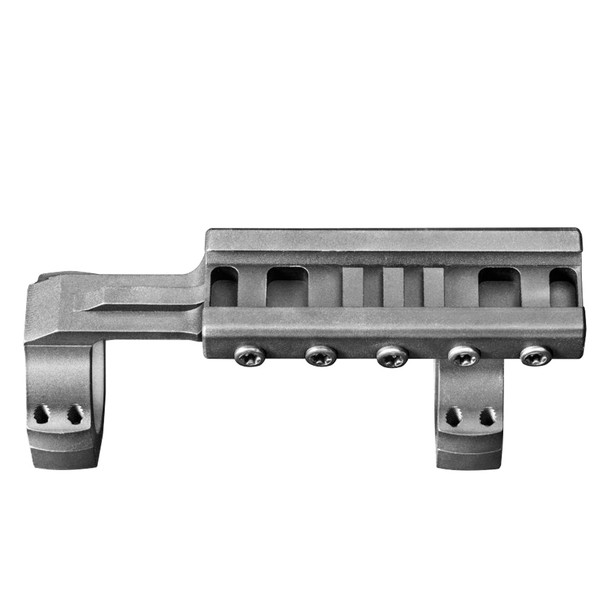

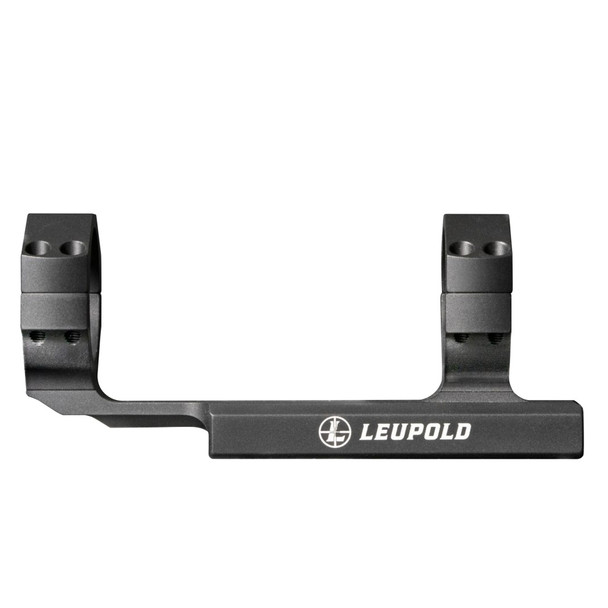

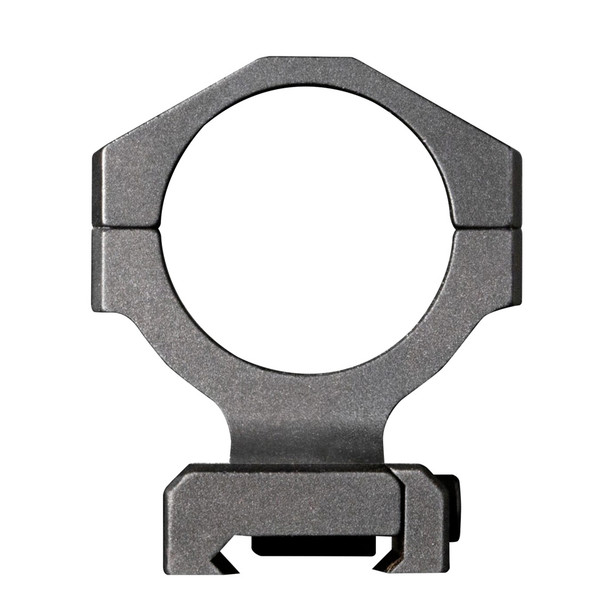

Features of LEUPOLD Mark AR 30mm Matte Integral Scope Mount 177094
- Lightweight Aluminum Design
- Dual Use
- Punisher Tested and Verified
- 30mm Tube Diameter
- Matte Black Finish
Product Info for LEUPOLD Mark AR 30mm Matte Integral Scope Mount 177094
There are two common issues when mounting scopes to platforms - getting the right scope height and the eye relief. The Leupold Mark solves both these problems while providing the most rock-solid mounting solution in the business. Combine that with ease of a one piece mount and you have the perfect match to that precision Leupold scope.
This mount features a 5 bolt design for a secure hold, 3 lugs on the bottom any kind of recoil, and a STANAG fit which means more contact area with the Picatinny rail for an exact fit.
GritrOutdoors is an authorized Leupold dealer
Details
Activity: |
Shooting |
Color: |
Black |
Finish: |
Matte |
Firearm Fit: |
AR, M Rifles |
Model: |
Mark AR |
Product Type: |
Scope Mounts |
Department: |
Optics |
On Sale: |
On Sale 30-40% off |
SALE: |
On Sale |
Material: |
Aluminum |
Specification
| Mark 30mm | Mark 34mm | Mark 35mm | |
| Material | Aluminum | Aluminum | Aluminum |
| Base Cant | No | No | No |
| Base Configuration | 1 Piece | 1 Piece | 1 Piece |
| Ring Diameter | 30 mm | 34 mm | 35 mm |
| Ring Height (in) | 1.4 | 1.5 | 1.5 |
| Weight (oz) | 5.8 | 6 | 5.9 |
| Keeper Clamp Torque | 65 in-lbs | 65 in-lbs | 65 in-lbs |
| Ring Top Screw Torque | 28 in-lbs | 28 in-lbs | 28 in-lbs |
| Length (in) | 5.43 | 5.43 | 5.43 |
| Rear Offset (in) | .68 | .68 | .68 |
| Ring Depth (in) | .65 | .65 | .65 |
| Length Within Rings (in) | 3.46 | 3.46 | 3.46 |
| Keeper Length (in) | 3.68 | 3.68 | 3.68 |
| Front Offset (in) | 1.75 | 1.75 | 1.75 |
| Ring Width (in) | 1.77 | 1.98 | 1.98 |
| Ring Height (in) | 1.4 | 1.5 | 1.5 |
