BLACKMAGIC DESIGN ATEM Camera Converter SWRCONV

Blackmagic Design

BLACKMAGIC DESIGN ATEM Camera Converter (SWRCONV)

(No reviews yet) Write a Review
SKU:
BLMD-SWRCONV
UPC:
9338716001310
MPN:
SWRCONV
  • BLACKMAGIC DESIGN ATEM Camera Converter (SWRCONV)
  • BLACKMAGIC DESIGN ATEM Camera Converter (SWRCONV)
  • BLACKMAGIC DESIGN ATEM Camera Converter (SWRCONV)
$625.00
Free Standard Delivery
FREE Standard Delivery
30-Day Easy Returns
30-Day Easy Returns
Secure Ordering
Secure Ordering
Size Chart

Description

Features of BLACKMAGIC DESIGN ATEM Camera Converter SWRCONV

  • Enables Extension of SDI/HDMI Cameras
  • Internal Battery
  • 12V Power Connection
  • Integrated Belt Clip / Camera Mount
  • Aircraft-grade Aluminum Construction
  • Transmission Distance - 28 miles (45km)
  • Talkback Function
  • 2 Tally LEDs
  • Microphone Inputs

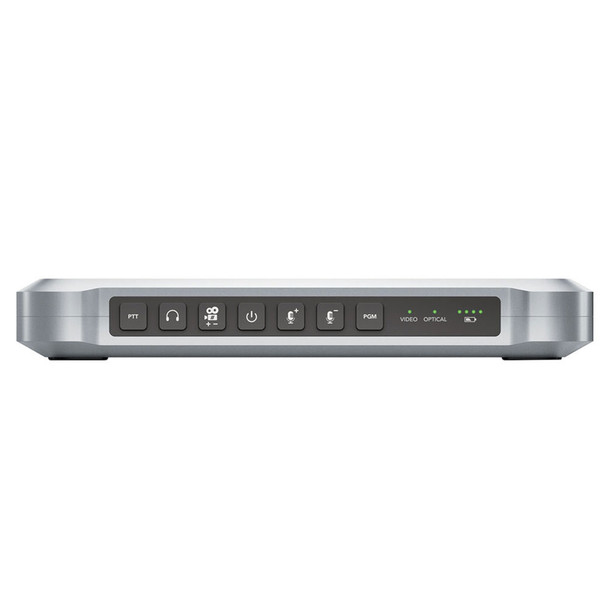

  • Built-in Button Pad

Product Info for BLACKMAGIC DESIGN ATEM Camera Converter SWRCONV

The BLACKMAGIC DESIGN ATEM Camera Converter enables extension of SDI (serial digital interface) / HDMI cameras to distances up to 28 miles (45km) via an optical fiber link. You can connect your camera to the SDI/HDMI inputs to convert videos to optical signals. This optical fiber input can be connected to the switcher program feed to convert to SDI/HDMI outputs for monitoring.

In addition, the SDI/HDMI outputs can be switched between return program and camera input for monitoring. With an internal battery, the converter can be used at remote locations when the cameras are placed at far-off locations. Featured Talkback function allows the switcher operator to co-ordinate with camera operator via PC headsets or iPhone-compatible headphones.

By embedding microphone audio into channels 15 and 16 of the camera optical fiber video output, the Talkback function listens to channels 15 and 16 of the optical fiber input on the headphones. Using the 12V power connection, the converter can be connected to any power source or a car battery. By connecting the switcher's program output to the ATEM Camera Converter via optical outputs, the camera converter illuminates the 2 tally LEDs using open standard tally packet in the SDI output.

You can select the camera number using the USB software or by camera number button on the keypad. In addition, you can also view red color tally on the monitor by connecting external monitoring to the HDMI/SDI outputs.Featuring an integra.


GritrOutdoors is an authorized Blackmagic Design dealer

View AllClose

Size Chart/Specs

Connections
SDI Video Input 1 x 10 bit SD/HD switchable
SDI Video Output 1 x 10 bit SD/HD switchable
HDMI Video Input 1 x HDMI type A connector
HDMI Video Output 1 x HDMI type A connector
Talkback Audio 1 x 3.5mm stereo connector for talkback microphone.
1 x 3.5mm stereo connector for stereo headphones, compatible with iPhone headsets
Analog Audio 2 x balanced 1/4" TRS connectors (stereo)
microphone level in. When connected, replaces
audio from SDI In or HDMI In
Optical Fiber Video Input 1 x single mode SD/HD switchable with LC connector
Optical Fiber Video Output 1 x single mode SD/HD switchable with LC connector
Optical Fiber Audio Input 1 x single mode camera audio inputs with LC connector. Channels 1 & 2 are camera audio.
Channels 15 & 16 are intercom audio
Optical Fiber Audio Output 1 x single mode camera audio outputs with LC connector. Channels 1 & 2 are camera audio.
Channels 15 & 16 are intercom audio
Computer Interface 1 x mini-B type USB 2.0 connector for
initial setup, firmware updates and
Converter Utility software control
Standards
SDI Format Support 525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97,
1080p30, 1080p50, 1080p59.94, 1080p60
2K Format Support 1 2K DCI 24p, 2K DCI 25p
HDMI Format Support 720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97,
1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 59.94, 60
SDI Compliance SMPTE 259M, SMPTE 292M
Audio Sampling Television standard sample rate of 48Khz,24 bit A/D conversion
Video Sampling 4:2:2
Color Precision 10‑bit
Color Space REC 601, REC 709
Multiple Rate support SDI and HDMI are switchable between standard definitlon and high definition
Power Requirements
Power Supply 12V power supply included with international socket adaptors for all countries
Environmental Specifications
Operating temperature 0° to 40° C (32° to 104° F)
Storage temperature -20° to 45° C (-4° to 113° F)
Relative Humidity 0% to 90% non-condensing
Dimensions, in 7.99" x 4.76" x 1.73"
Weight, lb 1.64
What's Included
Include ATEM Camera Converter
Welcome wallet with QR code for software download
