Description
Features of BLACKMAGIC DESIGN Ultimatte Processor ULTMKEY12BHD
- Up to 1080p60 via 3G-SDI BNC
- SD/HD/3G-SDI Support
- 5 x SDI Inputs & Loop Outputs
- Realistic Augmented Reality with Tinting
- Better Color Fidelity/Edges/Transitions
- 1-Touch Keying, Advanced Compositing
- Works with Ultimatte Smart Remote 4
- Dedicated Compositing Inputs & Outputs
- Advanced Algorithms and Color Science
- 1 RU Height, Half-Rack Width
Product Info for BLACKMAGIC DESIGN Ultimatte Processor ULTMKEY12BHD

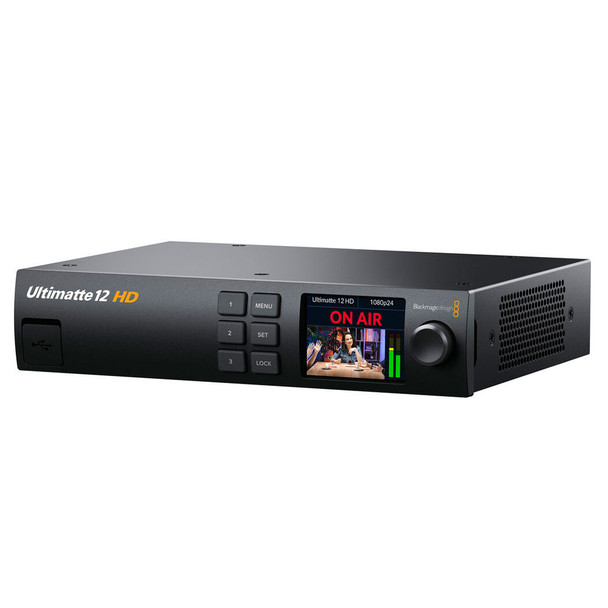

The BLACKMAGIC DESIGN Ultimatte 12 HD Compositing Processor is an advanced real time compositing processor designed for keying live action video with next generation broadcast graphics, virtual sets and more. Ultimatte 12 HD features new algorithms and color science, incredible edge handling and color separation, amazing color fidelity, and better spill suppression than ever before. The high performance 3G-SDI design gives you the power to work in HD with sub pixel processing for an amazing image.
GritrOutdoors is an authorized Blackmagic Design dealer
Warranty Information

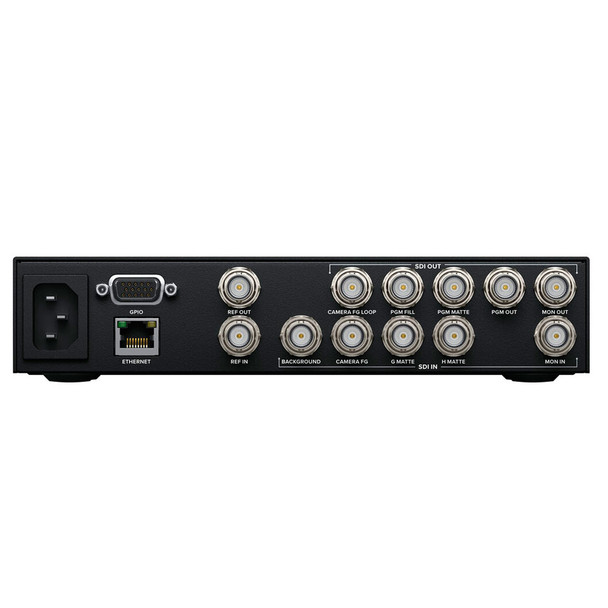

| Connections | |
| SDI Video Inputs | 5 |
| SDI Video Outputs | 4 |
| SDI Video Loop Outputs | 1 |
| SDI Rates | 270Mb, 1.5G, 3G |
| Video Input Re-Sync | On all inputs |
| Reference Connections | 1 x BNC In, 1 x BNC Out. Tri-Sync or Black Burst |
| GPIO | DE15 |
| Ethernet | Up to 1Gb/s for device control and loading stills into Media Pool |
| Computer Interface | 1 x USB-C 3.0 for device configuration and software updates |
| Standards | |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B |
| Video Sampling | 4:2:2 |
| Color Precision | 10-bit |
| Color Space | REC 601, REC 709 |
| Multiple Rate Support | Auto detection of SD and HD |
| Composite Sources | |
| Foreground | 1 x 3G-SDI In with Loop Out |
| Background | 1 x 3G-SDI In Still from Media Pool |
| Background Matte | Internal Window Still from Media Pool |
| Garbage Matte | 1 x 3G-SDI In Internal Window Still from Media Pool |
| Holdout Matte | 1 x 3G-SDI In Internal Window Still from Media Pool |
| Layer | Still from Media Pool |
| Layer Matte | Internal Window Still from Media Pool |
| Composite Outputs | |
| Fill | 1 x 3G-SDI |
| Matte | 1 x 3G-SDI |
| Program | 1 x 3G-SDI |
| Monitor | |
| Monitor In | 1 x 3G-SDI |
| Monitor Out | 1 x 3G-SDI |
| Media Pool | |
| Background Still Image Formats | TGA, TIFF, BMP, PNG, JPG |
| Background with Alpha Still Image Formats | TGA, TIFF, BMP |
| Layer Image Still Image Formats | TGA, TIFF, BMP, PNG, JPG |
| Layer with Alpha Still Image Formats | TGA, TIFF, BMP |
| Garbage Matte Still Image Formats | TIFF, BMP, PNG, JPG |
| Holdout Matte Still Image Formats | TIFF, BMP, PNG, JPG |
| Media Pool Memory | 6GB non-volatile internal storage |
| Control | |

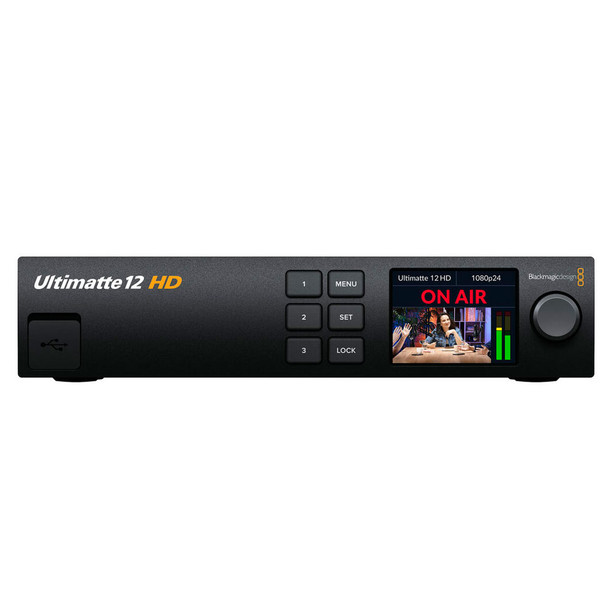

| Front Panel | 2.2 inch color display, 3 preset buttons, 3 menu buttons and spin knob |
| Control Connection | Network or direct Ethernet connection to a computer running Ultimatte Software Control or Ultimatte Smart Remote 4 |
| Software Control | Ultimatte Software Control supported on Mac or Windows computers |
| Hardware Control Panel | Ultimatte Smart Remote 4 |
| Software | |
| Software Updates | Using USB‑C or Ethernet connection to Mac or Windows computers |
| Configuration | Ultimatte IP address is set via the front panel or Ultimatte setup utility connected via USB |
| Power Requirements | |
| Power Supply | 1 x Internal 100-240V AC, 50/60Hz |
| Power Usage | 15W |
| Environmental Specifications | |
| Operating temperature | 0° to 40° C (32° to 104° F) |
| Storage temperature | -20° to 60° C (-4° to 140° F) |
| Relative Humidity | 0% to 90% non-condensing |
| Dimensions, in | 8.27" x 6.96" x 1.74" |
| Weight, lb | 2.56 |
| What's Included | |
| Include | Ultimatte 12 HD Welcome wallet with QR code for software download |
