Description
Features of BLACKVUE DR770X-2CH Dash Cam DR770X-2CH-TRUCK-LTE
- Reliable and high-resolution cloud dash cam
- Improved Sony STARVIS 2.1MP image sensor with night vision
- Resolution: Full HD with a smooth 60fps
- Memory card: High Quality 64GB microSD
- With a newly designed, robust 120 degrees rear camera
- Integrated LTE extension: enables cloud access to dashcam anytime and anywhere
- Convenient WiFi function for BlackVue app
- Parking mode monitoring: intelligent power supply via vehicle battery
- Integrated GPS for map and speed information
- Integrated microphone and speakers
Product Info for BLACKVUE DR770X-2CH Dash Cam DR770X-2CH-TRUCK-LTE

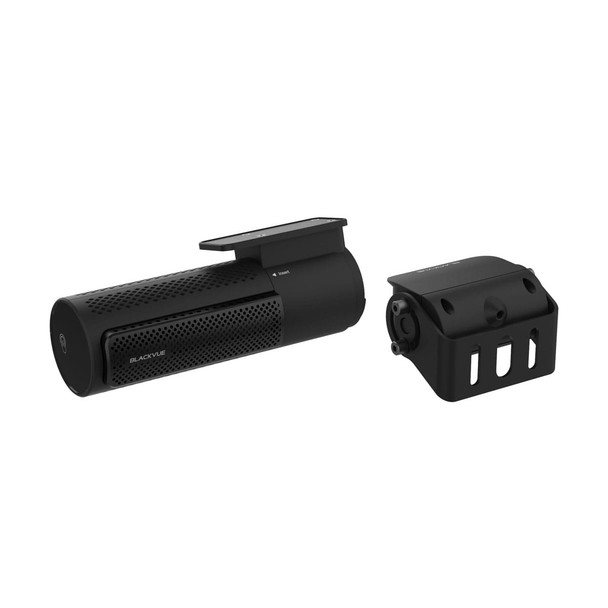

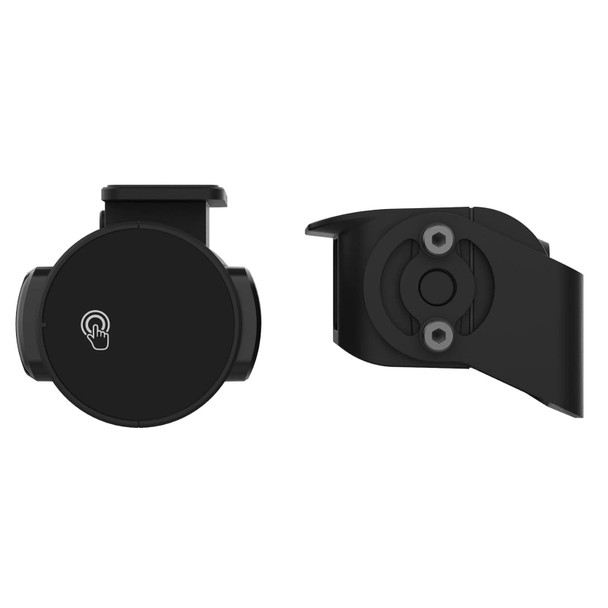

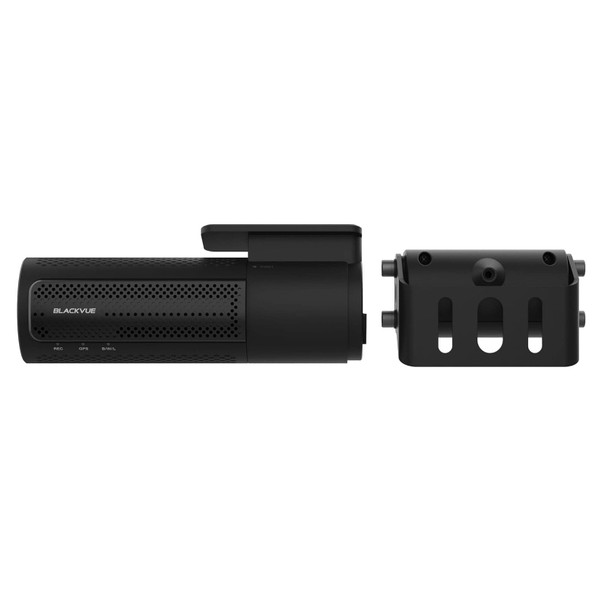

The BLACKVUE DR770X-2CH Truck LTE Front and Waterproof Rear Cloud Dash Cam is the ultimate LTE cloud dashcam for trucks, vans and commercial vehicles. The rear camera is connected by a 15-meter (49ft) video cable so you can mount it externally on a variety of trucks and heavy vehicles. Best image quality night and day with Full HD Sony STARVIS image sensors front and rear. Easy Cloud connectivity with built-in Nano SIM card reader, making it a dash cam of choice for commercial vehicle protection and fleet tracking. Effortless set up with the BlackVue App.
A Truck Dashcam Built for the Cloud
Built-in 4G LTE connectivity makes connecting to the Cloud hassle-free. Dual Full HD 1080p cameras (front 60 / rear 30 frames per second) provide fluid videos of the front and back of your vehicle. View angle: front camera: 139 degrees; rear camera: 116 degrees. STARVIS imaging sensors - a reference in video clarity under low light - equip both front and rear cameras, so whether you are driving or parked, crucial details are captured perfectly.
Infrared External Rear Camera
With its metal waterproof casing the rear camera of the DR770X-2CH TRUCK is built to withstand most weather conditions. Its Ingress Protection rating (IP69K) means it can even withstand power washing. It is designed to be installed at the rear of trucks or heavy vehicles. The luminosity sensor detects ambient brightness and automatically activates the six infrared lights to help identify vehicles and objects in the dark.
Waterproof Coaxial Cable
The 15m (49ft) high-quality waterproof coaxial cable connects the front and rear cameras. The waterproof rear camera and the coaxial cable are screwed together to provide tight and water-resistant connection. Its length makes it ideal for trucks and trailers and guarantees a pristine image even over long distance.
Mobile Hotspot Function
With Mobile Hotspot Function, your compatible BlackVue can now turn into a mobile internet router for up to five devices concurrently. This means you and your passengers can now use your BlackVue's internet on your laptop, portable game console, tablet or mobile. To connect to the BlackVue, simply open your devices' Wi-Fi menu, select the BlackVue and enter the dashcam?? Wi-Fi password.
BlackVue Cloud
Connect to your BlackVue anytime, from anywhere in the world with BlackVue Cloud. Receive Push Notifications on your phone whenever the dashcam detects an impact on your parked vehicle, and see for yourself with Remote Live View. Even better, let BlackVue upload critical footage - such as break-in or hit and run -in real time to the Cloud with Live Event Upload. Play and download videos from your dashcam or the Cloud from anywhere and back up important videos to the free Cloud storage. Enjoy Two-way Voice Communication with the driver from the app through the BlackVue's integrated speaker and mic.
Built-in Speaker, Impact Sensor and Motion Detection
Speaker: your dashcam tells you when it turns on, shuts down or detects errors. Accelerometer: detects impacts to trigger Event recording. Enables Parking Mode* when stationary for 5 minutes. Motion detection: while in Parking Mode, your dashcam can record videos as movement is detected by either the front or interior camera. Video filters (N,E,P,M): display the types of videos you need in the BlackVue App and Viewer. The filters are Normal, Event (Impact), Parking motion, Manual Event.
BlackVue App (iOS, Android) and Viewer (Windows/Mac/Web)
Easily change your BlackVue configuration settings and browse your videos on your mobile or computer. With the BlackVue App, connect to your BlackVue to access files and check real-time Live View for easy setup of your dashcam. With the SD Card Viewer, connect your dashcam's microSD card to your computer to view and backup footage in bulk, as well as export clips, remove sound, etc.
GritrOutdoors is an authorized Blackvue dealer
Details
Color: |
Black |
Activity: |
Automotive |
Product Type: |
Dash Cams |
Specification
Model Name | DR770X-2CH Truck LTE |
Memory Capacity | 64GB |
Channel | 2CH |
Highlights | Built-in 4G LTE, Sony STARVIS image sensors, Infrared (IR) External Rear Camera |
Product Dimensions | Front: Black / Width 137.6mm x Height 43mm / 161g Rear: Black / Width 70.4mm x Height 36mm / 157g |
Rear Camera Connection | Coaxial cable |
Memory Support | microSD card up to 256GB |
Recording Modes | Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected) * When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode |
Parking Mode | Yes (hardwiring cable included) |
Parking Mode Event Voice Notifications | Yes |
Imaging Sensor | Front: Sony STARVIS CMOS Sensor (Approx. 2.1 M Pixel) Rear: Sony STARVIS CMOS Sensor (Approx. 2.1 M Pixel) |
Viewing Angle | Front: Diagonal 139°, Horizontal 116°, Vertical 61° Rear: Diagonal 116°, Horizontal 97°, Vertical 51° |
Resolution Frame Rate | Front: Full HD (1920x1080) @ 60 fps Rear: Full HD (1920x1080) @ 30 fps * Frame rate may vary during Wi-Fi streaming |
Video Codec | H.264 (AVC) |
Image Quality and Bitrate Front/Rear | Highest (Extreme): 25+10 Mbps Highest: 12+10 Mbps High: 10+8 Mbps Normal: 8+6 Mbps |
Format Free | Yes (Adaptive) |
Event File Overwrite Protection | Yes (up to 50) |
SD Card Failure Alert | Yes |
Scheduled Reboot | Yes |
Video File Extension | MP4 |
Wi-Fi | Built-in (802.11n (2.4~2.4835 GHz)) |
Cloud Compatible | Yes |
GPS | Built-in |
Microphone | Built-in |
Speaker | Built-in |
Impact Sensor | 3-Axis Acceleration Sensor |
LED Indicators | Front: Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED Rear: None |
Rear Camera IR Illumination | 940 nm (4 Infrared (IR) LEDs) |
Button | Touch Sensor: Pressing the touch sensor triggers manual recording depending on the firmware settings |
Operation Temperature | -20?C - 70°C (-4°F - 158°F) |
Storage Temperature | -20°C - 70°C (-4°F - 158°F) |
High Temp Cut Off | Approx. 80 °C (176 °F) |
Backup Battery | Built-in supercapacitor |
Input Power | DC 12V-24V (3 pole DC Plug(Ø3.5 x Ø1.1) to Wires (Black: GND / Yellow: B+ / Red: ACC) |
Power Consumption Hour | Normal Mode (GPS On/Cloud On): Avg. 470mA/12V Normal Mode (GPS On/Cloud Off): Avg. 410mA/12V Parking Mode (GPS Off/Cloud On): Avg. 370mA/12V Parking Mode (GPS Off/Cloud Off): Avg. 310mA/12V * Approx. 60mA increase in current when IR LEDs are ON * Actual power consumption may vary depending on use conditions and environment * Model DR770X-2CH Truck LTE should be used only in circuits that satisfy Limited Power Source (Maximum power consumption is to be less than 100 VA or 8 A) |
Certifications | Front: FCC, ISED, CE, UKCA, RCM, Telec, RoHS, WEEE, KC Rear: FCC, CE, IC, UKCA, RCM, RoHS, WEEE, KC |
Software | BlackVue Viewer * Windows 7 or higher, Mac Sierra OS X (10.12) or higher BlackVue Web Viewer * Chrome 71 or higher, Safari 13.0 or higher |
Application | BlackVue Application * Android 8.0 or higher, iOS 13.0 or higher |
Others | Built-in 4G LTE module compatible with Nano-SIM Frequency Bands: North America (NA version): B2, B4, B12 | Global(GL version): B1, B3, B7, B20 |
Bluetooth | Built-in (V2.1+EDR/4.2) |
LTE | Built-in (BlackVue SIM included with NA model only) |
