Description
Features of BLACKVUE DR770X Box Cloud Dash Cam DR770-BOX
- 3 channel (front, rear and inside) Full HD Cloud Dashcam and Secure Recording Box
- All 3 cameras powered by back-illuminated STARVIS image sensor

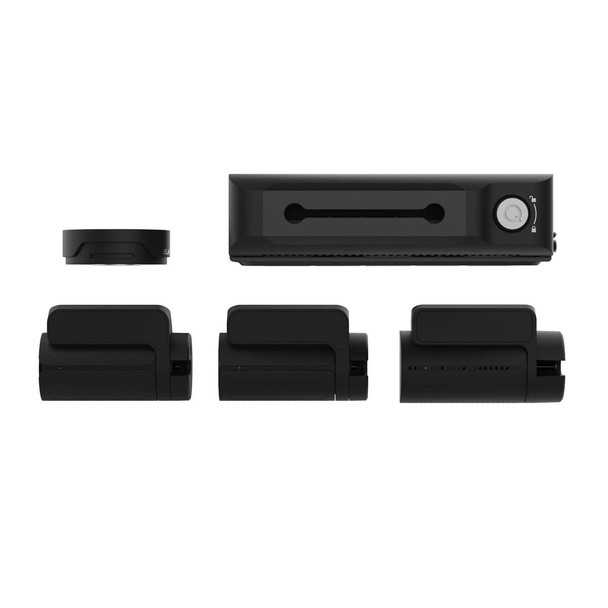

- The compact front, interior and rear cameras connect via coaxial video cable to the lock-protected "Box" recording unit, which can be stowed away in a glove compartment for maximum stealth and security
- External GPS (included), Built in Wi-Fi, Optional LTE (Optional CM100GLTE provides easy 4G LTE to enable Blackvue Cloud features)
- Native Parking Mode - Voltage cutoff and time setting in Blackvue app to protect your vehicle battery (hardwiring cable included)
- Seamless Pairing with Blackvue App
- Wireless "SOS" button included to trigger Manual Event recordings
Product Info for BLACKVUE DR770X Box Cloud Dash Cam DR770-BOX

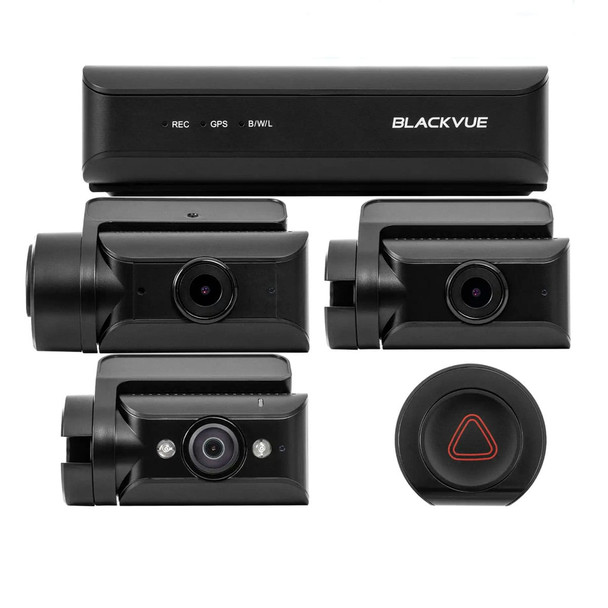

The BLACKVUE DR770X Box is a triple-channel dash cam with BlackVue Cloud connectivity. The compact front, interior and rear cameras connect via coaxial video cable to the lock-protected "Box" recording unit, which can be stowed away in a glove compartment for maximum stealth and security.
All cameras use Full HD image sensors for best image quality under any light, and the interior camera can record even in full darkness with its infrared LEDs. Wireless "SOS" button included to trigger Manual Event recordings. Native Parking Mode support via included hardwiring cable. View and download videos easily with the BlackVue App. Cloud support via Wi-Fi hotspot or optional LTE Connectivity module.
3 Cameras and Secure Recording Box
All 3 cameras use back-illuminated STARVIS image sensors that produce clear details in both shadows and highlights thanks to high sensitivity and wide dynamic range. Ultra-wide interior facing camera: the 180-degree view angle allows to cover both driver-side and passenger-side windows in most vehicles. With its infrared illumination LEDs, it captures clear details even in complete darkness.
GPS, Wi-Fi and Optional LTE
External GPS (included): embeds speed and location data in your videos. This allows you to track your vehicle in real-time via BlackVue Cloud and view its location on a map during playback in the BlackVue App or Viewer.
Wi-Fi: connect to your BlackVue with a smartphone or tablet for fast file transfer. Wi-Fi also lets your BlackVue connect to BlackVue Cloud using a mobile Wi-Fi hotspot (router).
LTE: connect the optional LTE connectivity module to the USB port for the best Cloud experience.
GritrOutdoors is an authorized Blackvue dealer
Details
Activity: |
Automotive |
Color: |
Black |
Product Type: |
Dash Cams |
Specification
| Model Name | DR770X Box |
| Memory Capacity | 64GB/128GB/256GB |
| Channel | 3CH |
| Highlights | Full HD + Full HD + Full HD (Front + Rear + Interior), Cloud, Wi-Fi, Triple Sony Sensors, External GPS and LTE Module |
| Product Dimensions | Main unit: Black / Length 130.0 mm x Width 101.0 mm x Height 33.0 mm / 209 g Front: Black / Length 62.5 mm x Width 34.3 mm x Height 34.0 mm / 43 g Rear: Black / Length 63.5 mm x Width 32.0 mm x Height 32.0 mm / 33 g Interior IR: Black / Length 63.5 mm x Width 32.0 mm x Height 32.0 mm / 34 g Wireless Button: Black / Length 45.2 mm x Width 42.0 mm x Height 14.5 mm / 23 g |
| Rear Camera Connection | Coaxial cable |
| Memory Support | microSD card up to 256GB |
| Recording Modes | Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected) *When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode |
| Parking Mode | Yes (hardwiring cable included) |
| Parking Mode Event Voice Notifications | Yes |
| Imaging Sensor | Front: Sony STARVIS CMOS Sensor (Approx. 2.1 M Pixel) Rear: Sony STARVIS CMOS Sensor (Approx. 2.1 M Pixel) Interior: Sony STARVIS CMOS Sensor (Approx. 2.1 M Pixel) |
| Viewing Angle | Front: Diagonal 139, Horizontal 116, Vertical 61 Rear: Diagonal 116, Horizontal 97, Vertical 51 Interior IR: Diagonal 180, Horizontal 150, Vertical 93 |
| Resolution Frame Rate | Front / Rear / Interior IR Full HD (1920x1080) @ 60 fps Full HD (1920x1080) @ 30 fps Full HD (1920x1080) @ 30 fps *Frame rate may vary during Wi-Fi streaming |
| Video Codec | H.264 (AVC) |
| Image Quality and Bitrate Front/Rear | Front / Rear / Interior Highest(Extreme): 16 + 10 + 10 Mbps Highest: 12 + 10 + 10 Mbps High 10 + 8 + 8 Mbps Normal: 8 + 6 + 6 Mbps |
| Format Free | Yes (Adaptive) |
| Event File Overwrite Protection | Yes (up to 51) |
| SD Card Failure Alert | Yes |
| Scheduled Reboot | Yes |
| Video File Extension | MP4 |
| Wi-Fi | Built-in (802.11 b.g.n) |
| Cloud Compatible | Yes |
| GPS | External (Dual Band : GPS, GLONASS) |
| Microphone | Built-in |
| Speaker | Built-in |
| Impact Sensor | 3-Axis Acceleration Sensor |
| LED Indicators | Main unit: Recording LED, GPS LED, BT/Wi-Fi/LTE LED Front: Front & Rear Security LED Interior IR: Front & Rear Security LED EB-1: Operating/Battery low voltage LED |
| Rear Camera IR Illumination | Interior IR: 940nm (2 Infrared (IR) LEDS) |
| Button | EB-1 button: Press the button manual recording |
| Operation Temperature | -20C - 70C (-4F - 158F) |
| Storage Temperature | -20C - 80C (-4F - 176F) |
| High Temp Cut Off | Approx. 80 C (176 F) |
| Backup Battery | Built-in supercapacitor |
| Input Power | DC 12V-24V (3 pole DC Plug(3.5 x 1.1) to Wires (Black: GND / Yellow: B+ / Red: ACC) |
| Power Consumption Hour | Normal Mode (GPS On / 3CH) : Avg. 730mA / 12V Parking Mode (GPS Off / 3CH) : Avg. 610mA / 12V * Approx. 40mA increase in current when Interior Camera IR LEDs are ON * Approx. 60mA increase in current when Rear Truck Camera IR LEDs are ON * Actual power consumption may vary depending on use conditions and environment |
| Certifications | Front (with Main unit & EB-1): FCC, IC, CE, UKCA, RCM, Telec, WEEE, RoHS Rear, Rear Truck & Interior IR: KC, FCC, IC, CE, UKCA, RCM, WEEE, RoHS |
| Software | BlackVue Viewer * Windows 7 or higher, Mac Sierra OS X (10.12) or higher BlackVue Web Viewer * Chrome 71 or higher, Safari 13.0 or higher |
| Application | BlackVue Application * Android 8.0 or higher, iOS 13.0 or higher |
| Others | Adaptive Format Free File Management System Advanced Driver Assistance System LDWS (Lane Departure Warning System) FVSA (Forward Vehicle Start Alarm) |
| Bluetooth | Built-in (V2.1+EDR/4.2) |
| LTE | External (optional) |
