Description
Features of BLACKVUE DR770X-BOX-TRUCK-64 DashCam DR770-BOX-TRUCK-64
- Seamless Pairing with the BlackVue App
- Infrared external rear camera
- Waterproof coaxial cable
- GPS, Wi-Fi and Optional LTE
- Ultrawide Infrared Interior Camera
- Built-in Speaker, Impact Sensor and Motion Detection
- SOS Button
- BlackVue App (iOS, Android) and Viewer (Windows/Mac/Web)
Product Info for BLACKVUE DR770X-BOX-TRUCK-64 DashCam DR770-BOX-TRUCK-64
The BLACKVUE DR770X-BOX-TRUCK-64 Triple Channel Truck Dash Cam with External Rear Cam is a comprehensive dash cam system designed specifically for trucks and heavy vehicles. It provides total video protection with its front camera, external rear camera, and infrared interior camera. The waterproof external rear camera ensures reliable performance even in harsh weather conditions.
Capture every detail of your journey with the Full HD 1080P resolution and various recording options. The front camera records at 60fps, while the external rear camera and infrared interior camera record at 30fps. The ultrawide interior camera with infrared LEDs ensures clear video footage of the cabin, even in low-light conditions.
The BlackVue DR770X-BOX-3CH-TRUCK-64 comes with a built-in voltage monitor to protect your vehicle's battery and supports parking mode for continuous surveillance. You also have the option to add the external LTE module for advanced features and remote access to your footage.
Effortlessly manage your dash cam settings and footage using the user-friendly BlackVue App or Viewer. The seamless pairing feature allows easy setup and quick access to your dash cam's files and settings. With the included GPS logger, you can embed speed and location data in your videos, enhancing the overall recording experience.
The waterproof external rear camera is designed with a rugged metal waterproof casing (IP69K) to withstand challenging weather conditions and power washing. It is easily installed at the rear of trucks or heavy vehicles and comes with a 15m (49ft) high-quality waterproof coaxial cable for a secure connection to the front camera.
Stay connected with the BlackVue DR770X-BOX-3CH-TRUCK-64 through built-in Wi-Fi, optional LTE connectivity, and BlackVue Cloud. Use the Wi-Fi to connect your dash cam to your smartphone or tablet for fast file transfer. The optional LTE connectivity module allows you to connect your dash cam to the Cloud for real-time access and advanced features.
Experience the convenience of the BlackVue App and Viewer, where you can easily manage your video files, change configuration settings, and browse your dash cam's footage. The BlackVue Cloud provides additional connectivity and features such as push notifications, live view, and two-way voice communication.
Ensure the safety and integrity of your videos with built-in features like event file overwrite protection, adaptive format-free file management, and SD card failure alert. The dash cam also includes a built-in speaker, impact sensor, motion detection, and an SOS button for manual event recording.

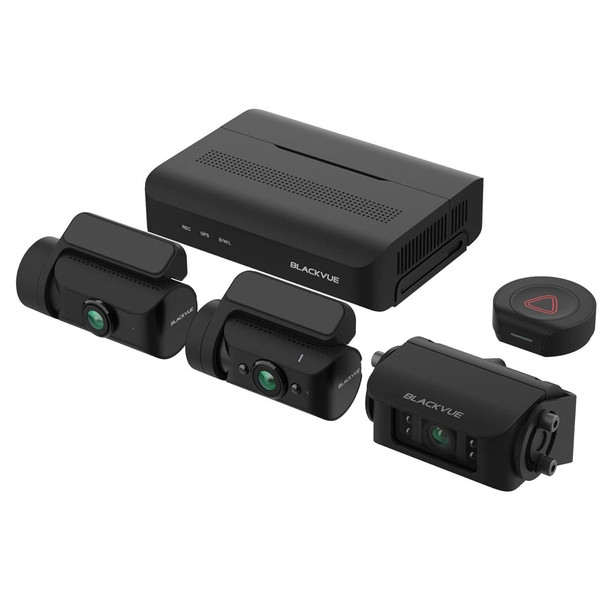

The BlackVue DR770X-BOX-3CH-TRUCK-64 package includes the front camera, external rear camera, infrared interior camera, GPS logger, hardwiring cable, and a 64GB SDHC card. It offers a triple protection system with tamper-proof features to safeguard your dash cam and footage.
GritrOutdoors is an authorized Blackvue dealer
Details
Model: |
DR770X-BOX-TRUCK-64 |
Color: |
Black |
Activity: |
Automotive |
Product Type: |
Dash Cams |
Specification
| Channel | 3CH |
| Highlights | Full HD + Full HD + Full HD (Front + Rear + Interior), Cloud, Wi-Fi, Triple Sony Sensors, External GPS and LTE Module |
| Rear Camera Connection | Coaxial cable |
| Memory Capacity | 64GB microSD card |
| Recording Modes | Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected) *When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode |
| Parking Mode | Yes (hardwiring cable included) |
| Parking Mode Event Voice Notifications | Yes |
| Imaging Sensor | Front: Sony STARVIS CMOS Sensor (Approx. 2.1 M Pixel) Rear: Sony STARVIS CMOS Sensor (Approx. 2.1 M Pixel) Interior: Sony STARVIS CMOS Sensor (Approx. 2.1 M Pixel) |
| Viewing Angle | Front: Diagonal 139°, Horizontal 116°, Vertical 61° Rear Truck: Diagonal 116°, Horizontal 97°, Vertical 51° Interior IR: Diagonal 180°, Horizontal 150°, Vertical 93° |
| Resolution Frame Rate | Front – Rear Truck – Interior IR: Full HD (1920x1080) @ 60 fps – Full HD (1920x1080) @ 30 fps – Full HD (1920×1080) @ 30 fps *Frame rate may vary during Wi-Fi streaming |
| Video Codec | H.264 (AVC) |
| Image Quality and Bitrate Front/Rear | Front / Rear / Interior Highest(Extreme): 16 + 10 + 10 Mbps Highest: 12 + 10 + 10 Mbps High: 10 + 8 + 8 Mbps Normal: 8 + 6 + 6 Mbps |
| Format Free | Yes (Adaptive) |
| Event File Overwrite Protection | Yes (up to 51) |
| SD Card Failure Alert | Yes |
| Scheduled Reboot | Yes |
| Video File Extension | MP4 |
| Wi-Fi | Built-in (802.11 b.g.n) |
| Cloud Compatible | Yes |
| GPS | External (Dual Band: GPS, GLONASS) |
| Microphone | Built-in |
| Speaker | Built-in |
| Impact Sensor | 3-Axis Acceleration Sensor |
| LED Indicators | Main Unit: Recording LED, GPS LED, BT/Wi-Fi/LTE LED Front: Front & Rear Security LED Rear Truck: none Interior IR: Front&Rear Security LED EB-1: Operating/Battery low voltage LED |
| Rear Camera IR Illumination | Rear Truck: 940nm (6 Infrared (IR) LEDS) Interior IR: 940nm (2 Infrared (IR) LEDS) |
| Button | EB-1 button: Press the button – manual recording |
| Operation Temperature | -20°C – 70°C (-4°F - 158°F) |
| Storage Temperature | -20°C – 80°C (-4°F – 176°F) |
| High Temp Cut Off | Approx. 80 °C (176 °F) |
| Backup Battery | Built-in supercapacitor |
| Input Power | DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND/Yellow: B+/Red: ACC) |
| Power Consumption Hour | Normal Mode (GPS On / 3CH): Avg. 730mA / 12V Parking Mode (GPS Off / 3CH): Avg. 610mA / 12V * Approx. 40mA increase in current when Interior Camera IR LEDs are ON * Approx. 60mA increase in current when Rear Truck Camera IR LEDs are ON * Actual power consumption may vary depending on use conditions and environment |
| Certifications | Front (with Main unit & EB-1): FCC, IC, CE, UKCA, RCM, Telec, WEEE, RoHS Rear Truck & Interior IR: KC, FCC, IC, CE, UKCA, RCM, WEEE, RoHS |
| Software | BlackVue Viewer: Windows 7 or higher, Mac Sierra OS X (10.12) or higher BlackVue Web Viewer: Chrome 71 or higher, Safari 13.0 or higher |
| Application | Android 8.0 or higher, iOS 13.0 or higher |
| Others | Adaptive Format Free File Management System Advanced Driver Assistance System LDWS (Lane Departure Warning System) FVSA (Forward Vehicle Start Alarm) |
| Bluetooth | Built-in (V2.1+EDR/4.2) |
| LTE | External (optional) |
| Approximate Dimensions | |
| Main Unit | Height: 1.3" Width: 4" Length: 5.12" |
| Front | Height: 1.34" Width: 1.35" Length: 2.46" |
| Rear Truck | Height: 1.42" Width: 2.23" Length: 2.77" |
| Interior IR | Height: 1.26" Width: 1.26" Length: 2.5" |
| Wireless Button | Height: 0.57" Width: 1.65" Length: 1.78" |
| Approximate Weight | Main Unit: 0.46 lb Front: 0.09 lb Rear: 0.34 lb Interior IR: 0.07 lb Wireless Button: 0.05 lb |
