Description
Features of BLACKVUE DR970X Cloud DashCam DR970X-Box-2CH-IR-Plus-64
- 4K UHD Front and Full HD Interior Dual-Channel Cloud Dashcam and Secure Recording Box unit Front camera's ultra-wide 146-degree angle takes full advantage of the 4K UHD
- Front camera: 8.2 megapixels STARVIS2 CMOS sensor recording in 4K Ultra High Definition (3840x2160) at 30FPS
- Interior camera: 2.1 megapixels STARVIS recording in Full HD (1920x1080) at 30FPS
- Built-in stealth: Unlike conventional dash cams, DR 970X Box-2CH Plus features the "Box" seperate recording unit which contains videos can be stowed away in a glove compartment for maximum stealth and security
- Seamless Pairing with the BlackVue App
- Built-in Wi-Fi, GPS and Optional LTE *DR970X Box-2CH IR Plus is compatible with CM100GLTE module
- Native Parking Mode with built-in voltage monitor to protect your vehicle battery, Voltage cutoff and timer can be set in the BlackVue App (hardwiring cable included)
- Cloud Dashcam-Hassle Free Blackvue Cloud connectivity *Optional CM100G LTE module (optional) provides easy 4G LTE connectivity to enable BlackVue Cloud features
Product Info for BLACKVUE DR970X Cloud DashCam DR970X-Box-2CH-IR-Plus-64

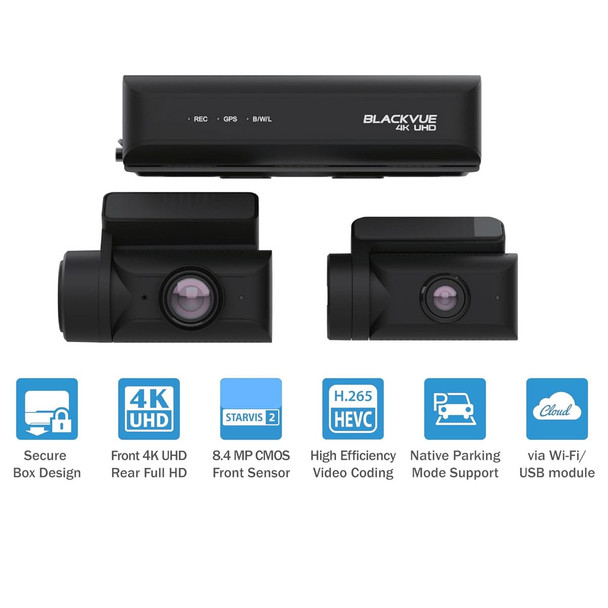

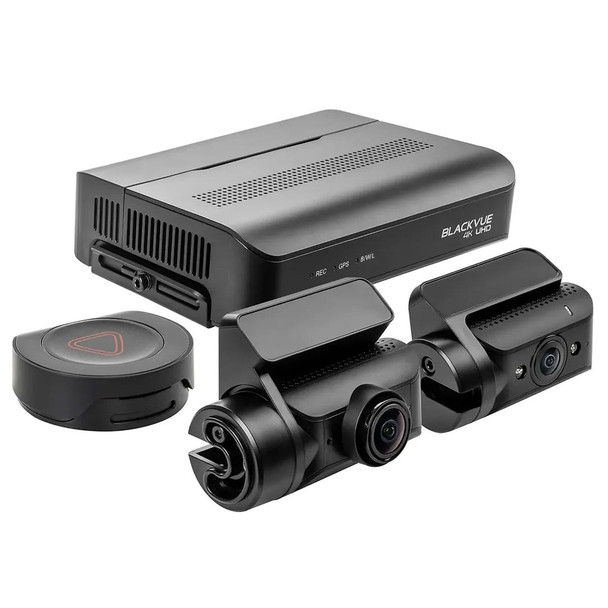

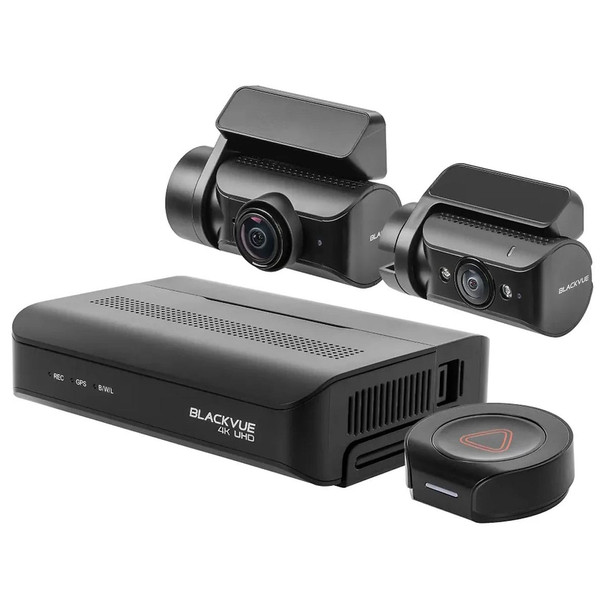

Introducing the BLACKVUE DR970X Box-2CH IR Plus 64GB Cloud Dash Cam, BlackVue's latest addition to its flagship 4K DR970X lineup, featuring a separate, lock-protected "box" designed for stealth and security, similar to an airplane's black box. This setup, with FRONT and INTERIOR cameras connected via coaxial cables, offers nearly 360-degree coverage around your vehicle, making it an ideal choice for parents of teen drivers, company cars, and daily commuters.

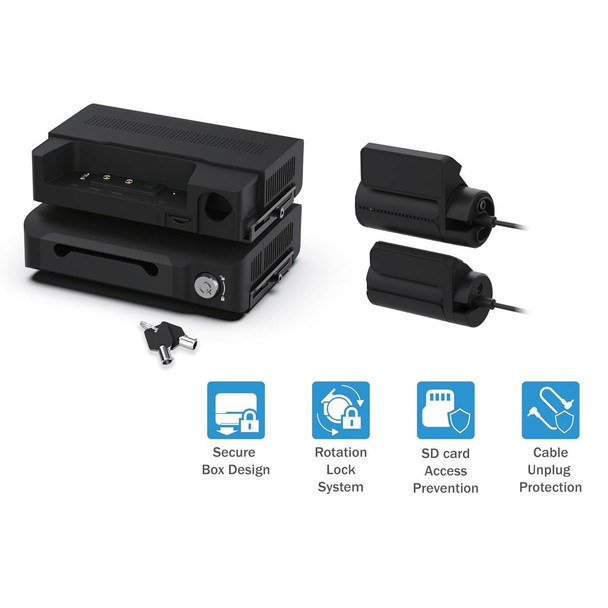

While most dash cams, including the DR970X series, house the recording unit in the front camera itself, the BOX series has its recording unit within a secure, lockable box for unmatched stealth and protection. Designed to be as discreet as an aircraft's black box, it can be easily hidden in your car's glove compartment or beneath a seat, providing ultimate security without drawing attention. The setup includes both front and interior cameras connected through coaxial cables, emphasizing a design that prioritizes both invisibility and safety to ensure your vehicle is thoroughly monitored.
The DR970X-BOX-2CH-IR-PLUS is at the forefront of BlackVue's dash cam technology, featuring the new Sony STARVIS 2 sensor and 1.7 aperture lens for unparalleled 4K video quality. This sensor captures every detail with precision, making both low light and bright conditions appear crystal clear and well-balanced in your recordings. But the innovation doesn't stop there; the PLUS series is equipped with an array of sophisticated features like parking surveillance mode, effortless smartphone app integration, LTE cloud connectivity, and built-in 5GHz Wi-Fi, GPS, and Bluetooth for a seamless and convenient user experience. Its adaptable design allows you to swap the rear camera for an interior one, enhancing its utility without the need for additional purchases.
With its comprehensive FRONT + INTERIOR dual channel configuration, the DR970X-BOX-2CH-IR-PLUS ensures that every angle is covered, capturing every moment on the road or while parked. It's an ideal solution for anyone looking to safeguard their vehicle with a high-quality dash cam, from parents of teenage drivers to company car operators, rideshares, and everyday commuters. Experience a new standard of security, exceptional recording clarity, and user-centric functionality, all designed to offer you peace of mind on the move.
GritrOutdoors is an authorized Blackvue dealer
Details
Model: |
DR970X Box-2CH IR Plus 64GB |
Color: |
Black |
Activity: |
Automotive |
Product Type: |
Dash Cams |
Specification
Channel | 2CH |
Highlights | 4K UHD (Front) + Full HD (Interior), 2.4-5GHz Wi-Fi, Cloud, External LTE Module (Optional) |
Color/Size/Weight | Main unit: Black / Length 130.0 mm x Width 101.0 mm x Height 33.0 mm / 209 g Front: Black / Length 77.5mm x Width 41.9mm x Height 55.3mm / 68 g Interior IR: Black / Length 63.5 mm x Width 32.0 mm x Height 32.0 mm / 34 g |
Memory | microSD Card (64 GB / 128 GB / 256 GB/ 512GB) |
Recording Modes | Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected) * When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode |
Parking Mode | Yes (with 3-wire hardwiring cable - included) |
Parking Mode Event Voice Notifications | Yes |
Camera | Front: STARVIS 2 CMOS Sensor (Approx. 8.2 M Pixel) Interior: STARVIS CMOS Sensor (Approx. 2.1 M Pixel) |
Viewing Angle | Front: Diagonal 146°, Horizontal 125°, Vertical 68° Interior IR: Diagonal 180°, Horizontal 150°, Vertical 93° |
Resolution/Frame Rate | Front: 4K (3840 x 2160) @ 30 fps Interior IR: Full HD (1920 x 1080) @ 30 fps * Frame rate may vary during Wi-Fi streaming |
Video Codec | H.265 (HEVC) /H.264 (AVC) |
Image Quality (MB/s) | Highest (Extreme): 60+10 Mbps Highest: 25+10 Mbps High: 12+8 Mbps Normal: 8+6 Mbps |
Format Free | Yes (Adaptive) |
Event File Overwrite Protection | Yes (up to 50) |
Video Compression Mode | MP4 |
SD Card Failure Alert | Yes |
Scheduled Reboot | Yes |
Video File Extension | MP4 |
Bluetooth | Built-in (V2.1+EDR/4.2) |
Wi-Fi | Built-in (802.11 b.g.n) |
Cloud Compatible | Yes |
LTE | Optional External Module |
GPS | Built-in (Dual Band: GPS, GLONASS) |
Microphone | Built-in |
Speaker (Voice Guidance) | Built-in |
Impact Sensor | 3-Axis Acceleration Sensor |
LED Indicators | Main unit : Recording LED, GPS LED, BT/Wi-Fi/LTE LED Front : Front & Rear Security LED Interior IR : Front & Rear Security LED |
Interior Camera IR Illumination | Interior IR : 940nm (2 Infrared (IR) LEDS) |
Backup Battery | Built-in supercapacitor |
Input Power | DC 12V-24V (3 pole DC Plug(Ø3.5 x Ø1.1) to Wires (Black: GND / Yellow: B+ / Red: ACC)) |
Power Consumption | Normal Mode (GPS On / 2CH) : Avg. 660mA / 12V Parking Mode (GPS Off / 2CH) : Avg. 520mA / 12V * Approx. 40mA increase in current when Interior Camera IR LEDs are ON * Actual power consumption may vary depending on use conditions and environment |
Operation Temperature | -20 °C - 70 °C (-4 °F - 158 °F) |
Storage Temperature | -20 °C - 80 °C (-4 °F - 176 °F) |
High Temperature Cut-Off | Approx. 80 °C (176 °F) |
Certifications | Front (with Main unit & EB-1) : KC, FCC, IC, CE, UKCA, RCM, Telec, WEEE, RoHS Interior IR : FCC, ISED, CE, UKCA, RCM, RoHS, WEEE, KC |
Software | BlackVue Application * Android 8.0 or higher, iOS 13.0 or higher BlackVue Viewer * Windows 7 or higher, Mac Sierra OS X (10.12) or higher BlackVue Web Viewer * Chrome 71 or higher, Safari 13.0 or higher |
Other Features | Adaptive Format Free File Management System, Advanced Driver Assistance System, LDWS (Lane Departure Warning System), FVSA (Forward Vehicle Start Alarm) |
