Description
Features of EVOLUTION GUN WORKS Savage Round Back Scope Mount 41012

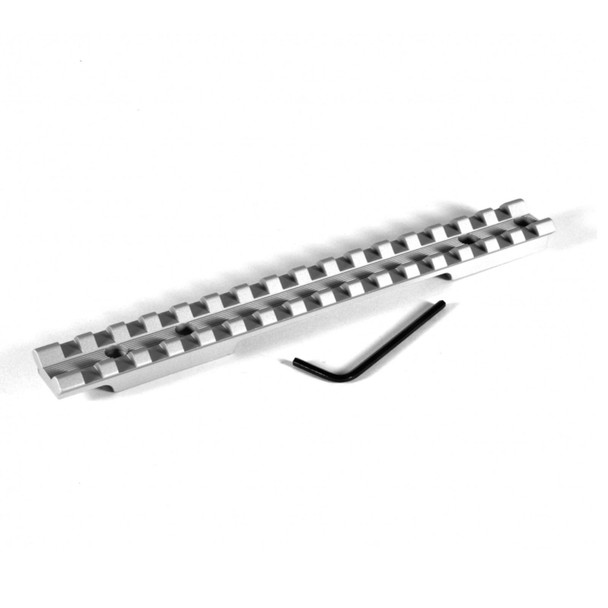

- One Piece Picatinny Rail
- Machined from Domestic 6061 T6 Extruded Aluminum

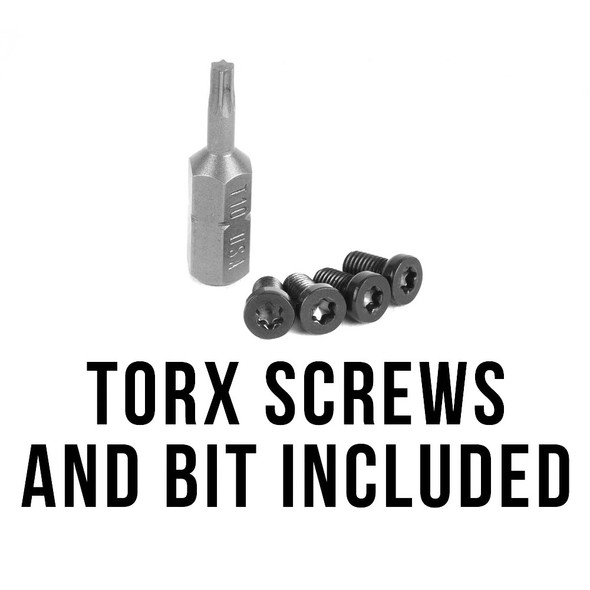

- Torx Screws and Bits Included
Product Info for EVOLUTION GUN WORKS Savage Round Back Scope Mount 41012
The EVOLUTION GUN WORKS Savage Round Back Short Action Picatinny Rail Scope Mount will work with any short action round back Savage rifle with an ejection port. It is also compatible with the Stevens short actions.
The round back on this mount will accommodate rounded receivers, and guns that have an accu-trigger. This mount comes standard with a bevel on both sides making it ambidextrous.
Picatinny cross slots run the full length of the rail, which gives the shooter flexibility when mounting scope rings and other accessories. The channel in the center reduces the overall mass of the mount. Also, in many cases, it will not obstruct usage of factory iron sights. The EGW's one-piece scope mounts are the obvious choice for hunters and tactical shooters alike.
Installation: Evolution Gun Works recommend 20 inch lbs of torque and a drip of blue loctite.
Rifles requiring #8 screws (please check your individual rifle to be sure):
Savage Model 10/110 BA Stealth
Savage Model 10/110 Stealth Evolution
Savage Model 10 GRS
Savage Model 110 Ridge Warrior
Savage Model 110 Scout
Savage Model 110 Tactical
Savage Model 110 Tactical Desert
Savage Model 110 Tactical LH
Savage Model 110 Timberline
Savage Model 110 Ultralite
Savage Model 110 Wolverine
Christensen Arms Ridgeline
GritrOutdoors is an authorized Evolution Gun Works dealer
Details
Color: |
Silver |
Finish: |
Anodized |
Length: |
6.670in |
Activity: |
Shooting |
Base Fit: |
Picatinny |
Firearm Fit: |
Savage Model 10, 11, 12, 14, 16, 110, Stevens Model 200 |
Product Type: |
Scope Mounts |
Specification
| Fits | Savage Model 10 with Accu-Trigger Short Action Round Rear Receiver Savage Model 11 with Accu-Trigger Short Action Round Rear Receiver Savage Model 12 with Accu-Trigger Short Action Round Rear Receiver Savage Model 14 with Accu-Trigger Short Action Round Rear Receiver Savage Model 16 with Accu-Trigger Short Action Round Rear Receiver Savage Model 110 with Accu-Trigger Short Action Round Rear Receiver Stevens Model 200 Short Action Round Rear Receiver |
| Material | 6061 Aluminum |
| Scope Mount Color | Silver Anodized Type II |
| Minute Of Angle (MOA) | 20 MOA |
| Action Length | Short Action |

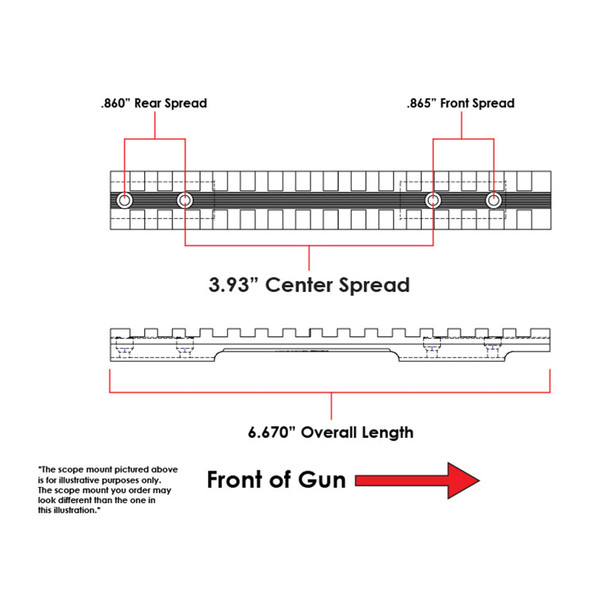

| Center Spread, in | 3.930" |
| Overall Length, in | 6.670" |
| Height, in | .4" (Top of Receiver to Top of Picatinny) |
| Weight, oz | 2 |
