Description
Features of TRIJICON ACOG BDC Red Chevron Riflescope TA11E
- Battery free tritium/fiber optic illumination provides brilliant aiming point in any lighting
- Ruggedized forged housing delivers combat proven durability and reliability
- Fixed-power design allows for minimal moving parts to create a nearly indestructible sighting system
- Bindon Aiming Concept (BAC) features both eyes open shooting for improved situational awareness
- Quality of the glass and multi-coated lenses maximize light-gathering capabilities and clear field of view with zero distortion
- Features a bullet drop compensating and target-ranging reticle for decisive aiming
- Combat Proven - No other magnified optic has been used more in combat than the ACOG
- Shock-Resistant - Proven to withstand recoil from a .22LR to a .50BMG and everything in between; easily passes U.S. Military drop test requirements
- Exceptional waterproof performance that exceeds military standards
- Optic is tested to withstand and perform in extreme cold and heat with dry-nitrogen filled housing that mitigates fogging
Product Info for TRIJICON ACOG BDC Red Chevron Riflescope TA11E

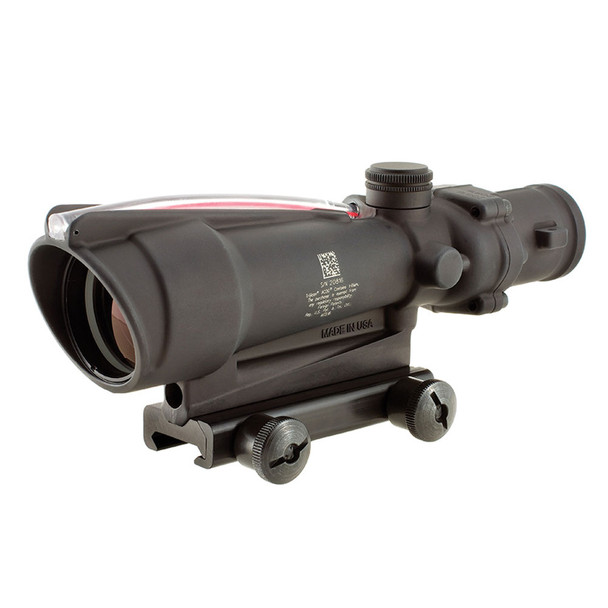

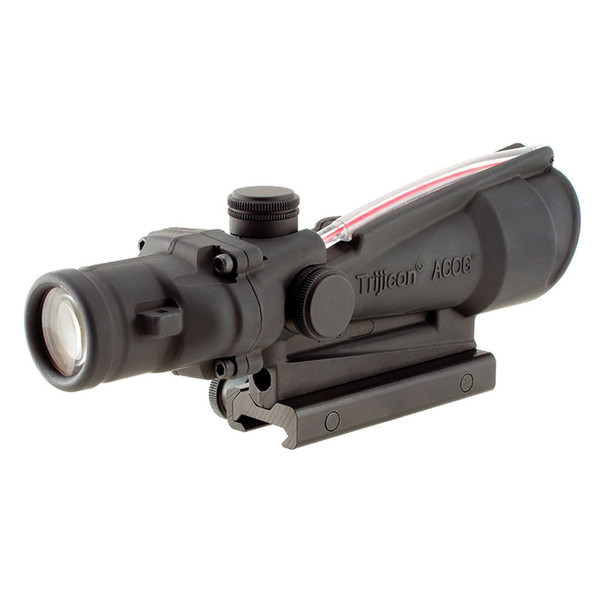

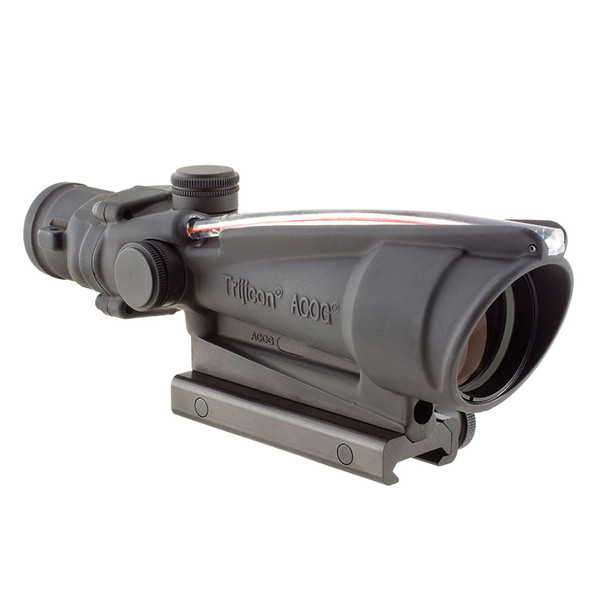

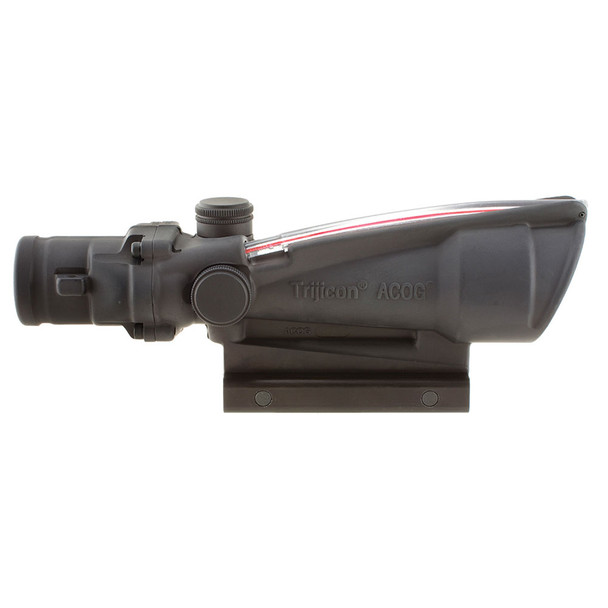

The Trijicon ACOG 3.5x35 Riflescope is a fixed power, compact riflescope with dual-illuminated reticles that give you lightning-quick target acquisition and superb optical clarity in most any light.
This model comes with a Red Chevron BAC Reticle. The ranging reticle is calibrated for 7.62 (.308 cal) flat-top rifles to 800 meters. Includes Flat Top Adapter. The chevron reticle is designed to be zeroed using the tip at 100 meters. The width of the chevron at the base is 5.53 MOA which is at 19" at 300 meters. This allows range estimation for silhouette targets.
GritrOutdoors is an authorized Trijicon dealer
Details
Activity: |
Shooting |
Base Fit: |
Flattop Thumbscrew |
Color: |
Black |
Finish: |
Black |
Magnification: |
3.5x |
Model: |
ACOG |
Objective Size: |
35mm |
Product Type: |
Riflescopes |
Reticle Size: |
Chevron |
Department: |
Optics |
Specification
Magnification | 3.5x |
Objective Lens Diameter, mm | 35 |
Field of View (FOV) @ 100yds, ft | 28.9 |
Field of View, deg | 5.5° |
Eye Relief, in | 2.4" |
Exit Pupil, in | 0.39" |
Caliber | .308 / 7.62 |
Reticle Pattern | Chevron |
Illumination Source | Fiber Optics and Tritium |
Day Reticle Color | Red |
Night Reticle Color | Red |
Adjustment @ 100 yds, in | 3 clicks |
Housing Material | Forged Aluminum |
Finish | Matte Black |
Mount | Flattop Thumbscrew Mount (TA51) |
Bullet Drop Compensating (BDC) | Yes |
Bindon Aiming Concept (BAC) | Yes |
Dimensions (L x W x H), in | 8" x 2.1" x 2.9" |
Weight, oz | 14 |
In Box | 3.5x35 Scopecoat Thumbscrew Flattop Adapter LENSPEN Lanyard Assembly for Adjuster Caps Trijicon Logo Sticker ACOG BAC Manual Warranty Card |
