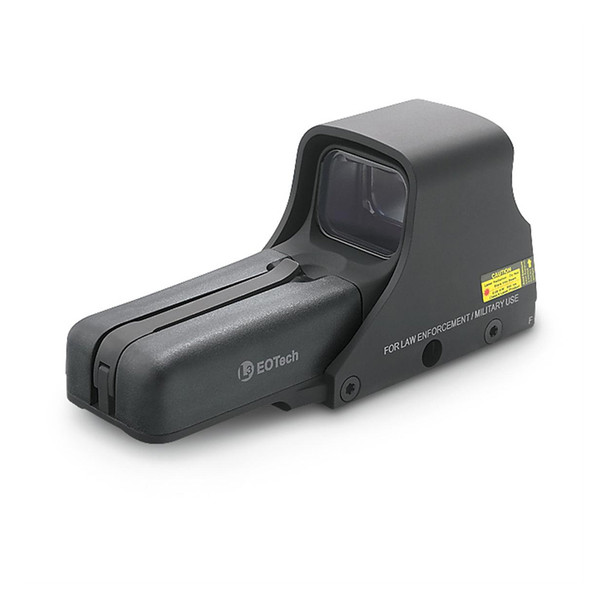

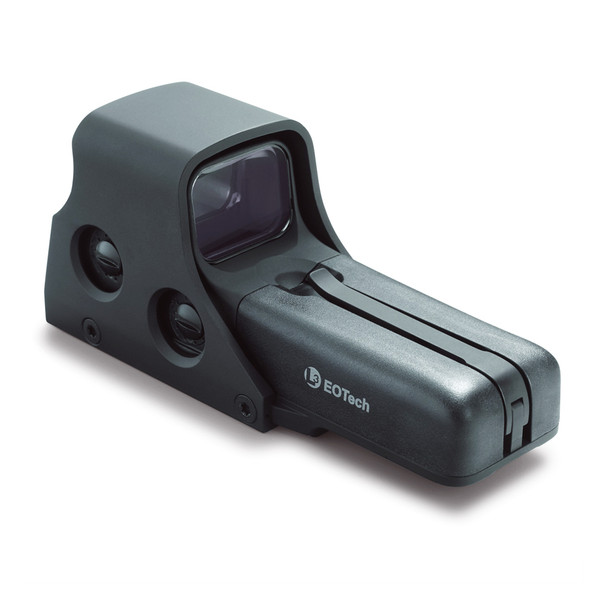

EOTECH 552 Four 1 MOA Dots with Crosshair Night Vision Compatible Holographic Sight (552.XR308)
Features of Eotech 552 Holographic Sight 552.XR308
- Holographic sight designed for close-in combat speed and versatility
- Uses laser light to illuminate holographic red reticle projected on target plane
- Improves target acquisition, boosts accuracy, and increases control
- Rugged aluminum hood assembly; knobbed, tool-free mounting bolt
- Requires 2 AA batteries; supports 1-inch Picatinny or Weaver rails
Product Info for Eotech 552 Holographic Sight 552.XR308
Standardized by the DEA, ATF, and FBI SWAT, the EOTECH 552 Holographic Weapon Sight, Ballistic .308 Reticle, NV Compatible, AA Battery (552.XR308) is by far the most popular HWS model.
This NV compatible, AA battery model is the sight of choice by military units like Stryker Brigade, 10th Mountain, and 3rd Infantry. It is battle proven to withstand the abuse that any harsh environment, high powered weapon platform, or military mission can dish out.
The Revision F family now features exteded Battery Life. Through an extensive research and development effort, EOTech's team of engineers has optimized the holographic fabrication process to dramatically improve the optical efficiency of the Holo Weapon Sight. The result is 2x the battery life compared to previously published EOTech statistics.
In addition EOTech's Revision F features enhanced electronic circuitry which allows the brightness adjustment range to expand by a factor of 20x !! Now, the impressive low light capabilities of the Holographic Sight are complimented with a reticle that is 2x brighter at the highest setting. Already recognized as the brightest sight in today's military market, the EOTEch's Holo Weapon Sight further eliminates any concern of reticle washout in desert or artic conditions.

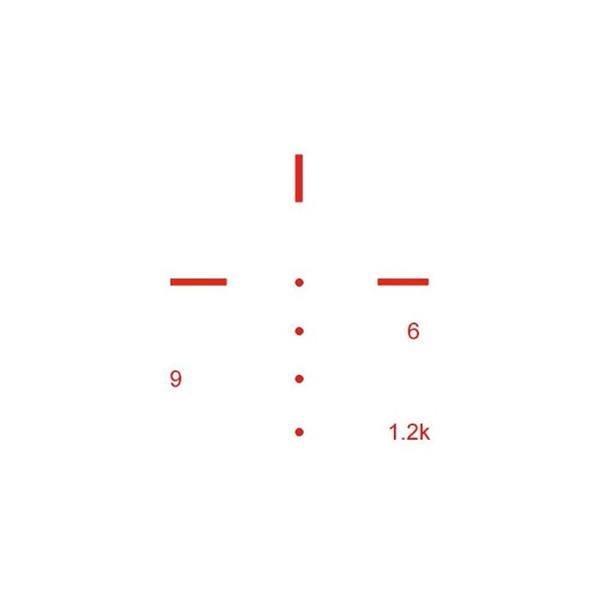

The EOTech 552 Holographic Weapon Sight with Ballistic .308 reticle provides a multi purpose image that is calibrated to the specific trajectory of the M240. The center dot is used for 0-300 meters. Three additional calibrated aiming dots are for 600m, 900m and 1.2km. No matter what .308 cal platform you own, the 552.XR308 can take your speed and accuracy gains to the next level. In addition to the M240 machine gun, the sight works with other .308 platforms such as Remington 700s
The 552 HWS uses laser light to illuminate a Eotech holosight reticle pattern embedded in the heads-up display window and forms a virtual image of a reticle pattern. The shooter looks through the heads-up display window and sees a bright red image of a reticle pattern projected onto the target plane. There is absolutely no light projected onto the target plane. This model has no magnification.
The 552 Holographic Weapon Sight is equipped with mounting hardware to attach to a standard 1" dovetail or Picatinny style rail. To achieve the best results and accuracy, the HWS must be mounted properly.
WARNING: This Holographic Weapon Sight is controlled under the U.S. International Traffic in Arms Regulations (ITAR) and may not be exported without proper authorization by the U.S. Department of State.
GritrOutdoors is an authorized Eotech dealer
|Size (L x W x H), in||5.6" x 2" x 2.5"|
|Water Resistant||Submersible to 33 ft (10m)|
|Sealing||Fog resistant internal optics|
|Adjustment (per Click), in @ 100yds||1/2" (0.5 MOA)|
|Adjustment Range||+/- 40 MOA travel|
|Mount||1" Weaver or MIL-STD 1913 rail|
|Optical Surfaces||Anti-Reflection coating on external surfaces|
|Window Dimensions, in.||1.20" x 0.85"|
|Front Window Material||Glass 1/8" (3.17mm) thick|
|Rear Window Material||Laminate 3/16" (4.76mm) thick|
|Field of View 100 yds||30 yds (28m) at a 3" eye relief|
|Reticle Options||(4) ballistic aiming dots designed around .308 caliber round|
|Power Source||Two (2) 1.5V x AA batteries
(supports lithium, alkaline, or rechargeable)
|Battery Life||1,000 hrs (lithium) at nominal setting 12;
600 hrs with AA (alkaline)
|Brightness Settings||30 settings with scrolling feature (10 settings for NV use)|
|Auto Battery Check Indicator||Flashing reticle upon start-up|
|Auto Shut-down||At 8 hrs- programmable to 4 hrs|
Four 1 MOA Dots with Crosshair
