Description
Features of AGM NVG-50 NW1 Night Vision Binocular 14NV5122484011
- Redundant dual-tube design
- True stereoscopic vision
- Wide 51-degrees field of view
- Lightweight and compact
- Head or helmet mountable for hands-free operation
- Bright light cut-off
- Ergonomic, simple, easy to operate controls
- Built-in Infrared illuminator and flood lens
- Utilizes single CR123A lithium or AA battery
Product Info for AGM NVG-50 NW1 Night Vision Binocular 14NV5122484011

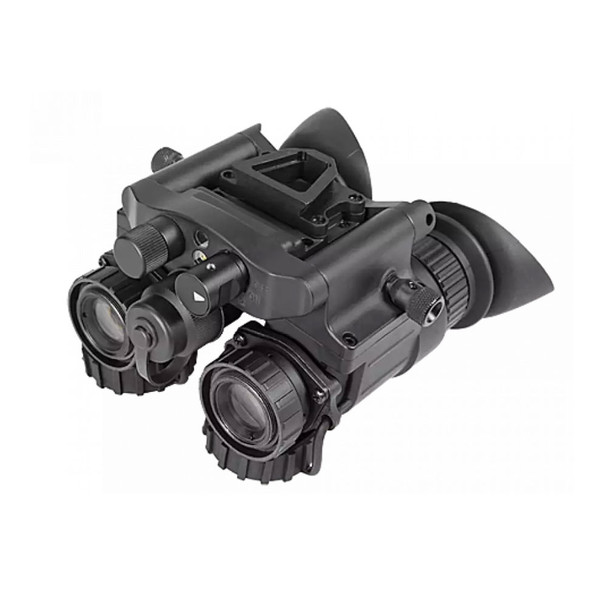

The AGM NVG-50 NW1 Night Vision Goggle/Binocular is a dual-channel night vision system. The NVG-50 uses optics which give it a wider 51° field of view with the tradeoff of shorter eye-relief. The NVG is made of a compact composite housing for durability, and features advanced multi-coated optics. The device can be outfitted with either a Gen 2+ or Gen 3 high-performance image intensifier tube (IIT). The bright light cut-off feature ensures that the high-quality photocathode tube is protected.
The NVG is also equipped with Manual Gain Control, which adjusts the image brightness, providing the highest possible image quality even in changing light conditions. Operating from a single AA alkaline battery or CR123A battery, the NVG can run up to 20 hours. Also equipped with an integral infrared illuminator for reading in the dark.
GritrOutdoors is an authorized AGM Global Vision dealer
Details
Activity: |
Shooting |
Battery Type: |
CR123A |
Color: |
Black |
Magnification: |
1x |
Model: |
NVG-50 NW1 |
Product Type: |
Night Vision Binoculars |
On Sale: |
On Sale Up to 10% off |
SALE: |
On Sale |
Specification
| Image Intensifier Tube | Gen 2 "White Phosphor Level 1" |
| Resolution | 51-64 lp/mm |
| Field of view cleanness by zone | Gen 2 IIT NW1 is the highest resolution and the cleanest offered by AGM. There are practically no visible spots in Zone 1 |
| Magnification | 1x (3x optional) |
| Lens System | 19 mm; F/1.26 |
| FOV | 51° |
| Focus Range | 0.25 m to infinity |
| Eye Relief, mm | 17 |
| Diopter Adjustment | -6 to +2 dpt |
| LED Indicators | Low battery; IR On; Excessive light conditions |
| Infrared Illuminator | Yes |
| Manual Gain Control | Yes |
| Bright Light Cut-Off | Yes |
| Automatic Shut-Off System | Yes |
| Battery Type | One CR123A (3V) or AA (1.5 V) |
| Battery Life (Operating) | Up to 20 hours at 20°C (up to 80 hrs with optional battery pack) |
| Operating Temperature Range | -40° C to +50° C (-40° F to +1220° F) |
| Storage Temperature Range | -50° C to +50° C (-58° F to +122° F) |
| Weight | 1.35 lbs (615 g) |
| Overall Dimensions | 4.4" x 4.6" x 2.9" (112 x 118 x 74 mm) |
| Package Includes | NVG Interface Shoe Bayonet/Horn Interface Shoe Demist Shield (2) Sacrificial Window Packing Box Soft Carrying Case Lens Cloth Battery Adapter User Manual |
