Description
Features of BLACKMAGIC DESIGN Mini Converter SDI CONVMSDIDA4K
- Single Link SD/HD/3G/6G-SDI Input
- Re-Clocked Outputs
- Automatic Input Signal Detection
- Supports ASI Signals
- USB 2.0 Port for Firmware Updates
- 8x Single Link SD/HD/3G/6G-SDI Outputs
- Supports SD, HD, UHD 4K & DCI 4K Signals
- Ancillary Data & Embedded Audio
- Control via DIP Switches or Software
- 12V Universal Power Supply Included
Product Info for BLACKMAGIC DESIGN Mini Converter SDI CONVMSDIDA4K

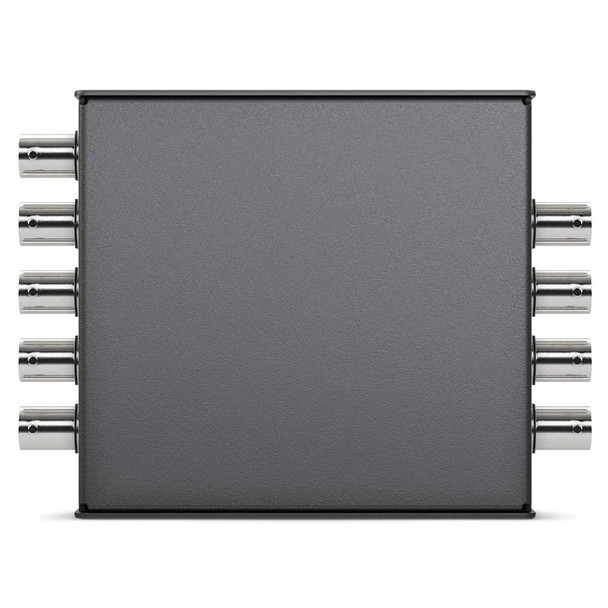

The BLACKMAGIC DESIGN Mini Converter SDI Distribution 4K allows you to distribute a Single Link SD/HD/3G/6G-SDI signal to eight SDI devices simultaneously. It automatically detects the input signal type, re-clocks it, and its eight outputs automatically match the SDI input video format. With a compact form factor and easy-to-use controls, the Mini Converter is ideal for a variety of broadcast, post production, and professional AV applications.
Using 6G-SDI technology, the Mini Converter supports resolutions up to Ultra HD 4K (3840 x 2160) at up to 30 fps and DCI 4K (4096 x 2160) at 24 fps, as well as SD, HD, and 3G-SDI signals. It supports all SDI-related transmission features, including embedded audio, ancillary data, and even handles ASI signals - asynchronous signals that carry multiple compressed programs that can be at varying transmission speeds.
The Mini Converter's settings are controlled using the built-in DIP switches or via USB using the included software for Max OS X or Windows computers. The USB port also enables the firmware to be updated. For powering the device, a 12V power supply is included with international socket adapters.
GritrOutdoors is an authorized Blackmagic Design dealer
Details
Activity: |
Television |
Color: |
Gray |
Product Type: |
Converters |
Specification
| Connections | |
| SDI Video Input | Switchable between SD, HD and 6G‑SDI |
| Reclocking | Yes |
| SDI Video Outputs | 8 outputs automatically match the SDI video input |
| Multi Rate Support | Auto detection of SD, HD or 6G‑SDI |
| Standards | |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080p50, 1080p59.94, 1080p60 |
| 2K Video Standards | 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 |
| 4K Video Standards | 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE ST‑2081, ITU‑R BT.656 and ITU‑R BT.601 |
| SDI Video Rates | SDI video inputs are automatically detected between standard definition and high definition |
| SDI Video Sampling | 4:2:2 and 4:4:4 |
| SDI Audio Sampling | Television standard sample rate of 48 kHz and 24 bit |
| SDI Color Precision | 4:2:2 and 4:4:4 |
| SDI Color Space | YUV and RGB |
| SDI Auto Switching | Automatically detects SD, HD or 6G‑SDI |
| ASI Support | Yes |
| Power Requirements | |
| Power Supply | +12V universal power supply included with international socket adapters for all countries. Cable tie point |
| Power Consumption | 4.80 Watts |
| Operational Voltage Range | 12 ‑ 31V DC |
| Environmental Specifications | |
| Operating temperature | 0° to 40° C (32° to 104° F) |
| Storage temperature | -20° to 45° C (-4° to 113° F) |
| Relative Humidity | 0% to 90% non-condensing |
| Dimensions | 4.80"x 3.63" x 0.90" |
| What's Included | |
| Include | Mini Converter SDI Distribution 4K 12V universal power supply with international socket adapters |
