BLACKMAGIC DESIGN Video Assist HYPERDAVIDA035

Blackmagic Design

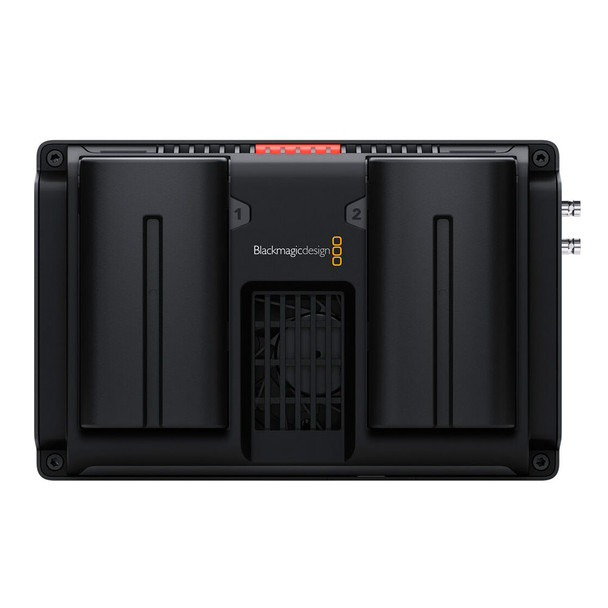

BLACKMAGIC DESIGN Video Assist 5in 3G Recorder Monitor (HYPERD/AVIDA03/5)

(No reviews yet) Write a Review
SKU:
BLMD-HYPERD/AVIDA03/5
UPC:
9338716006407
MPN:
HYPERD/AVIDA03/5
  • BLACKMAGIC DESIGN Video Assist 5in 3G Recorder Monitor (HYPERD/AVIDA03/5)
  • BLACKMAGIC DESIGN Video Assist 5in 3G Recorder Monitor (HYPERD/AVIDA03/5)
  • BLACKMAGIC DESIGN Video Assist 5in 3G Recorder Monitor (HYPERD/AVIDA03/5)
  • BLACKMAGIC DESIGN Video Assist 5in 3G Recorder Monitor (HYPERD/AVIDA03/5)
$525.00

✔ 100% Authentic Product     ✔ FREE Standard Delivery     ✔ 30-Day Easy Returns



Description

Features of BLACKMAGIC DESIGN Video Assist HYPERDAVIDA035

  • 1920 x 1080 5" Touchscreen LCD
  • Records up to 1080p60 Video
  • Stores to 1 x SDXC/SDHC Memory Card
  • Waveform, Vectorscope & Histogram
  • HDMI & 3G-SDI Video Inputs
  • USB Type-C Webcam Video Output
  • Loop-Through Video Outputs
  • Focus Peaking, False Color & Zebra
  • Dual Sony L-Series Type Battery Slots
  • 11 x Display Language Options

Product Info for BLACKMAGIC DESIGN Video Assist HYPERDAVIDA035

The BLACKMAGIC DESIGN Video Assist 5in 3G Recorder Monitor is a portable monitor, a professional recorder, a portable scope and a fantastic camera viewfinder solution! You can also add better quality record codecs and a larger monitor to any SDI or HDMI camera!

The new design has innovations such as 4 built in scopes, enhanced focus assist features, a tally indicator and built in 3D LUTs. The Video Assist 5" 3G support formats up to 1080p60 and the new design also has L-Series batteries for longer life. The Blackmagic Video Assist 5" 3G really is 4 products in one!


GritrOutdoors is an authorized Blackmagic Design dealer

View AllClose

Size Chart/Specs

Connections
SDI Video Inputs 1 x Micro BNC
SDI Video Outputs 1 x Micro BNC
SDI Rates 270Mb, 1.5G, 3G
HDMI Video Inputs 1
HDMI Video Outputs 1
Analog Audio Inputs None, embedded audio only
Analog Audio Outputs 1 x 3.5mm headphone jac
Built in Speaker Mono
Screen Dimensions 5 inch 1920 x 1080
Screen Brightness 300nits
Screen Color P3 wide color gamut
SDI Audio Inputs 16 channels embedded via SDI
SDI Audio Outputs 16 channels embedded via SDI
HDMI Audio Inputs 8 channels embedded via HDMI
HDMI Audio Outputs 8 channels embedded via HDMI
Remote Control None
SD Interface 1 x UHS-I SD slot
Storage Type SDXC UHS-I and SDHC UHS-I SD cards
Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SD cards
Computer Interface 1 x USB Type‑C for webcam out, initial setup,
software updates and Video Assist Utility software control
SDI Video Standards
SD Video Standards 525i59.94 NTSC, 625i50 PAL
HD Video Standards 720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M
SDI Metadata Support HD RP188
Audio Sampling Television standard sample rate of 48 kHz and 24-bit
Video Sampling 4:2:2 YUV
Colar Presicion 10-bit
Color Space REC 601, REC 709
Multiple Rate Support SDI and HDMI switches between 270 Mb/s, 1.5 Gb/s and 3 Gb/s
HDMI Video Standards
SD Video Standards 525i59.94 NTSC, 625i50 PAL
HD Video Standards 720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
HDMI Color Precision 10-bit
Copy Protection HDMI input is unable to capture from copy protected HDMI sources
Always confirm copyright ownership before capture or distribution of content
Media
Media 1 x UHS-I SD for HD recording
Media Type SDXC UHS-I and SDHC UHS-I SD cards
Supported Codecs
Supported Codecs ProRes 422 HQ, ProRes 422, ProRes 422 LT,
ProRes 422 Proxy, DNxHD 220x, DNxHD 145,
DNxHD 45, DNxHD 220x MXF, DNxHD 145 MXF, DNxHD 45 MXF
Control
Recorder Control Integrated capacitive touchscreen LCD with Blackmagic
OS onscreen controls for settings and navigating menus
External Control SDI and HDMI start/stop, timecode run
Power Requirements
Power Sapply 1 x External 12V power supply
Compatible with Sony NP-F style batteries
(batteries not included)
Environmental Specifications
Operating Temperature 0° to 40° C (32° to 104° F)
Storage Temperature -20° to 45° C (-4° to 113° F)
Relative Humidity 0% to 90% non-condensing
Physical Specifications
Dimensions, in 5.83" x 3.54" x 1.44"
Weight, oz 14.46
View AllClose

Additional Information

Activity:
Video Recording
Color:
Black
Model:
Video Assist
Product Type:
Mini Monitors
