Description
Features of BLACKVUE DR770X-2CH 64GB Cloud Dash Cam DR770X-2CH-64
- Full HD 1080p @ 60fps Front & Full HD 1080p @ 30fps Rear
- Sony STARVIS CMOS Sensor (Front & Rear)
- Built-in Wi-Fi, G-Sensor and GPS (GPS+GLONASS)
- Compatible with BlackVue LTE module
- Compatible with BlackVue Cloud Service (Real-time location, Push Notification, etc.)
- Impact Detection / Motion Detection / Time Lapse Recording
- Built-in Low Voltage Cut-Off
- High Temperature Cut-Off
- Event File Overwrite Protection
- Loop Recording & Intelligent Parking Mode
Product Info for BLACKVUE DR770X-2CH 64GB Cloud Dash Cam DR770X-2CH-64

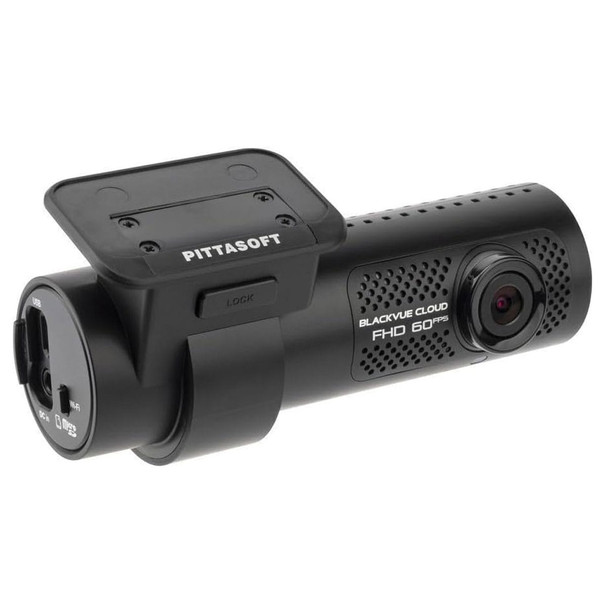

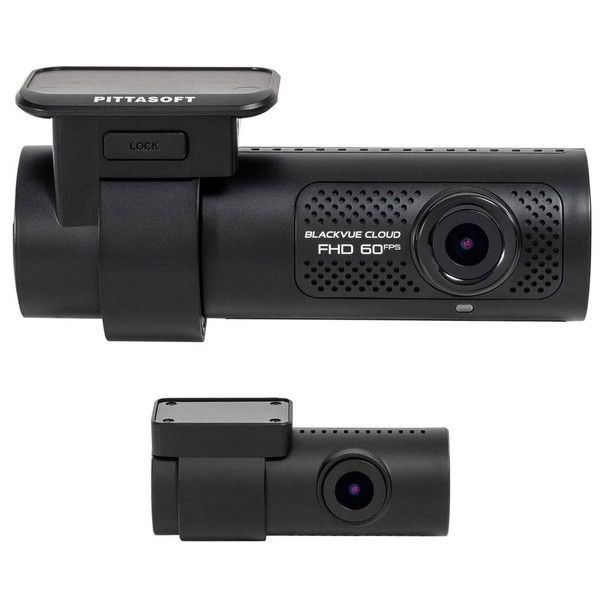

The BLACKVUE DR770X-2CH 64GB Front/Rear Dash Cam is the latest upgrade to the previous DR750X series. With 60 frames-per-second Full HD recording and the ability to capture an unparalleled level of detail day and night, the DR770X is the epitome of a top-tier dash cam.
It comes fully loaded with all the features you could want, including parking surveillance mode, seamless app pairing, optional LTE cloud connectivity, built-in Wi-Fi, GPS, and Bluetooth. This Front and Rear dual channel setup provides a near 360-degree bubble around your vehicle, ensuring incidents while driving and while parked are captured no matter the circumstance. This is a great option for parents of teen drivers, company vehicles, and daily commute vehicles.
GritrOutdoors is an authorized Blackvue dealer
Details
Model: |
DR770X-2CH |
Color: |
Black |
Activity: |
Automotive |
Product Type: |
Dash Cams |
Specification
| Model Name | DR770X-2CH |
| Channel | 2CH |
| Highlights | Full HD (Front + Rear), Cloud, Wi-Fi, GPS, Dual Sony Sensors, External LTE Module |
| Product Dimensions | Front: Black / Width 118.5mm x Height 36mm / 104g Rear: Black / Width 67.4mm x Height 25mm / 25g |
| Rear Camera Connection | Coaxial cable |
| Memory Support | microSD card up to 256GB |
| Recording Modes | Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected) * When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode |
| Parking Mode | Yes (hardwiring cable included) |
| Parking Mode Event Voice Notifications | Yes |
| Imaging Sensor | Front: Sony STARVIS CMOS Sensor (Approx. 2.1 M Pixel) Rear: Sony STARVIS CMOS Sensor (Approx. 2.1 M Pixel) |
| Viewing Angle | Front: Diagonal 139°, Horizontal 116°, Vertical 61° Rear: Diagonal 139°, Horizontal 116°, Vertical 61° |
| Resolution Frame Rate | Front: Full HD (1920 x 1080) @ 60 fps Rear: Full HD (1920 x 1080) @ 30 fps * Frame rate may vary during Wi-Fi streaming |
| Video Codec | H.264 (AVC) |
| Image Quality and Bitrate Front/Rear | Highest (Extreme): 25+10 Mbps Highest: 12+10 Mbps High: 10+8 Mbps Normal: 8+6 Mbps |
| Format Free | Yes (Adaptive) |
| Event File Overwrite Protection | Yes (up to 50) |
| SD Card Failure Alert | Yes |
| Scheduled Reboot | Yes |
| Video File Extension | MP4 |
| Wi-Fi | Built-in (802.11 a.b.g.n.ac) |
| Cloud Compatible | Yes |
| GPS | Built-in (Dual Band: GPS, GLONASS) |
| Microphone | Built-in |
| Speaker | Built-in |
| Impact Sensor | 3-Axis Acceleration Sensor |
| LED Indicators | Front: Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED Rear: Rear Security LED |
| Button | Format Button: Press and hold format button for 5 seconds, and after a beep, release the button. Then, press again and hold for 5 seconds and release the button after a beep to format the microSD card Touch Sensor: Pressing the touch sensor triggers manual recording depending on the firmware settings |
| Operation Temperature | -20°C -80°C (-4°F -176°F) |
| Storage Temperature | -20°C -80°C (-4°F -176°F) |
| High Temp Cut Off | Approx. 80 °C (176 °F) |
| Backup Battery | Built-in supercapacitor |
| Input Power | DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC) |
| Power Consumption Hour | Normal Mode (GPS On/2CH): Avg. 380mA / 12V Parking Mode (GPS Off/2CH): Avg. 300mA / 12V * Actual power consumption may vary depending on use conditions and environment |
| Certifications | Front: FCC, ISED, CE, UKCA, RCM, RoHS, Telec, WEEE, KC Rear: FCC, ISED, CE, UKCA, RCM, RoHS, WEEE, KC |
| Software | BlackVue Viewer * Windows 7 or higher, Mac Sierra OS X (10.12) or higher BlackVue Web Viewer * Chrome 71 or higher, Safari 13.0 or higher |
| Application | BlackVue Application * Android 8.0 or higher, iOS 13.0 or higher |
| Others | Adaptive Format-Free File Management System |
| Bluetooth | Built-in (V2.1+EDR/4.2) |
| LTE | External (Optional) |
| What's included | Front Camera Rear Camera Quick start guide Cable clips (8EA) microSD card microSD card reader Spare mount sticky pads Coaxial Cable (6m) Hardwiring power cable Cigarette lighter power adapter Pry tool |
