Description
Features of EVOLUTION GUN WORKS Docter Sight Mount 49319
- 7075 Aluminum Construction
- Matte Black Hardcoat
- (2) 6-32 Button Head Screws
- (2) 6-32 Flat Head Screws
- (1) 6-48 Torx Head Screw
Product Info for EVOLUTION GUN WORKS Docter Sight Mount 49319

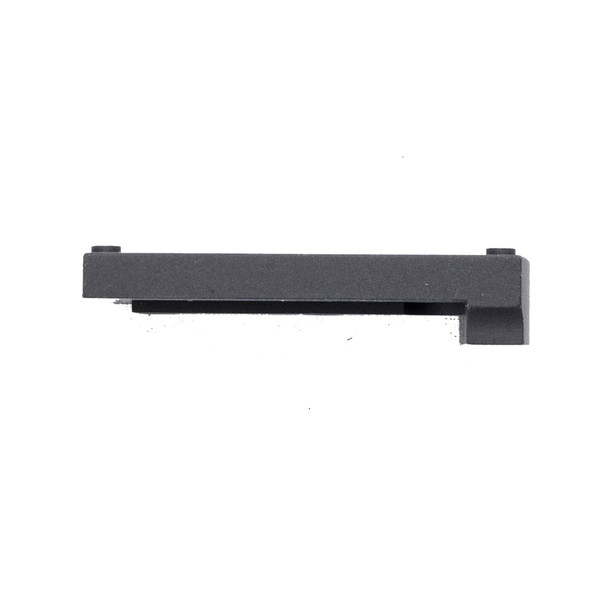

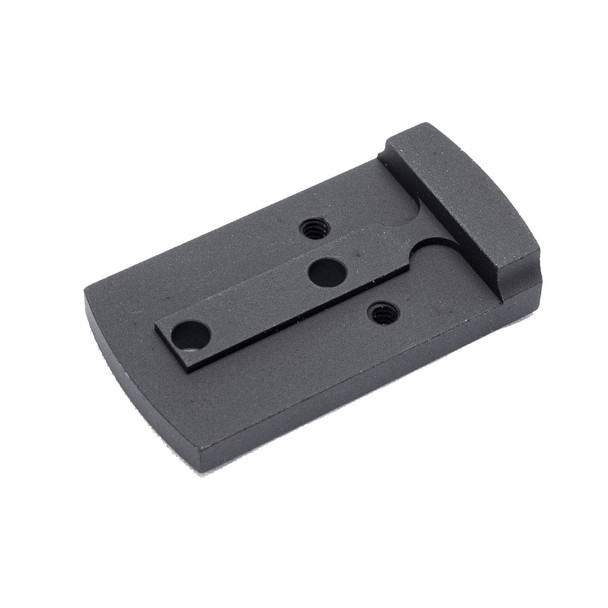

The EVOLUTION GUN WORKS Docter Sight Mount is made of 7075 Aluminum and has Matte Black Hardcoat finish. The red dot sights are meant to be installed from the left to the right (with the muzzle facing forward). The dovetail has a progressive taper to allow for easier install.
Simply remove the rear sight on your gun and replace it with the EGW's mount in order to mount your Vortex Viper/Venom, Burris FastFire, or Docter red-dot sight. You can take the mount off and replace your rear sight at any time. Mounting hardware included.
Installation Instructions:
- Remove the rear sight
- Install the EGW Sight Mount in the dovetail
- Tighten set screw (if applicable)
- Place the red dot sight on the EGW Sight Mount (placing a small piece of paper between the red dot sight and the sight mount will make for easier removal and will keep Loctite off of the red dot sight.)
- Apply blue Loctite to the provided mounting screws
- Torque mounting screws to 15in/lbs
GritrOutdoors is an authorized Evolution Gun Works dealer
Details
Color: |
Black |
Finish: |
Anodized |
Activity: |
Shooting |
Base Fit: |
Dovetail |
Firearm Fit: |
S&W K-Frame, L-Frame, N-Frame, X-Frame |
Product Type: |
Scope Mounts |
Specification
| Fitment | Smith & Wesson K Frame Revolvers Smith & Wesson L Frame Revolvers Smith & Wesson N Frame Revolvers Smith & Wesson X Frame Revolvers |
| Material | 7075 Aluminum |
| Coating | Matte Black Hardcoat |
| Overall Length, in | 1.811" |
| Overall Width, in | .99" |
| Mounting Hardware | (2) 6-32 Button Head Screws, (2) 6-32 Flat Head Screws, (1) 6-48 Torx Head Screw |
| Red Dot Fitment | Vortex Venom / Viper; ADE RD3-001 / RD3-002 / RD3-006 / RD3-009 / RD3-012 / RD3-013 / RD3-015; Burris FastFire 1, 2, 3, 4; Crimson Trace CTS-1200 / CTS-1300; Docter |
