Description
Features of TENTACLE SYNC Track E US Timecode Audio Recorder TR1-US
- 32-bit Float Recording / 24-Bit Recording
- Control Multiple Devices via Bluetooth (iOS and Android)
- Wireless Timecode Sync (Bluetooth) / Jam-Sync via Cable
- Up to 10 hours Operating Time
- General Purpose Lavalier Microphone with Clip and Windjammer included
- 16GB microSD Card included
- US version will have the headphone output deactivated during recording
- Designed and Manufactured in Germany
Product Info for TENTACLE SYNC Track E US Timecode Audio Recorder TR1-US

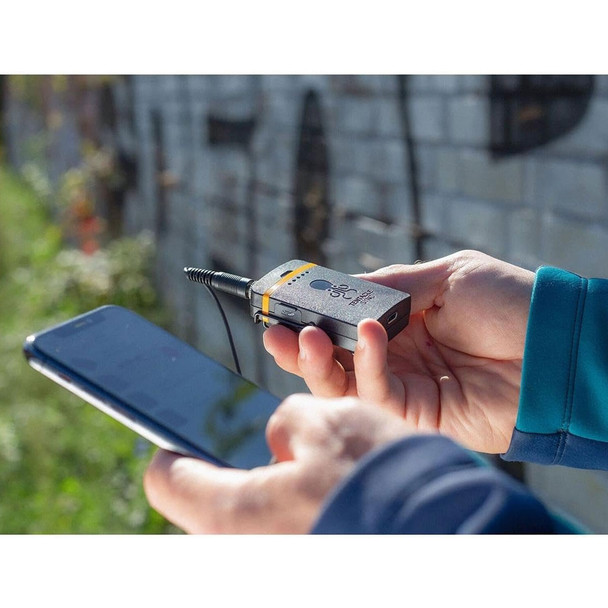

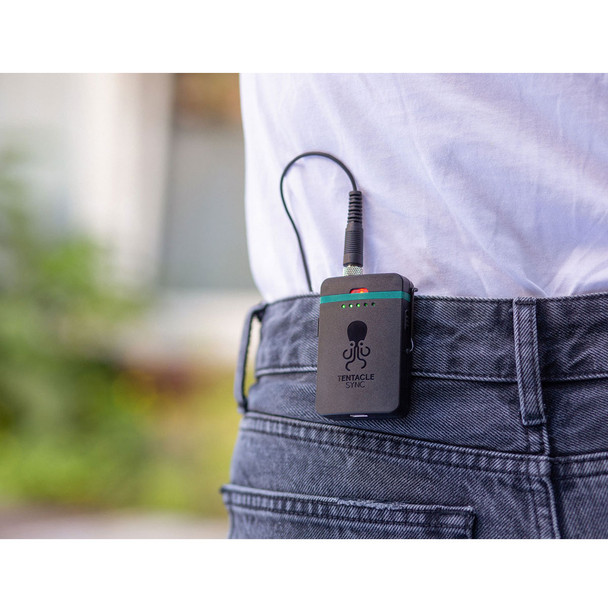

The Track E Timecode Audio Recorder is nearly as small as the Timecode Sync Generator Sync E, so it can easily fit in your pocket for recording on the go. This allows mobile operation for example as a recorder for a clip-on microphone eliminating the need for a radio-link. It offers timecode synchronization over Bluetooth based on the well established Tentacle Sync technology. This means that the Track E will work in environments where regular wireless transmitter fail.
Controllable through the Setup App for iOS or Android, it seamless integrates into the Sync E synchronization network by the push of a button via Bluetooth. But the Track E does not necessarily need a Sync E device to operate - it can easily function as a stand-alone device and can be jam-synced via cable.
In addition to the ability to record with 24-bit depth, Track E also features 32-bit floating point technology for a significantly extended dynamic range. 32 bit floating point also means that no digital clipping will occur, making the Track E a versatile set-and-forget-device that will always deliver high quality audio. With the Track E users can treat audio in a similar way as photographers use the Raw camera photo format - all details can be adjusted in post production, significantly reducing the preparation time before you start shooting.
The Track E uses a changeable SDcard for recording the audio. An input limiter and a high-pass filter guarantee for pristine recording quality. A screwable mini jack connector offers maximum security for connecting microphones. The Track E features plugin power for supporting a wide range of microphones. A free license of Tentacle Sync Studio (Mac) is included with every Track E purchase.
NOTE: All Track E units that are going to an US address, will be an US version. This US version will have the headphone output deactivated during recording.
GritrOutdoors is an authorized Tentacle Sync dealer
Details
Activity: |
Audio Communication |
Color: |
Black |
Model: |
Track E |
Product Type: |
Recorders |
Submodel: |
US Version |
Specification
Recording | |
Recording Tracks | 1 (mono) |
Sampling Rate | 48kHz |
Recording Bit-Depth | 32-bit Float / 24-bit |
File Formats | WAV (BWF) |
Recording Time | 30hrs (24-bit) / 23hrs (32-bit) with 16GB card |
Storage Media | mircoSDHC Card up to 32GB (Recommended Class 10) |
Signal Processing | Low Cut Filter, Limiter (24-bit only) |

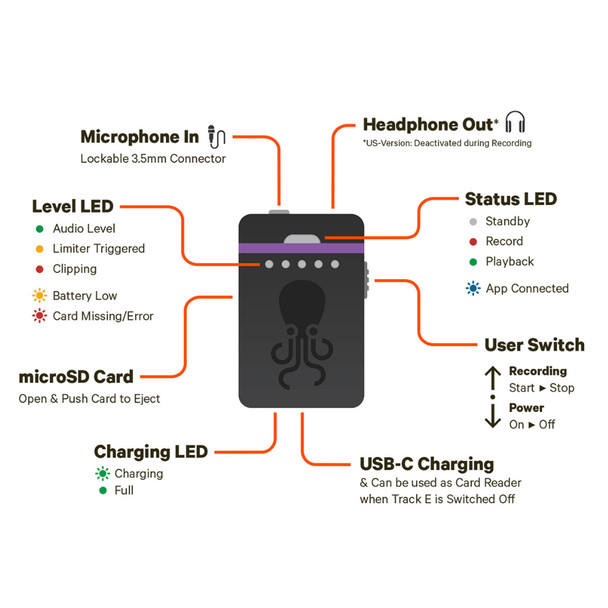

Connectivity | |
Microphone Input | 3.5mm Jack (lockable) |
Microphone Plug-in Power | 5V (switchable) |
Headphone Output* | 3.5mm Jack (dual mono) |
USB Connection | USB-C (USB 2.0) |
USB Modes | Charging, Card Reader, Firmware Update |
Performance | |
Frequency Response | 20Hz - 20kHz |
Gain Range | +6 to +46 dB |
Dynamic Range | 110 dB typ |
THD+N | -85 dB (0.05%) |
Control and Synchronization | |
Bluetooth | 5 (Low Energy) |
Remote Control and Monitoring | Tentacle Setup App (iOS/Android) |
Synchronization | Via Bluetooth or Jam-Sync via cable |
Timecode Input | LTC via Microphone Input |
Timecode Output | N/A |
Frame Rates | SMPTE 12M / 23.98, 24, 25, 29.97, 29.97DF and 30fps |
Power | |
Power Source | Built-in rechargeable Lithium Polymer Battery |
Battery Capacity | 900 mAh |
Battery Operating Time | Up to 10 hours |
Battery Charging Time | max. 2 hours |
Size and Weight | |
Dimensions, in | 1.85" x 2.67" x 0.74" |
Weight, oz | 2.0 |
In Box | |
In Box | 1x Tentacle Sync Track E - Timecode Audio Recorder 1x General Purpose Lavalier Microphone with 3.5mm Lockable Connector Microphone Clip Windjammer (black) Zipper Bag small 1x 16GB microSD Card 1x USB-A to USB-C Cable 1x USB-C to USB-C Cable 1x Belt Clip made of Powder-Coated Stainless Steel in Black 1x Zipper Bag medium 5x Coloured Silicone Bands 1x Software License for Tentacle Sync Studio(macOS) |
* US Version: Headphone out is deactivated during recording.
