Description
Features of AGM Clarion Dual Focus 20mK 50Hz Thermal Imaging Rifle Scope
- Dual focus objective lens
- 12um thermal detector, NETD < 20mK
- Various reticle types and colors
- Ix, 2x, 4x, 8x digital 200m
- On-board video/audio recording and image capture
- Shot Activated Recording (SAR)
- Wi-Fi data transmission
- Stadiametric rangefinder
- 8.5 - 11 hours battery life
- External power supply compatibility

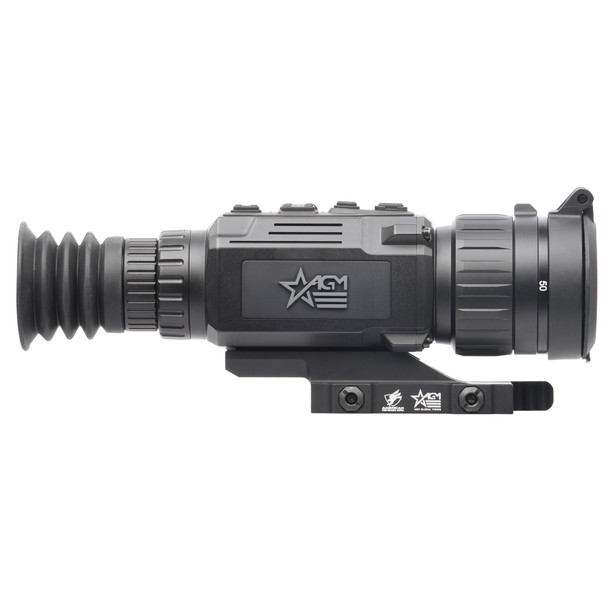

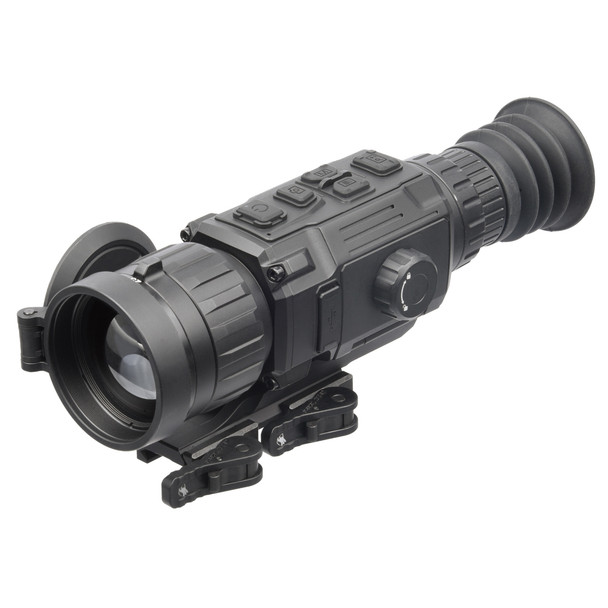

Product Info for AGM Clarion Dual Focus 20mK 50Hz Thermal Imaging Rifle Scope
The Clarion dual focus thermal scope is one of the most technologically advanced thermal scopes in the world. The Clarion scopes were meticulously designed to solve one of the biggest problems many night hunters face, which is in selecting which lens size/sensor configuration will provide the optical base magnification and field of view for each hunter's primary application. Clarion scopes alleviates this concern by providing a dual focusing that has the ability to mechanically alternate between two different internal lens sizes, which alter the base magnification and field of view with no degradation of the image resolution! The Clarion scopes will offer unparalleled flexibility in terms of optical base magnifications, which may change based on the type of animal hunted, or the type of geography in which is being hunted at that time. Also, AGM paired this new design with the most sensitive temperature rating in its class, coming it at a mind-bending sub-20 milkelvin. Although the Clarion offers complete new technology, they didn't cut any corners with any of the design elements that hunters have come to expect from the ACM brand, including, high-quality 384x288 12-micron thermal sensor, removable rechargeable battery, up to 11 hours of continuous battery life on a single charge (2 batteries included), 10 internal reticle options, 5 different customizable zeroing profiles, 10 different brightness and contras! settings, will hotspot capability, built-in recording and image capture storage, AGM Connect app compatibility, 4 different reticle colors, 4 color palettes, 5 image sharpness settings and a high-quality mount which work well with both AR and bolt action shooting platforms.GritrOutdoors is an authorized AGM Global Vision dealer
Details
Color: |
Black |
Activity: |
Hunting, Shooting |
Product Type: |
Thermal Vision Scopes |
Specification
| SKU | CLAR25-384 | CLAR35-640 |
| Dimensions | 241 × 73 × 67 mm (9.5 × 2.9 × 2.6 in) | 254 × 80 × 68 mm (10.0 × 3.1 × 2.7 in) |
| Palettes | Black hot, White hot, Red hot, Fusion | Black hot, White hot, Red hot, Fusion |
| Exit Pupil Diameter | 6 mm | 6 mm |
| Reticle | 10 types, 4 colors, on/off | 10 types, 4 colors, on/off |
| Boresight Adjustment | Digital Controlled | Digital Controlled |
| Distance Measurement | Yes (Stadiametric) | Yes (Stadiametric) |
| Scene Mode | Cold, Warm | Cold, Warm |
| Picture In Picture Mode (PIP) | Yes | Yes |
| Video Recording | Yes | Yes |
| Magnification | 2× - 16× / 4.5× - 36× | 2× - 16× / 3× - 24× |
| Detector type | 12μm VOx Uncooled Focal Plane Array | 12μm VOx Uncooled Focal Plane Array |
| FFC (Flat Field Correction) | Yes | Auto, Manual, External Correction |
| Standby Mode | Yes | Yes |
| Refresh rate | 50 Hz | 50 Hz |
| Resolution | 384 × 288 | 640 × 512 |
| Detection Range (6' object) | 1200 m/yd / 2600 m/yd | 1800 m/yd / 3000 m/yd |
| Lens system | 25 mm; F0.8 / 50 mm; F1.0 | 35 mm; F0.9 / 60 mm; F1.1 |
| NETD | Less than 20 mK (25°C, F# = 1.0) | Less than 20 mK (25°C, F# = 1.0) |
| Protection level | IP67 | IP67 |
| Field of view (H × X) | 10.5° × 7.9° / 5.3° × 4.0° | 12.5° × 10.0° / 7.3° × 5.9° |
| Digital zoom | 1×, 2×, 4×, 8× | 1×, 2×, 4×, 8× |
| Diopter adjustment range | -5 to +5 diopters | -5 to +5 diopters |
| Focusing range | 4 m to infinity / 10 m to infinity | 7 m to infinity / 10 m to infinity |
| Hot Track | Yes | Yes |
| Eye relief | 45 mm | 45 mm |
| Display | 0.39-inch, OLED, 1024×768 | 0.39-inch, OLED, 1024×768 |
| Storage | Built-in EMMC (16 GB) | Built-in EMMC (16 GB) |
| Capture Snapshot | Yes | Yes |
| Battery Type | Replaceable and Rechargeable Li-ion Battery | Replaceable and Rechargeable Li-ion Battery |
| Wi-Fi | Yes | Yes |
| Battery Life (Operating) | ≥ 11 h (25°C, hotspot off) | ≥ 8.5 h (25°C, hotspot off) |
| External power supply | 5 VDC, 2 A, USB Type-C | 5 VDC, 2 A, USB Type-C |
| Weight | 0.75 kg (1.65 lb) | 0.84 kg (1.85 lb) |
| Package Includes | Thermal Imaging Rifle Scope, Mount, Two Rechargeable Battery, Charger, USB Cable, Lens Cloth, Manual, Carrying Case | Thermal Imaging Rifle Scope, Mount, Two Rechargeable Battery, Charger, USB Cable, Lens Cloth, Manual, Carrying Case |
