Description
Features of BLACKMAGIC DESIGN Teranex Mini Converter CONVNTRMABHSDI
- Advanced High-Data Rate Signal Converter
- Two Independent 12G-SDI Outputs
- XLR Connections Switchable to AES/EBU
- Supports Optional LCD Smart Front Panel

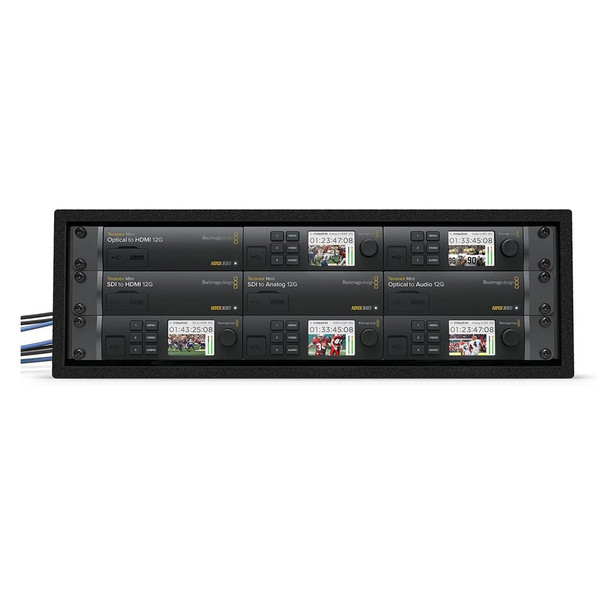

- 3 Units 1U Rack-Mountable in 19" Rack
- Supports Up to 4K DCI 4096x2160p Signals
- Run 4096x2160p 70 ft Using 6G-SDI Cables
- Ethernet Port for Remote Control or PoE
- Intelligent Thermal Heat Dissipation
- Manage Numerous Units from a Mac or PC

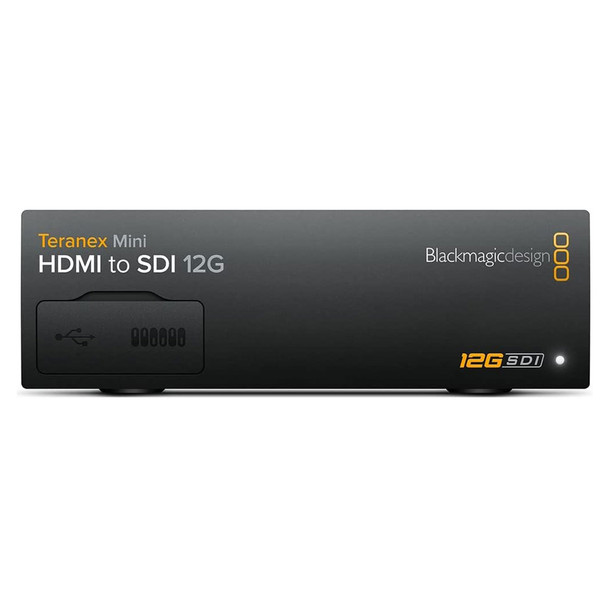

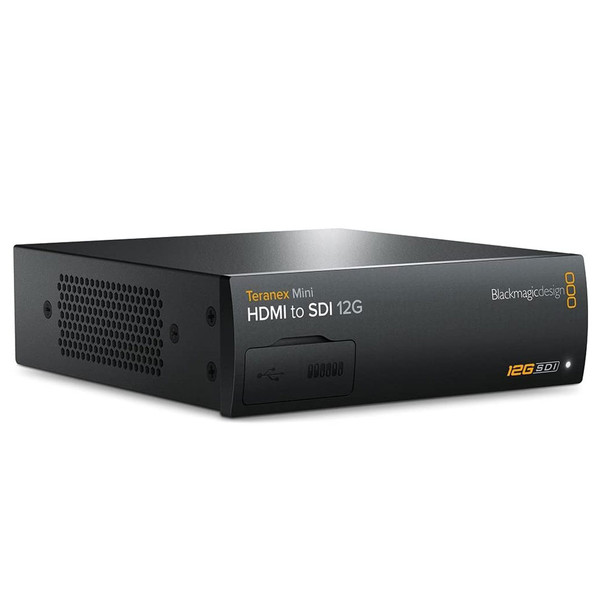

Product Info for BLACKMAGIC DESIGN Teranex Mini Converter CONVNTRMABHSDI
The BLACKMAGIC DESIGN Teranex Mini HDMI to SDI 12G Converter converts from 12G-SDI to HDMI. Supports all video formats including SD, HD, 6G and 12G-SDI rates and includes down converter when working with a HDMI monitor, which will select the best format it can support. De-embed audio to balanced analog or AES/EBU formats and timecode output. Also includes Instant Lock on HDMI output as well as 33 point LUT. Perfect for using HDMI televisions as SDI broadcast monitors and for connecting to video projectors.
GritrOutdoors is an authorized Blackmagic Design dealer
Details
Activity: |
Video Recording |
Color: |
Black |
Model: |
Teranex Mini |
Product Type: |
Video Production & Editing Tools |
On Sale: |
On Sale Up to 10% off |
SALE: |
On Sale |
Specification
| Connections | |
| SDI Video Input | 1 x 12G-SDI SD/HD/2K/4K auto switching |
| SDI Video Outputs | 1 x 12G-SDI loop output |
| HDMI Video Outputs | 1 x HDMI 2.0 type A connector with support for 2160p60 |
| Analog Audio Outputs | 2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for Timecode output |
| Digital Audio Outputs | 4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for Timecode output |
| Embedded Audio Support | 8 channels |
| Multi Rate Support | 270MB, 1.5G, 3G, 6G and 12G |
| Updates and Configuration | USB or Ethernet |
| Reclocking | Yes |
| SDI Input Standards | |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 |
| 2K Video Standards | 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 |
| 4K Video Standards | 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10 |
| SDI Video Rates | SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI |
| SDI Video Sampling | 4:2:2 and 4:4:4 |
| SDI Audio Sampling | Television standard sample rate of 48 kHz and 24-bit |
| SDI Color Precision | 4:2:2 and 4:4:4 |
| SDI Color Space | YUV and RGB. 33 point LUTs can be loaded via Teranex Utility |
| HDMI Output Standards | |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 |
| 4K Video Standards | 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p |
| HDMI Color Space | REC 601, REC 709 |
| HDMI Color Precision | YUV 4:2:2 in HD, 2K and 4K. 33 point LUT can be loaded via the Teranex Utility |
| Software | |
| Software Control | Mac and Windows software upgrade via USB or Ethernet |
| Internal Software Upgrade | Via included updater application |
| Settings Control | |
| Basic Settings Control | Mini Switches, USB and Ethernet via free software utility |
| Optional Front Panel Control | Front mounted Smart Panel with LCD, rotary knob and six settings buttons |
| Power Requirements | |
| Power Supply | 1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input |
| Power Over Ethernet | Can be powered via 48V DC using PoE+ (power over ethernet) |
| Power Consumption | 16 Watts |
| Operational Voltage Range | 100 - 240V AC |
| Environmental Specifications | |
| Operating Temperature | 0° to 40°C (32° to 104°F) |
| Storage Temperature | -20° to 60°C (-4° to 140°F) |
| Relative Humidity | 0% to 90% non‑condensing |
| Dimensions | 5.51" x 1.75" x 6.69" |
| Weight, lbs | 1.28 |
| What's Included | |
| Includes | Teranex Mini SDI to HDMI 12G Welcome wallet with QR code for software download |
